| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/UL/CB/CE/ROHS/ISO9001 |
| Model Number: | BRRJ45H-8L |
| Minimum Order Quantity: | 10 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15-20 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
| Type: | Lightning Arrester Rj45 | Place Of Origin: | CN;ZHE |
|---|---|---|---|
| Body Color: | Black | Interface Form: | RJ45 |
| Transmission Rate: | 100M/1000M | IP Code: | IP20 |
| Warranty: | 5 Years | Shipping Term: | Sea/Air Shipping |
| Material: | Shielded Aluminum Alloy | Degree Of Protection: | IP20 |
| High Light: | Spd ethernet surge Protector device,Rj45 Spd Ethernet Surge Protection Device,Lightning Arrester Ethernet Surge Protection Device |
||

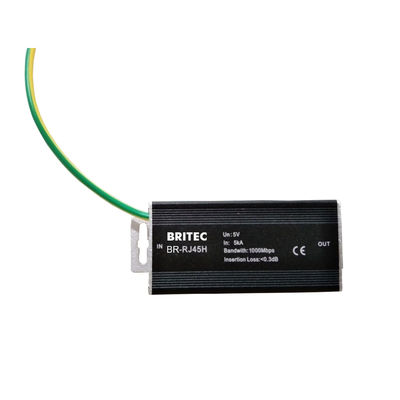

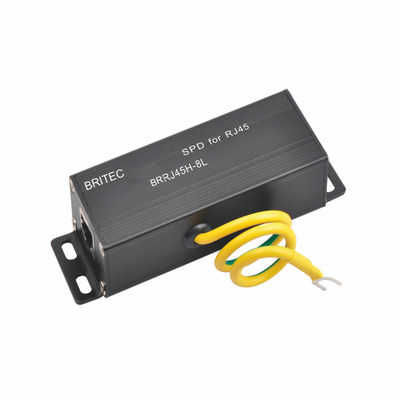

ethernet surge protection devices RJ45 Arrester Ethernet Networking Surge Protector
BRRJ45 series signal surge protector (hereinafter referred to as SPD) is suitable for computer networks (Ethernet, LAN, token ring), servers, routers, HuB, broadband. Its coarse protection, fine protection and fine protection function can meet different anti surge protection intervals. Protect the RJ45 interface to prevent damage to the signal equipment due to an increase in ground potential or a line-induced overvoltage.
Installation and maintained:
Input use to import and output use to export, join between grounded lead and grounded generator of lightning-proof system should be reliable. Add a protector between import and export in series.
Put protect as near to protected equipment as you can.
Protector no needs special care, if it is broken by high voltage or lighting, please replace it by new one.
Ethernet Networking Surge Protector Product Details:
| BRRJ45H-8L | |
| Test standards | IEC61643-21 |
| Nominal voltage Un | 5V |
| Max.continuous operating d.c.voltage Uc | 6V |
| Max.continuous operating a.c.voltage Uc | 4V |
| Nominal current IL | 0.5A |
| C2 Nominal discharge current (8/20us) per line In | 5kA |
| Voltage protection level [line-line] Up | ≤30V |
| Voltage protection level [line-PG] Up | ≤500V |
| Response time [line-line] tA | ≤1ns |
| Response time [line-PG] tA | ≤100ns |
| Operating temperature range Tu | -40℃…+80℃ |
| Connection (input/output) | RJ45 socket 8 line |
| Data rates | 1000 Mbps |
| Insertion Loss | ≤0.3dB |
| Enclosure material | aluminium alloy |
| Degree of protection | IP20 |
Application:
to prevent indirect lightning or direct lightning impact and network over-voltage damage to signal equipment.
Q1:Are you a lightning surge protectors factory or lightning surge protectors trading company?
A1: We are lightning surge protectors manufacturer.
Q2: Warranty and return:
A2:1. Warranty 5 years
2. lightning surge protectors products and accessories have been tested 3 times before ship out.
3. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q3: How can I get some lightning surge protectors samples?
A3: We are honored to offer you lightning surge protectors samples, pls contact our staff and leave detailed contact information.
Q4: Is sample available and free?
A4: Sample is avaible, but the sample cost should be pay by you.The cost of sample will be refund after further order.
Q5:Do you accept customized order?
A5:Yes, we do.
Q6: What's the delievery time?
A6:It usually takes 7-15days after confirming payment, but specific time should be based on the order quantity.
Contact Person: Lucky Zhu
Tel: +8615888436909
