25KA 3P+NPE T1 Class I Surge Protector Type 1 High Energy SPD

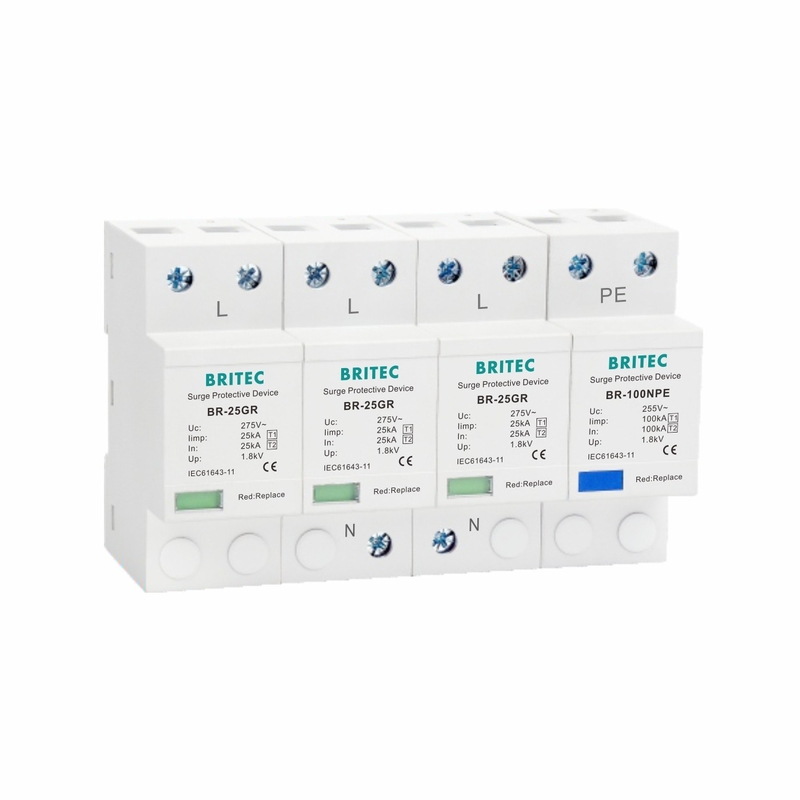

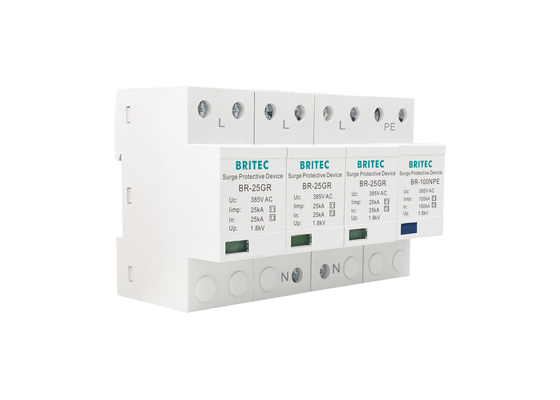

Large Image : 25KA 3P+NPE T1 Class I Surge Protector Type 1 High Energy SPD

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-25GR 3+1

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 25 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	500000 Piece/Pieces Month

Contact Now

25KA 3P+NPE T1 Class I Surge Protector Type 1 High Energy SPD

Description

Item Name:	Type 1 High Energy SPD	Appearance:	Modular Design
OEM:	YES	Model Numbers:	BR-25GR 3+1
Rated Voltage:	150V/275V/320V	Standard:	IEC61643-1
Weight (g):	1000	Color:	White, Grey
Class:	Type 1	Iimp:	25kA
Keyword:	Lightning Protection
Highlight:	SPD T1 Class Surge Protector , 3P+NPE T1 Class Surge Protector , High Energy T1 Surge Protector

T1 Class I 25KA 3P+NPE Surge Protector Features:

• Type 1 surge protection device surge supressor type 1 spd

• Working voltage: 240V/400V.

• It can be used as surge protector for control cabinet, surge protector for incoming line cabinet and surge protector for main distribution box.

• Normal discharge current (8/20us) In: 25kA / 100kA.

• Modular design

• Labeled connections.

• Easy to change

• Composite type: 3P+NPE.

• Beautiful appearance

• Installation: standard rail 35mm.

• OEM accepted, can be customized according to customer requirements

• According to IEC61643-1.

T1 Class I 25KA 3P+NPE Surge Protector Technology characteristic:

	BR-25GR 3+1
Nominal voltage Un	240V / 400V AC
Max. continuous operating a.c. voltage Uc	150V/275V/320V
Lightning impulse current (10/350us) (L-N / N-PE) Iimp	25kA / 100kA
Nominal discharge current (8/20us) (L-N / N-PE) In	25kA / 100kA
Maximum discharge current (8/20us) (L-N / N-PE) Imax	100kA / 200kA
Voltage protection level (L-N / N-PE) Up	≤2.3kV/≤1.5kV
Response time tA	≤100ns
Max. backup fuse	315A gG
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Test standards	IEC 61643-11, EN 61643-11

Dimension:

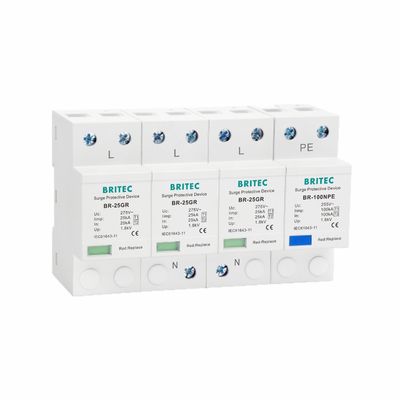

25KA 3P+NPE T1 Class I Surge Protector Type 1 High Energy SPD 0

T1 Class I 25KA 3P+NPE Surge Protector Characteristics:

• High discharge energy

• Fast response time

• Large capacity

• Low residue voltage

• Stable performance

• Safety in use

• No leakage current

• 5 years quality assurance

• Optional communication alarm interface

T1 Class I 25KA 3P+NPE Surge Protector Installation and maintenance:

• The connecting line should be as short, straight and thick as possible

• A suitable backup protector, fuse or circuit breaker should be connected in series at the front end of the surge arrester.

• During the installation, the power supply must be disconnected. Live operation is prohibited. The connection wire must meet the requirements.

• After the installation is complete, check whether it works properly.

• The surge arrester does not need special maintenance. It only needs to check regularly whether the connection is loose and whether the status indicator is normal.

Certificate:

Production line:

Laboratory equipment:

Shipping:

FAQ:

Q1: What is the MOQ?
A1: 100pcs.

Q2: Is OEM/ODM available?
A2: Yes, it is! Our products can be Customized. We have design and engineer teams, we can customize products according to customers’ drawing or requirements.

Q3: Can we put/show our own Logo on your products?
A3: Yes.

Q4: What is the Terms of Payment?
A4: T/T, PAYPAL etc.

Q5: How is the delivery time?
A5: It depends your order quantity and it normally takes 25 days.
