| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV |
| Model Number: | BR-50GR 1+1 |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Protective Device | Type: | T1+T2 |
|---|---|---|---|
| Color: | White | MOQ: | 2PCS |
| Country Of Origin: | China | Iimp: | 50kA |
| TA: | ≤25ns | Shipping Term: | Sea/Air Shipping |
| Delivery Time: | Shipped In 15 Days After Payment | Rated Frequency (f): | 50/60Hz |
| Highlight: | BR - 50GR Surge Protective Device,1+1Ac Surge Protective Device,SPD Surge Protective Arrestors Device |
||

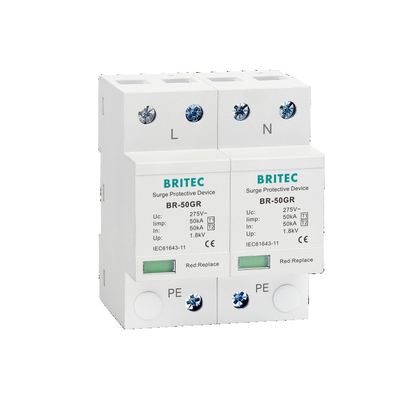

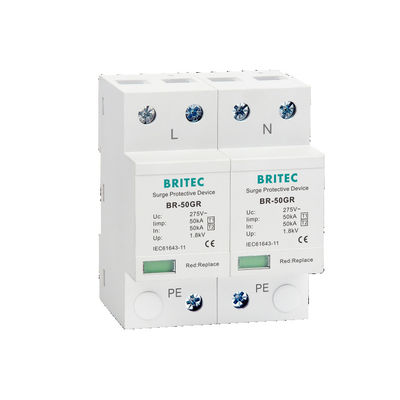

50ka 1 single Phase Type 1 Surge protective device TUV BR-50GR 1+1
Advantage
1:Over 20 years experience in production and processing;
2:faster product innovation, production specialization, timely delivery,
3:Strict quality inspection procedure
Class 1 Type 1 Surge Protection Device Technology characteristic:
| Specification | BR-50GR 1+1 |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 1 |
| SPD dassification according to IEC61643-11 | Class I |
| Max continuous 0perating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350µs) limp | 50kA |
| Norminal discharge current (8/20µs) In | 50kA |
| Voltage protection level Up | ≤1.8kV |
| Follow current extinguishing capability a.c. lfi | 3kA rms |
| Max. backup fuse | 500A gG |
| Response time tA | ≤100ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm² |
| Cross-section area (Max.) | 35mm² |
| Enclosure material | Thermoplastic UL94-V0 |
Dimension:
Class 1 Type 1 Surge Protection Device Application:
Surge protection devices are designed to protect electrical equipment from surge voltage. They limit transient overvoltage, divert current impulses to the ground and reduce the overvoltage amplitude to a level that is safe for electrical installations and equipment. SPDs are used both in Civil Construction and in Industrial facilities.
Certification:
Company profile:
We have own factory. We have own designer, accept OEM & ODM, we can offer design service, high quality picture, video and so on. Our sale team members have several years' experience on the global trading. We have our own models of over hundreds until now.
FAQ:
Q1: Are you Factory?
A: Yes, we are a 20 year factory with SPDs.
Q2: What’s the MOQ and Lead Time?
A: Our MOQ is 100pcs/Model. And the lead time is 20 days after confirmed the payment.
Q3: What is the payment and shipping?
A: We accept T/T, Paypal, L/C etc. And the shipping: DHL, FedEx, TNT, EMS, UPS ect.
Q4: What should I do if I can not find the model in your shop?
A: We have more than 100+ models including AC surge arrester, solar surge protector, data lightning protector and LED lightning arrester. Please contact our team for more models.
Q5: How about the after sale service?
A: If any crack on delivering, we would try best to help to solve it, refund, resend goods, or other ways.
Contact Person: Lucky
BR-40 2P Surge Protection Device Class II Spd 275v lightning surge protector varistor surge arrester
BR-40 1+1 DIN Rail Type 2 Surge Protection Device Spd Lightning Protection
BR-40 48 DC SPD Surge Protection Device Dc Surge Suppressor 40kA 48v Pv Surge Arrester

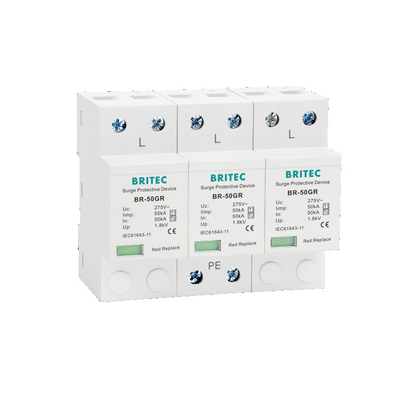

BR-50GR 4P Ac Lighting protection China type 1 surge protection device Spd Surge Filter spd t1 t2
