| Place of Origin: | China Zhejiang |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BR-50GR 275 1P |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Protection Device | Class: | Type 1 |
|---|---|---|---|
| Material: | Thermoplastic UL94-V0 | Place Of Origin: | Zhejiang, China (Mainland) |
| Mounting Type: DIN Rail: | DIN Rail 35 Mm | Brand Name: | BRITEC |
| Certificate: | TUV/CE/ROHS/ISO9001 | Tu: | -40℃-80℃ |
| Packing: | Carton | Imax: | 200kA |
| Uc: | 275V | ||
| High Light: | Surge Protection Device Lightning Arresters,1P 50kA Surge Protection Device,DIN rail 35mm Surge Protection Device |
||

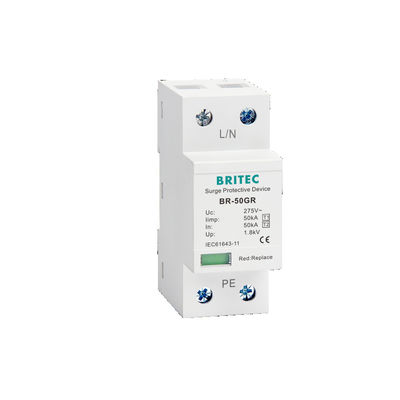

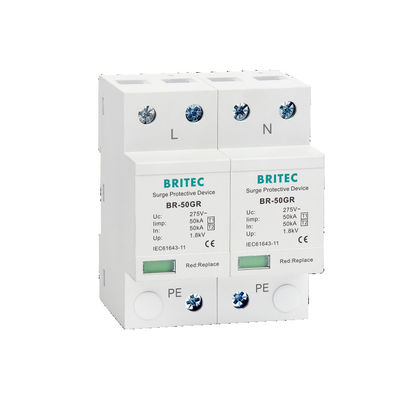

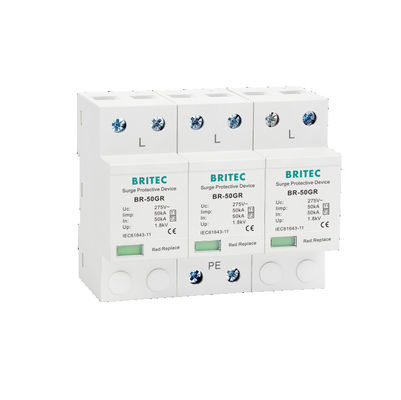

50 kA Surge Protection Devices single surge protector type 1 SPD
Benefits
The impulse current of 50kA per pole (10/350 µs wave) satisfies all requirements for overvoltage surge protection
The early creation of the electric arc by its electronic ignition device reduces the protection level Up to an optimum value of 1.8kV
Surge Protection Devices Technology characteristic:
| Specification | BR-50GR 1P |
| Item name | Surge Arrester |
| SPD dassification according to EN61643-11 | Type 1 + Type 2 |
| SPD dassification according to IEC61643-11 | Class I + Class II |
| Max continuous 0perating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350µs) limp | 50kA |
| Norminal discharge current (8/20µs) In | 50kA |
| Maximun discharge current (8/20µs) Imax | 200kA |
| Voltage protection level Up | ≤1.8kV |
| Follow current extinguishing capability a.c. lifi | 3kA rms |
| Max. backup fuse | 500A gG |
| Response time tA | ≤100ns |
| For mounting on | 35mm Din rail |
| Degree of protection | IP20 |
| Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
| Certificate | CB/CE/ROHS/ISO9001 |
| Logo | Customized logo available |
| Design ability | We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |
Surge Protection Devices Dimension:
Products features:
1. Pluggable module, easy for installation and maintenance
2. High discharge capacity, quick response
3. Double thermal disconnection devices, providing more reliable protection
4. Green window will change when fault and also provide remote alarm control at the same time
Q1. Are you manufacturer or trading office?
A: We are manufacturer in Wenzhou, with the ability to export by ourselves.
Q2: Do you support OEM or ODM?
A: Yes, we support OEM & ODM.
Q3: How's your product markets?
A: Our products are welcomed among Europe, South America, Asia and certain countries in Africa, win
us a good reputation.
Q4. How’s your warranty?
A: All our products are 5 years warranted.
