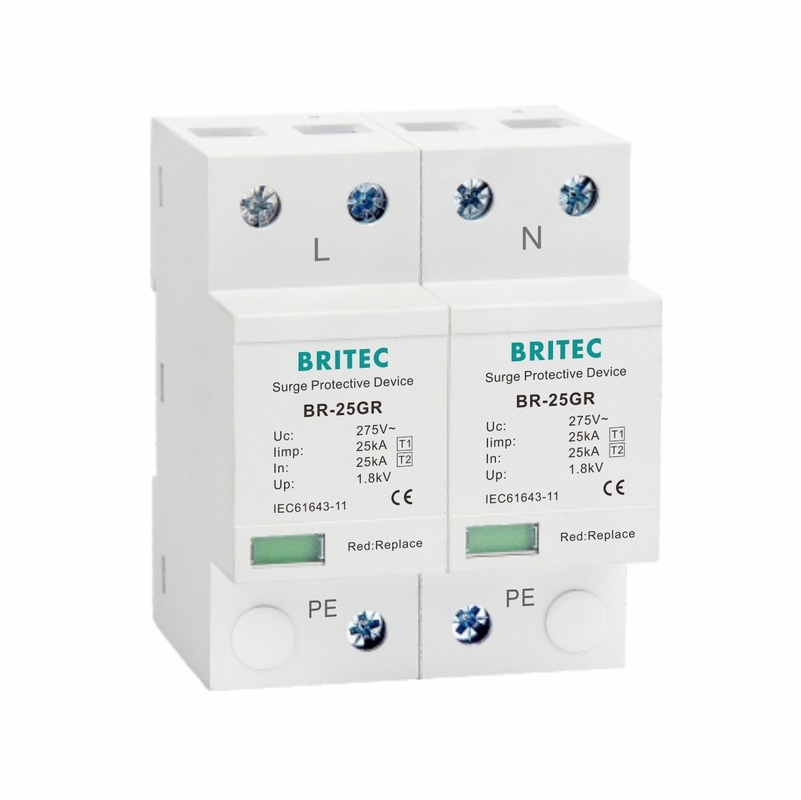

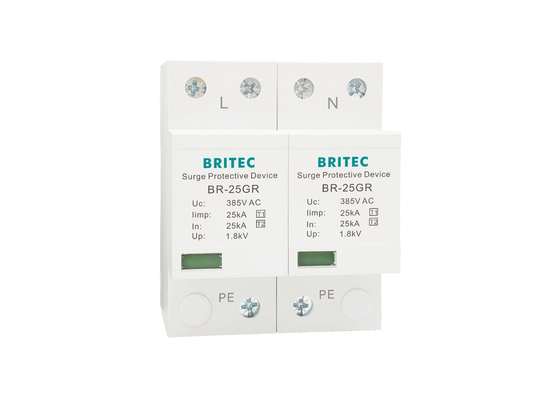

BR-25GR 25KA 2P Surge Protector Household Arrester 150V / 275V / 320V

BR-25GR 25KA 2P Surge Protector Household Arrester 150V / 275V / 320V

  • BR-25GR 25KA 2P Surge Protector Household Arrester 150V / 275V / 320V
  • BR-25GR 25KA 2P Surge Protector Household Arrester 150V / 275V / 320V
BR-25GR 25KA 2P Surge Protector Household Arrester 150V / 275V / 320V
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV
Model Number: BR-25GR 2P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Uc: 150V/275V/320V Custom: OEM
Brand: BRITEC Item Name: Surge Arrester
Type: Ac Surge Protector Material: Plastic
Pole Number: 2P Iimp: 25kA
In: 25kA Up: 1.8kV
High Light:

Surge Protector Household Arrester

,

BR-25GR Surge Protector Arrester

,

275V Surge Protector Arrester

Surge Protector BR-25GR 25KA 2P Features:


• Suitable for 50/60Hz ac system
• Voltage protection level UP < 1.8Kv.
• Meet the SPD Type 1 test
• Standardized 35mm rail mounting.
• Used to suppress transient overvoltage, discharge surge energy, so as to protect the system circuit and equipment.
• Compliant with EN / IEC 61643-11 standards.



Surge Protector BR-25GR 25KA 2P Technology characteristic:



Specification BR-25GR 2P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 1 + Type 2
SPD dassification according to IEC61643-11 Class I + Class II
Max continuous 0perating a.c. voltage                                                   Uc 275V
Lightning impulse current (10/350µs)                                                   limp 25kA
Norminal discharge current (8/20µs)                                                       In 25kA
Maximum discharge current (8/20µs)                                                 Imax 100kA
Voltage protection level                                                                          Up ≤1.8kV
Short-circuit current rating                                                                   lsccr 25kA rms
Max. backup fuse 315A gG
Response time                                                                                         tA ≤100ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range                                                                  Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Enclosure material Thermoplastic UL94-V0



Dimension:

BR-25GR 25KA 2P Surge Protector Household Arrester 150V / 275V / 320V 0

Surge Protector BR-25GR 25KA 2P Application:



• Suitable for 50/60Hz ac system
• Widely used in mobile communication base stations, microwave communication bureaus/stations, telecommunication rooms, industrial mining, civil aviation, financial securities and other power systems.
• Used to suppress transient overvoltage, discharge surge energy, so as to protect the system circuit and equipment.
• Against surges at direct lightning stroke (in presence of lightning conductor)and against indirect surges on the electrical networks.

Surge Protector BR-25GR 25KA 2P Advantage:

• High flame retardant, anti-corrosion.
• Reliable quality and long service life.
• Large discharge energy.
• High protection level.

Surge Protector BR-25GR 25KA 2P Installation:

• Type 1 or Type 1+2 SPD (Iimp ≥ 12.5 kA) compulsory at the installation source (main distribution board in secondary buildings).
• Installations more than 10 m high (apartment buildings, office buildings, hotels, etc): type 2 SPD recommended for protecting private areas and floor distributors (communal areas) in addition to a type 1 or type 1+2 SPDs.
• Installations with numerous private areas (apartment buildings, office buildings, etc): type 2 SPD where In ≥ 5 kA compulsory at the source of each private area if the type 1 or type 1+2 SPDs cannot be installed at the installation source.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.



Company Information:



Wenzhou Britec Electric Co., Ltd. is located in Yueqing city, which on the coast of the East China Sea. It is a professional manufacturer engaged in the development, production, sales and service of low-voltage surge protection device products. Equipped with domestic advanced production lines and sophisticated testing equipment. The company's leading products include AC surge protectors, DC surge protectors for low-voltage power distribution systems, data lightning protection devices, LED surge protectors etc.



BR-25GR 25KA 2P Surge Protector Household Arrester 150V / 275V / 320V 1



Factory:



BR-25GR 25KA 2P Surge Protector Household Arrester 150V / 275V / 320V 2



Shipping:



BR-25GR 25KA 2P Surge Protector Household Arrester 150V / 275V / 320V 3



Certificate:



BR-25GR 25KA 2P Surge Protector Household Arrester 150V / 275V / 320V 4



FAQ:



Q1: Are you a factory or trading company?

A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.



Q2: How does your factory do regarding quality control?

A2: All the products will be 100% checked before the shipment.



Q3: Can I have a visit to your factory before the order?
A3: Welcome! Our factory address: Block 1, BoTongHuiGu Industrial Park, Yueqing Economic Developement Zone, Yueqing, Zhejiang, China.



Q4: What's about MOQ?
A4: First order MOQ=100pcs.
