| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BR-40 1P |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Single Phase Spd | Type: | T2 |
|---|---|---|---|
| Package: | Carton Package | Waveform: | 8/20 |
| Certificate: | TUV CE IEC ROHS | Mounting: | DIN Rail 35 Mm. |
| Rated Voltage: | 275V | Enclosure Material: | Thermoplastic, UL94 V‐0 |
| Product Structure: | Plug | Standard: | IEC Standard |
| High Light: | spd Type 2 Surge Protector Device,BR-40 Type 2 Surge Protector Device,275V Type 2 Surge Protector Device |
||

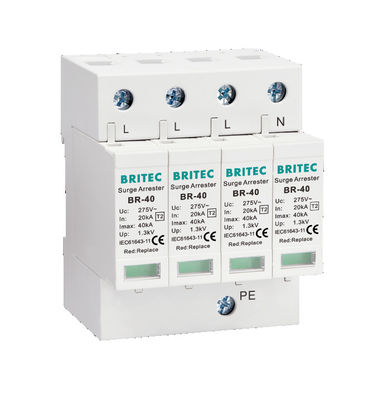

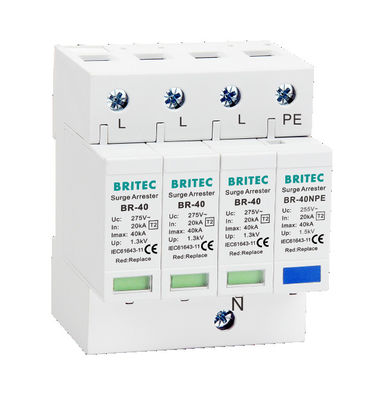

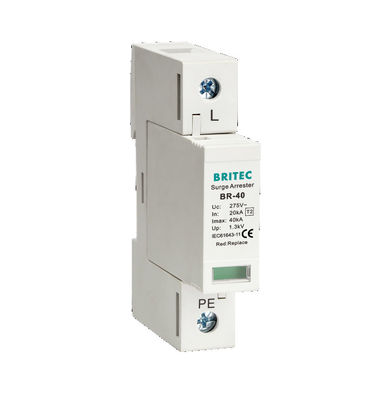

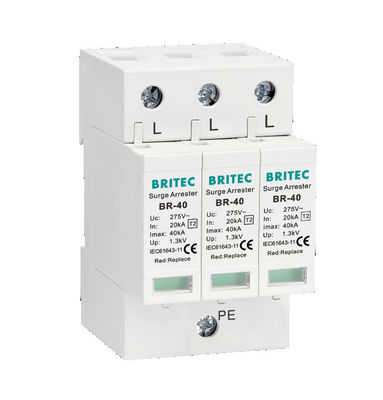

40kA 275V surge voltage protector tvss spd Type 2 surge arrester
Type 2 surge arrester Features:
Protecting low-voltage consumers' installations against indirect lightning discharges
High performance varistor with thermal disconnection tripping device
Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring etc.
Protection class: Type 2,Class II
Pole number:1P,2P,3P,4P,1+1,3+1 optional
Our advantages
Low voltage protection level with varistor-based protective circuit
Powerful disconnect device provides optimum protection against overvoltages
Easy testing and insulation measurement thanks to pluggable protective devices
Type 2 surge arrester Technology characteristic:
| BR-40 1P | |
| Max. continuous operating a.c. voltage Uc | 275V |
| Nominal discharge current (8/20us) In | 20kA |
| Maximum discharge current (8/20us) Imax | 40kA |
| Voltage protection level Up | ≤1.3kV |
| Response time tA | ≤25ns |
| Max. backup fuse | 125A |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Test standards |
IEC 61643-11, EN 61643-11 |
Type 2 surge arrester Application:
Application from 1 to 4 poles
Protection against surge and overvoltage spikes
Good protection level
High discharge capacity
CB, CE, TUV,RoHS Certificate:
Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
