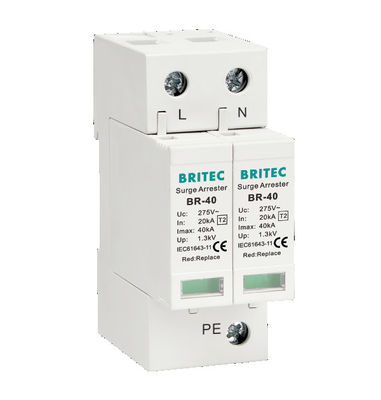

BR-40 2P 40kA Type 2 Surge Protective Device Lightning Arrestor Single Phase spd tuv surge protector

BR-40 2P 40kA Type 2 Surge Protective Device Lightning Arrestor Single Phase spd tuv surge protector

  • BR-40 2P  40kA Type 2 Surge Protective Device Lightning Arrestor Single Phase spd tuv surge protector
  • BR-40 2P  40kA Type 2 Surge Protective Device Lightning Arrestor Single Phase spd tuv surge protector
  • BR-40 2P  40kA Type 2 Surge Protective Device Lightning Arrestor Single Phase spd tuv surge protector
  • BR-40 2P  40kA Type 2 Surge Protective Device Lightning Arrestor Single Phase spd tuv surge protector
BR-40 2P  40kA Type 2 Surge Protective Device Lightning Arrestor Single Phase spd tuv surge protector
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS/ISO9001
Model Number: BR-40 2P
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protective Device Model Numbers: BR-40 2P
Imax: 40KA MOQ: 5 PCS
EN Type: Type2 IP Degred: IP20
Product Srtucture: Plug Protection Level Up: 1.3 KV
Fault Indication: Green / Red
Highlight:

Spd Surge Protective Device Lightning Arrestor

,

40kA Spd Surge Lightning Arrestor

,

BR-40 2P Spd Surge Lightning Arrestor

40kA 275V tvss spd manufactur Type 2 single phase surge protectors





Type 2 surge arrester  Features:



Product Feature:

surge protection, large current capacity, low residual voltage, fast response time, standard guide rail design, convenient installment, module deterioration indication, the thermal automatic release function, it can auto recovered after the faults remove, and do not affect the normal power supply.



Type 2 surge protection should be present in every subdistribution. It is the only way to achieve effective protection.



Plug-in surge arrester, in accordance with Type 2/Class II





Type 2 surge arrester  Technology characteristic:

BR-40 2P  40kA Type 2 Surge Protective Device Lightning Arrestor Single Phase spd tuv surge protector 0

BR-40 2P  40kA Type 2 Surge Protective Device Lightning Arrestor Single Phase spd tuv surge protector 1



  BR-40 2P
Max. continuous operating a.c. voltage                              Uc 275V
Nominal discharge current (8/20us)                                    In 20kA
Maximum discharge current (8/20us)                             Imax 40kA
Voltage protection level                                                      Up ≤1.3kV
Response time                                                                    tA ≤25ns
Max. backup fuse 125A
Operating temperature range                                             Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Test standards



  IEC 61643-11, EN 61643-11



Type 2 surge arrester Application:

· For electrical installations.

· Suitable for lightning protection of power supply system in areas with high risk of lightning strike (LPZ0B or interface between LPZ0B and LPZ1).

· Can handle lightning currents and protect sensitive electronic equipment.

· Application-optimized and prewired combined lightning current.


Type 2 surge arrester Certificate:


CB, CE, TUV,RoHS Certificate:


BR-40 2P  40kA Type 2 Surge Protective Device Lightning Arrestor Single Phase spd tuv surge protector 2

Company information:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.

BR-40 2P  40kA Type 2 Surge Protective Device Lightning Arrestor Single Phase spd tuv surge protector 3

Production line:

BR-40 2P  40kA Type 2 Surge Protective Device Lightning Arrestor Single Phase spd tuv surge protector 4
BR-40 2P  40kA Type 2 Surge Protective Device Lightning Arrestor Single Phase spd tuv surge protector 5

Laboratory equipment:

BR-40 2P  40kA Type 2 Surge Protective Device Lightning Arrestor Single Phase spd tuv surge protector 6

Shipping:

BR-40 2P  40kA Type 2 Surge Protective Device Lightning Arrestor Single Phase spd tuv surge protector 7

FAQ:


Q1: Selection of surge protector

Al: The grading of the surge protector (commonly known as lightning protection) Is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition. Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of EN 61643-11 / IEC 61643-11 is 25 ka (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly to suppress the overvoltage.



Q2: Are you a lightning surge protectors factory or lightning surge protectors trading company?

A2: We are a lightning surge protectors manufacturer.



Q3: Warranty and services:

A3:1. Warranty 5 years

2. lightning surge protectors products and accessories have been tested 3 times before ship out.

3. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.



Q4: How can I get some lightning surge protectors samples?

A4: We are honored to offer you lightning surge protectors samples, pis contact our staff, and leave detailed contact information, we promise to keep your information confidential.



Q5: Is the sample available and free?

A5: Sample is available, but the sample cost should be payable by you. The cost of the sample will be refunded after further order.



Q6: Do you accept customized order?

A6: Yes, we do.
