• Modular design
• Stable and reliable performance.
• Easy to replace
• High lightning current capability, fast response speed.
• OEM accepted, can be customized according to customer requirements

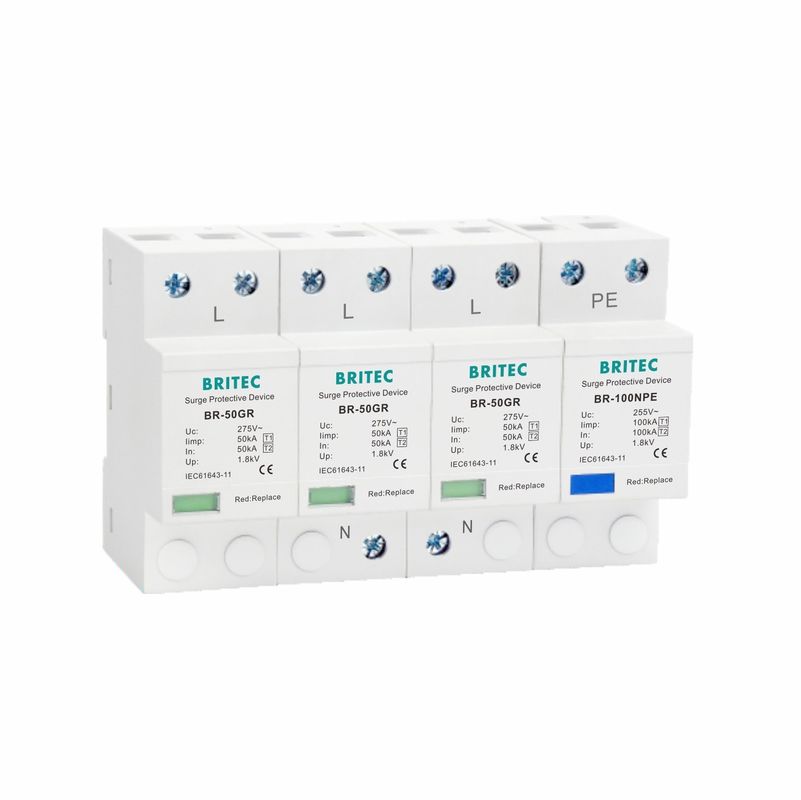

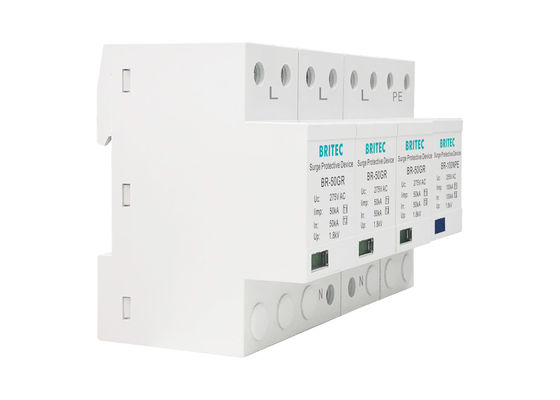

Class I T1 50KA 3P+NPE Surge Protector Technology characteristic:
| |
BR-50GR 3+1 |
| Lightning impulse current (10/350us) (L-N / N-PE) Iimp |
50kA / 100kA |
| Voltage protection level (L-N / N-PE) Up |
≤1.8kV |
| Phase/Pole |
3P+NPE |
| Max. continuous operating a.c. voltage Uc |
275V |
| Response time tA |
≤100ns |
| Enclosure material |
Thermoplastic UL94-V0 |
| For mounting on |
35mm Din rail |
| Operating temperature range Tu |
-40℃—80℃ |
| Test standard |
IEC61643-1 |
| Degree of protection |
IP20 |
Dimension:
Class I T1 50KA 3P+NPE Surge Protector Characteristics:
• Large discharge energy, fast response time, low residual voltage
• Modular design, easy to replace
• Stable performance and safe use
• 5 years quality assurance
• Optional communication alarm interface
Class I T1 50KA 3P+NPE Surge Protector Application:
• Suitable for B grade surge protection, which protects the electrical network not shocked by the thunder.
• Usually installed in low voltage main distribution box connected to the incoming end of the buildings.
What is spd: A surge protective device (SPD) is a protective device for limiting transient voltages by diverting or limiting surge current and is capable of repeating these functions as specified.
How to connect spd: Connections of a SPD to the loads should be as short as possible in order to reduce the value of the voltage protection level (installed Up) on the terminals of the protected equipment.
Our cutting-edge technology delivers higher surge current ratings and significantly enhanced durability compared to Phoenix spd datasheet.
Company Information:
Britec established in 2003 located in Yueqing City, Zhejiang Province. We are an enterprise focusing on SPD production, sales, and R&D. Our company currently provides up to 100 kinds of surge protective Device SPD. We also provide surge protectors according to customers' requirements.
Quality Inspection:
In our company, we have first-class laboratories and R&D platform, advanced detection equipment ensure the security and stability of the products.
Certification:
Our products have CE, CB, TUV certification. The company implements ISO9001 quality mangement system.
Shipment:
We ship out the goods by Express, by Air or by Sea.
Payment:
• Our trade term: EXW, FOB, CIF.
• Payment term: T/T in advance, Paypal etc.
FAQ:
Q1: What is the MOQ for customized color please?
A: 2000pcs/item could be designed customer color.
Q2: Where is your main market?
A: South America, South Africa, South East Asia, the Middle East, Europe.
Q3: Are you manufacturer? How long have you do the surge protection device?
A: Yes, we are professional SPD manufacturer since 2003.
Q4: Where is your factory?
A: Our factory is located in Yueqing City, Zhejiang Province.
