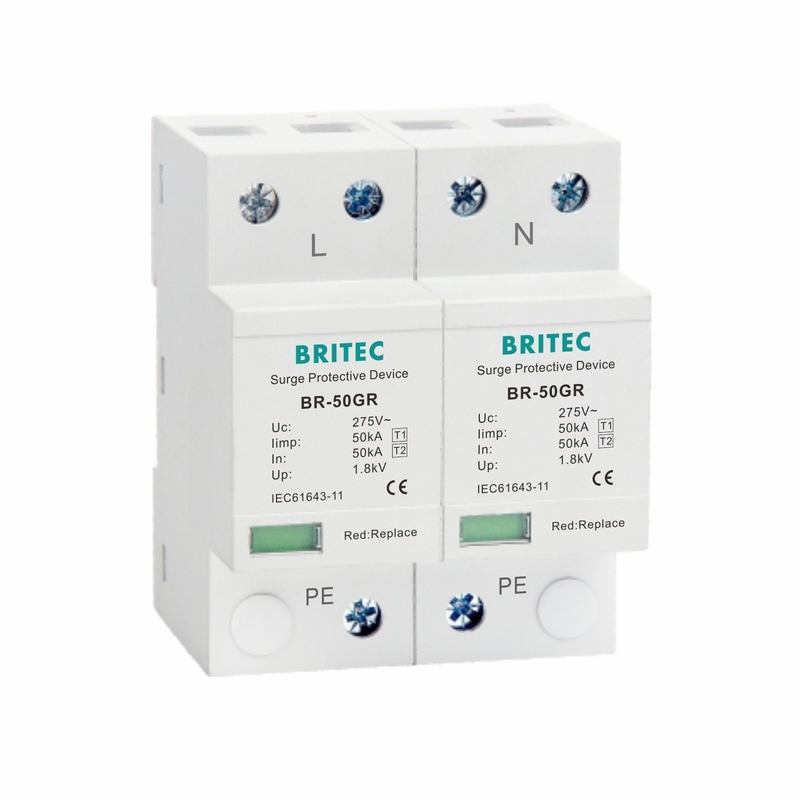

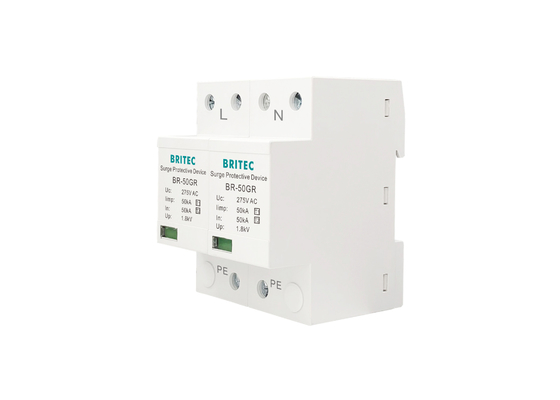

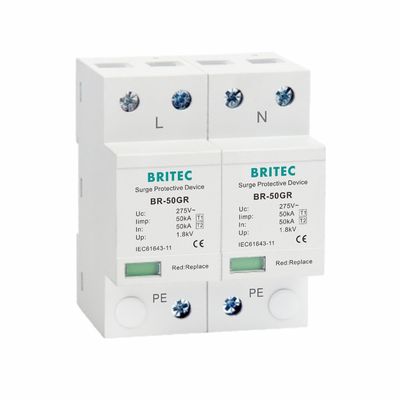

Name: Class I Power Surge Arrester 10/350μs 50KA Single Phase 150V / 275V / 320V
Brand: Britec Electric Co., Ltd.
SKU: BR-50GR 2P
Price: 67.00 USD
Availability: InStock

Home Products Type 1 Surge Protection Device

Class I Power Surge Arrester 10/350μs 50KA Single Phase 150V / 275V / 320V

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	BR-50GR 2P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 25 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	500000 Piece/Pieces Month

Contact Now

Detailed Product Description

10/350 (50kA 2P):	Single-phase Power Supply System	Uc:	150V/275V/320V
Iimp(10/350μs):	50kA	Item Name:	Type 1 Surge Arrester
Type:	Ac Surge Protector	Operating Voltage:	Low Voltage
Protection Class:	SPD Classification According To EN61643-11 Type 1	Pole Number:	1P,2P,3P,4P,1+1,3+1
In:	50kA	Enclosure:	Thermoplastic UL94-V0
Highlight:	Class I Power Surge Arrester , 50KA Power Surge Arrester , Single Phase 275V Power Surge Arrester

Class I Power Surge Arrester 10/350μs (50KA) Feature:

• 10/350μs (50kA 2P) (single phase power supply system)

• High discharge capacity

• The Class I surge protector is mainly installed in the main inlet cabinet of the building as the first-level lightning protection of the building power distribution system.

• BR-50GR type 1 is designed to discharge high current surges

• Maximum continuous operating voltage Uc 150VAC/275VAC/320VAC

• This surge protective device is characterized by its capacity to withstand impulse current with 10/350µs wave form which simulates direct impact coming from a natural lightning current.

• limp(10/350μs) : 50kA

Dimension:

Class I Power Surge Arrester 10/350μs 50KA Single Phase 150V / 275V / 320V 0

Class I Power Surge Arrester 10/350μs (50KA) Product characteristics:

Specification	BR-50GR 275 2P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1
SPD dassification according to IEC61643-11	Class I
Max continuous 0perating a.c. voltage Uc	275V
Lightning impulse current (10/350µs) limp	50kA
Nominal discharge current (8/20µs) In	50kA
Voltage protection level Up	≤1.8kV
Follow current extinguishing capability a.c. lfi	3kA rms
Max. backup fuse	350A gG
Response time tA	≤100ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enclosure material	Thermoplastic UL94-V0

Class I Power Surge Arrester 10/350μs (50KA) Application:

• BR-50GR series surge protective device (in short SPD, surge suppressor surge arrester)is suitable for TN-S TN-C-S TT IT etc. power supply system of AC 50/60Hz.

• Type 1 SPDs are placed at the entrance point of the installation, in the main distribution board for a global protection of this installation.

Class I Power Surge Arrester 10/350μs (50KA) Main benefits:

• Nominal discharge current In(8/20μs) : 50kA

• Spark gap technology

• Protection level Up: 1.8kV

The company's single Phase SPD Surge Protector USA 150V 2p 50ka Power AC System Surge Protective Device are involved in many industries, and have established a good reputation and accumulated rich experience in successful cases.

How spd working: The ability of an SPD to limit overvoltages on the electrical distribution network by diverting surge currents is a function of the surge-protective components, the mechanical structure of the SPD, and the connection to the electrical distribution network.

TVSS vs SPD: Transient voltage surge suppressor (TVSS) and surge protective devices (SPD) both refer to a piece of equipment that can protect low-voltage electric systems from damaging transients, spikes or surges.

Workshop:

Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

Class I Power Surge Arrester 10/350μs 50KA Single Phase 150V / 275V / 320V 1

Company Information:

Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.

Class I Power Surge Arrester 10/350μs 50KA Single Phase 150V / 275V / 320V 2

Exhibition:

Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.

Class I Power Surge Arrester 10/350μs 50KA Single Phase 150V / 275V / 320V 3

Certifications:

Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.

Class I Power Surge Arrester 10/350μs 50KA Single Phase 150V / 275V / 320V 4

Product Uses:

Britec have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.

FAQ:

Q1: How about your experience?

A: We have our own factory and in-house test laboratory, our R&D department have more than 21 years experiences.

Q2: What's your advantage?

A: Fast delivery: 3 weeks. Large scale production drive cost down: 300,000 pieces per year. Qulaity recognized :cooperate with transnational company.

Q3: Is custom design package acceptable?

A: Inner box and out carton are made as per international standard. We can make packaging according to customer's need.

Q4: Could you do OEM for us?

A: Sure, we accept OEM and ODM order, please supply with the letter of Authorization for the brand.

Q5: How about warranty?

A: 5 years.

Q6: Could I buy 1pc sample first and small order?

A: Of course, support sample order, especially for new customers under certain condition.

Q7: How long make a sample?

A: 7-10 days.

Q8: How does your company do regarding the quality control?

A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. IQC inspects the components, the patrol inspection is done during production and all the goods to be tested 100% before leaving the factory..
