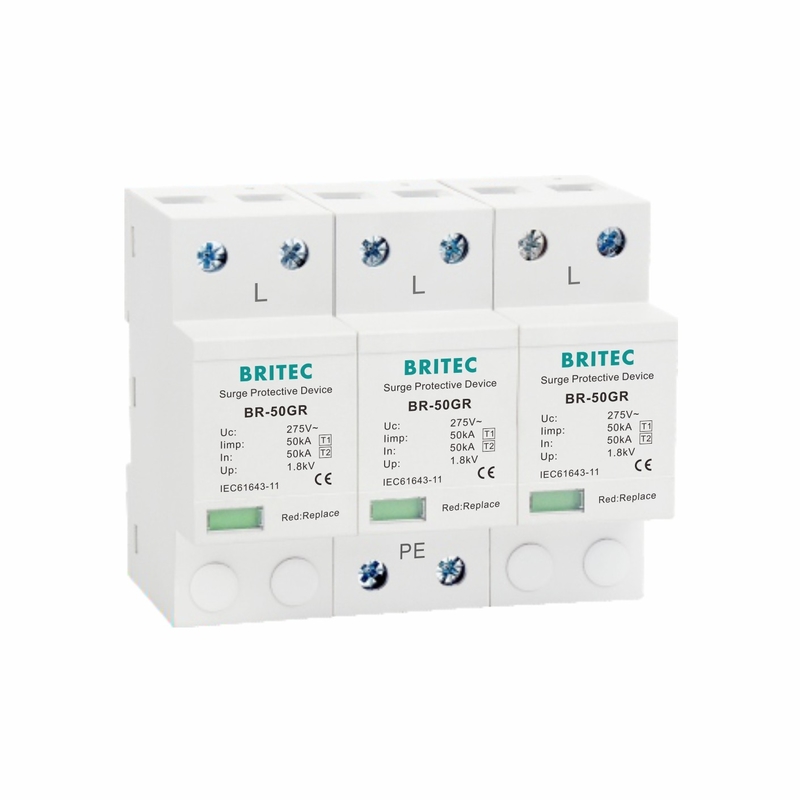

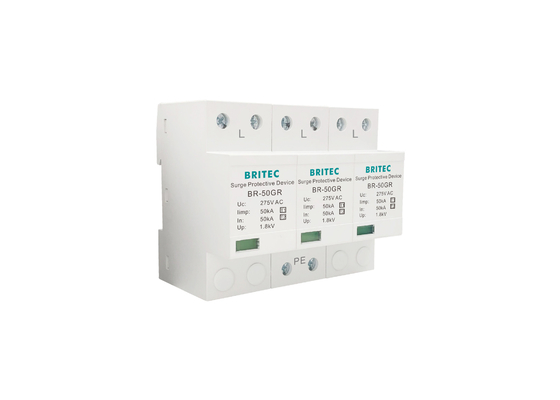

10/350μs Type 1 Power Surge Arrester 50KA Lightning Protection Device Plastic

Large Image : 10/350μs Type 1 Power Surge Arrester 50KA Lightning Protection Device Plastic

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV
Model Number:	BR-50GR 3P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 25 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	500000 Piece/Pieces Month

Contact Now

10/350μs Type 1 Power Surge Arrester 50KA Lightning Protection Device Plastic

Description

Item Name:	Surge Protection Device	Type:	Ac Surge Protector
Material:	Plastic	Place Of Origin:	Zhejiang, China (Mainland)
Pole Number:	3P	Iimp:	50kA
Imax:	200kA	Certificate:	TUV/CE/ROHS/ISO9001
Tu:	-40℃-80℃	Application:	Surge Protective Device Is Suitable For Three-phase TN-C System
Keyword:	Lightning Protection
Highlight:	10/350 Type 1 Power Surge Arrester , 50KA Type 1 Power Surge Arrester , Plastic Type1 Power Surge Arrester

Type 1 Power Surge Arrester 10/350μs (50KA) Features:

• 10/350μs (50kA 3P) Suitable for TN-C systems

• Nominal discharge current In(8/20μs) : 50kA

• The Type 1 surge protector is mainly installed in the main inlet cabinet of the building as the first-level lightning protection of the building power distribution system.

• With indication window and remote control contacts.

• Maximum continuous operating voltage Uc 150VAC/275VAC/320VAC

• BR-50GR series are Type 1 surge protective devices designed to discharge high current surges without any damage to the back-up electrical equipment.

• limp(10/350μs) : 50kA

Type 1 Power Surge Arrester 10/350μs (50KA) Technology characteristic:

Specification	BR-50GR 275 3P
Item name	Surge Arrester
SPD dassification according to EN61643-11	Type 1 + Type 2
SPD dassification according to IEC61643-11	Class I + Class II
Max continuous 0perating a.c. voltage Uc	275V
Lightning impulse current (10/350µs) limp	50kA
Nominal discharge current (8/20µs) In	50kA
Maximun discharge current (8/20µs) Imax	200kA
Voltage protection level Up	≤1.8kV
Follow current extinguishing capability a.c. lfi	3kA rms
Max. backup fuse	350A gG
Response time tA	≤100ns
For mounting on	35mm Din rail
Degree of protection	IP20
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
Enclosure material	Thermoplastic UL94-V0

Dimension:

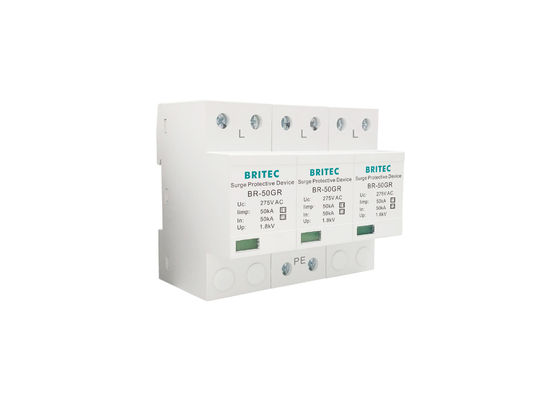

10/350μs Type 1 Power Surge Arrester 50KA Lightning Protection Device Plastic 0

Type 1 Power Surge Arrester 10/350μs (50KA) Application:

• Used in the lightning protection zones concept at boundary LPZ0B-LPZ1.

• For protecting low-voltage consumer's installations against indirect lightning discharges.

• Protect electrical and electronic equipment against transients, originating from lightning, switching of transformers, lighting, and motors.

Type 1 Power Surge Arrester 10/350μs (50KA) Advantage:

• Unique designing, patent technology.

• High discharge capacity.

• Low residual voltage.

• DIN rail mountable and ease of installation.

• Quick thermal response self-protected design.

Type 1 Power Surge Arrester 10/350μs (50KA) Installation:

• Installed at the entrance point of the building, in the main distribution board of this installation.

• It should be used as part of lightning protection systems i.e. when lightning rods or meshed cages are installed.

• Must install SPD strictly according to the wiring diagram provided.

• Better to under the guidance of professional electrician.

• Green tab, normal work status, Red tab, failure status, need to be replaced Rapidly.

Type 1 SPD installation: Type 1 AC Surge Protection Device (SPD) are heavy-duty devices designed to be installed at the origin of AC installations equipped with a Lightning Protection System (LPS).

Type 1 SPD wiring diagram: 3 phase Surge Protector Installation: For a three-phase system, the SPD connects to L1, L2, L3 (live phases), N, and PE.

What does spd stand for in electrical: The Surge Protection Device (SPD) is a component of the electrical installation protection system.

Our Services:

• 21 years global leading profession manufacture of electrical products surge arrester.

• All products will be well packed before shipping.

• Standard packaging, and you can also tell us your own requirements on packaging.

• Faster delivery.

• Individually Tested Prior to Shipment.

Shipping:

Company information:

Wenzhou Britec Electric Co., Ltd. is located in the Yueqing city. Britec is dedicated to development, manufacture, marketing and service of low voltage surge arrester products. The rapidly-developed regional economy and friendly investment environment ensure Britec’s sustainable developments and continuous innovations. It is professional in producing SPD.

FAQ:

Q1. Are you manufacturer or trading office?

A: We are manufacturer in Wenzhou, with the ability to export by ourselves.

Q2: Do you support OEM or ODM?

A: Yes, we support OEM & ODM.

Q3: How's your product markets?

A: Our products are welcomed among Europe, South America, Asia and certain countries in Africa, win us a good reputation.

Q4. How’s your warranty?

A: All our products are 5-years warranted.
