| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/UL/CB/CE/ROHS/ISO9001 |
| Model Number: | BR-25GR 1+1 |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Voltage Protector | Place Of Origin: | Zhejiang, China (Mainland) |
|---|---|---|---|
| Number Of Positions: | 1+1 | Brand Name: | BRITEC |
| Model Numbers: | BR-25GR 1+1 | Rated Voltage: | AC 275V |
| Shipping Term: | Sea/Air Shipping | Function: | Lighting Protection |
| Color: | White | ||
| High Light: | Spd surge voltage Protection Arrester,AC 275V Type 1 Surge Arrester,315A surge voltage Protection Arrester |
||

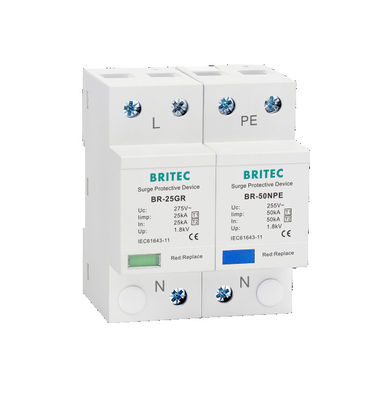

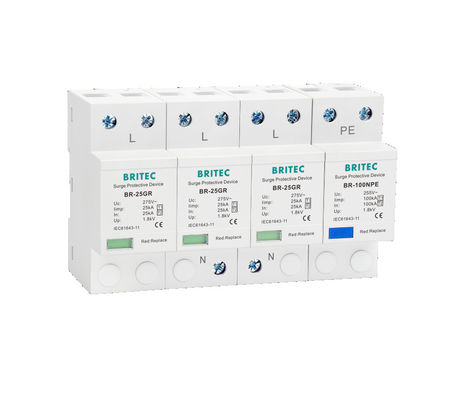

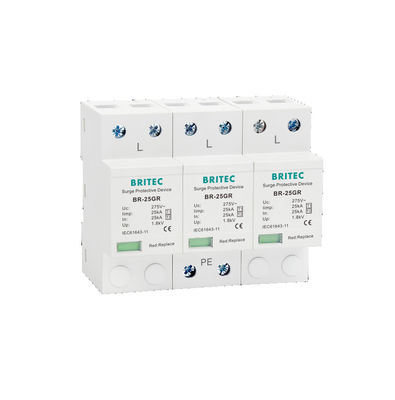

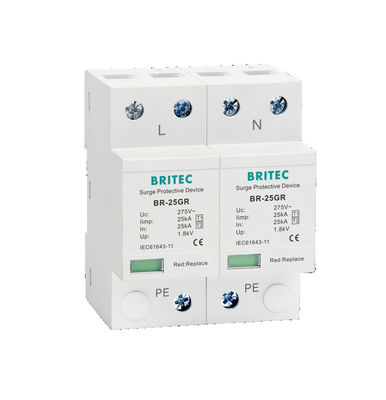

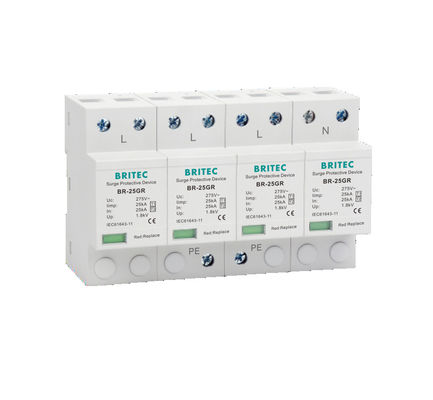

Type 1 25kA Lightning Surge Arrester Module surge voltage protector ac SPD
surge voltage protector Features:
They are made from the highest grade components to ensure reliability in all applications where protection against lightning strikes and power surges is required.
The features and design of these surge protectors makes them the perfect compliment to ensure your home is protected against power surges and lightning strikes. Since they have a high discharge capacity, they are able to detect surges in just nanoseconds!
surge voltage protector Technology characteristic:
| BR-25GR 1+1 | |
| Nominal voltage Un | 230V / 400V AC |
| Max. continuous operating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350us) (L-N / N-PE) Iimp | 25kA / 50kA |
| Nominal discharge current (8/20us) (L-N / N-PE) In | 25kA / 50kA |
| Maximum discharge current (8/20us) (L-N / N-PE) Imax | 100kA |
| Voltage protection level (L-N / N-PE) Up | ≤1.8kV |
| Response time tA | ≤100ns |
| Max. backup fuse | 315A |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Test standards | IEC 61643-11, EN 61643-11 |
surge voltage protector Dimension:
surge voltage protector Application:
Application: Grid Power, AC Power Circuit, AC Distribution Box, LT Electrical Panel
AC SPD uses for AC Power or Grid Power to protect against transient ac voltage.
CB, CE, TUV,RoHS Certificate:
Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. We are a comprehensive international manufacturer & trading company for SPDs. Most of our products are sold to Germany, United Kingdom, Italy, Spain, France, Hungary, Brazil, Argentina, South Korea, Hongkong, Singapore, Malaysia, Thailand, Indonesia, other countries and regions. Our business principle is to satisfy our customers with honest, surefooted and considerate service.
Contact Person: Lucky Zhu
Tel: +8615888436909
