| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BR-25GR 2P |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | 275v Surge Protection | Place Of Origin: | Wenzhou |
|---|---|---|---|
| Response Time: | 25ns | Number Of Positions: | 2P |
| Type: | Type 1 + Type 2/ Class I + Class II | Model Numbers: | BR-25GR 2P |
| Shipping Term: | TNT DHL FEDEX EMS UPS | Customized: | Yes |
| Installation: | Din Rail 35mm | ||
| Highlight: | T1+T2 Lightning Surge Arrester B+C,T1+T2 2p Class Surge Arrester B+C,35mm T1+T2 Surge Arrester B+C |
||

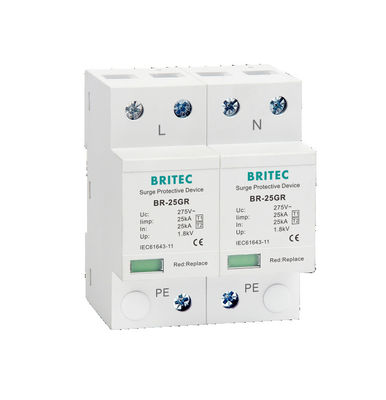

275v surge arrester Class I lightning surge protection device
Surge protector Features:
Benefits
Easy installation
DIN rail mounting
Max nominal discharge phase 100 kA
Excellent protection for electrical panel
Surge protector Technology characteristic:
| BR-25GR 2P | |
| Max. continuous operating a.c. voltage Uc | 275V |
| Lightning impulse current (10/350us) Iimp | 25kA |
| Nominal discharge current (8/20us) In | 25kA |
| Maximum discharge current (8/20us) Imax | 100kA |
| Voltage protection level Up | ≤1.8kV |
| Response time tA | ≤25ns |
| Max. backup fuse | 315A |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Test standards |
IEC 61643-11, EN 61643-11 |
Surge protector Application:
• For electrical installations.
• Suitable for lightning protection of power supply system in areas with high risk of lightning strike (LPZ0B or interface between LPZ0B and LPZ1).
• Can handle lightning currents and protect sensitive electronic equipment.
CB, CE, TUV,RoHS Certificate:
Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
