Name: Driver Power Spd LED Surge Protector 10KV Outdoor LED street lighting SPD 1.6kV
Brand: BRITEC
SKU: BR-LED-10INS
Rating: 4.6 (110 reviews)

Home Products LED Surge Protection Device

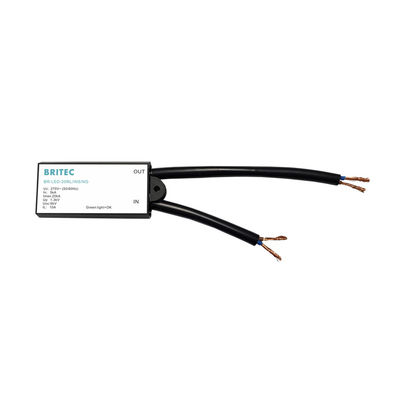

Driver Power Spd LED Surge Protector 10KV Outdoor LED street lighting SPD 1.6kV

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/UL/CB/CE/ROHS/ISO9001
Model Number:	BR-LED-10INS

Payment & Shipping Terms:

Minimum Order Quantity:	10 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15 days after payment
Payment Terms:	T/T, D/P
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Features:	Waterproof & Dustproof	Item Name::	Led Surge Protection Device
Protection Level:	T2	Rated Voltage:	275VAC
Package Quantity:	10 Pcs	Place Of Origin:	CN
Operating Temperature Range:	-40℃~80 ℃	Voltage Protection Level:	1.6kV
Testing Standard:	IEC/ EN61643-11/UL1449	Application:	Power Supply System
High Light:	Spd LED Surge Protector , 10KV Outdoor LED Surge Protector , 1.6kV LED Surge Protector

275V Outdoor LED SPD 10kA Surge Protection led street light surg protector

LED Surge Protection Device Modules 10kA Outdoor SPD Feature:

Applications
Outdoor and Commercial LED Lighting
Roadway lighting
Traffic lighting
Digital signage
Security power supply
Wash wall lighting
Parking garage/lot lighting
Flood lighting
Tunnel lighting
Street lighting

The lightning protection device adopts full mode protection, adopts UVT technology, and has leakage

current and freewheeling interruption function. The product is small and comes with L, N and PE cables for

easy installation and application. The product's maximum protection lightning current is 10kA , which can withstand 10kV surge voltage shock.

LED Surge Protection Device Modules 10kA Outdoor SPD Product Details:

	BR-LED-10INS
SPD classification according to EN61643-11	Type 2 + Type 3
SPD classification according to IEC 61643-11	Class II + Class III
Nominal a.c. voltage Un	230V
Max. continuous operating a.c. voltage Uc	275V
Nominal discharge current (8/20us) In	5kA
Maximum discharge current (8/20μs) Imax	10kA
Voltage protection level Up	≤1. 6kV
Response time tA	≤100ns
Operating temperature range Tu	-40°C~ +80°C
Operating state / fault indication	LED/ green / red
Enclosure materail	Thermal plastic UL94-V0

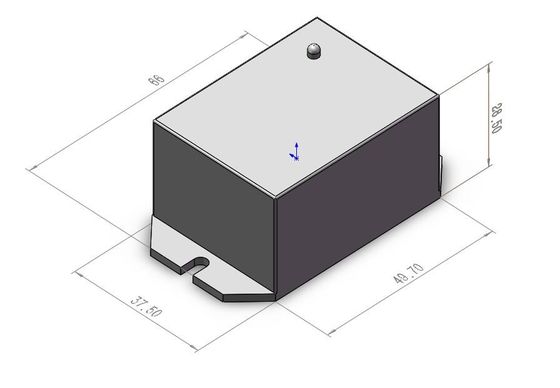

Dimension:

Driver Power Spd LED Surge Protector 10KV Outdoor LED street lighting SPD 1.6kV 1

Driver Power Spd LED Surge Protector 10KV Outdoor LED street lighting SPD 1.6kV 2

LED Surge Protection Device

Application:

Protect LED lighting from transients and surges generated by lightning and switching transients.

Suitable for harsh environments, including outdoor mounting, and provides high performance circuit protection that saves valuable LED lighting assets, reduces maintenance, prevents unwanted failures and decreases degradation damage for longer lifetimes.

Why is protection needed?

• LED technology has become the reference technology for lighting, mainly because of four characteristics: efficiency, versatility, energy savings and longer life. In spite of these benefits, the technology has a number of drawbacks: Higher cost of implementation (initial investment) and internal electronics (LED optics and drivers), much more complex and sensitive to overvoltage than in the case of traditional light sources. For these reasons, the use of overvoltage protection systems is a very cost-effective investment, since it extends the life of the luminaires, ensures the cost effectiveness (ROI) of LED projects and reduces the costs of maintenance and replacement of luminaires. A surge protection device (SPD) connected upstream of the driver, complements the intrinsic immunity of the luminaire, creating much more robust protection against the effects of lightning and overvoltage.

Surge protection for LED Advantages:

1). We have our own factory.

2). Same design, better quality; Same quality, better price; Same price, better after-sale service.

3). Quality control: we execute strictly according to ISO9001:2001 quality control system, with experienced technician help us reduce

the defective percentage effectively, control the quality.

4). Delivery on time: Professional machine, excellent technology, experienced workers, good management ensure us delivery on time.

5). After-sale service: We believe order is not the end of enquiry, conversely.We pay attention to customer’s experience, hope to establish

long-term cooperative relationship.

6). Various Style, suitable for customers' demand

7). We can do OEM&ODM, produce according to your original sample or pictures.

Driver Power Spd LED Surge Protector 10KV Outdoor LED street lighting SPD 1.6kV 3

Company Information:

We are a manufacturer specialized in surge protection device have been 17 years. Our company has a skill to develop various kinds of SPD. Warmly welcome domestic and overseas friends visit our company and cooperate with us to develop new kinds of lightning arrester. Our products sell well mainly in European, south American, Africa and Middle East narkets. With good quality,the products win high praise from customers. We expect to have the sincere cooperation with you soon!

Driver Power Spd LED Surge Protector 10KV Outdoor LED street lighting SPD 1.6kV 4

Certificate:

Our company has ISO9001 certificate, our products have passed CE, CB, TUV type test.
