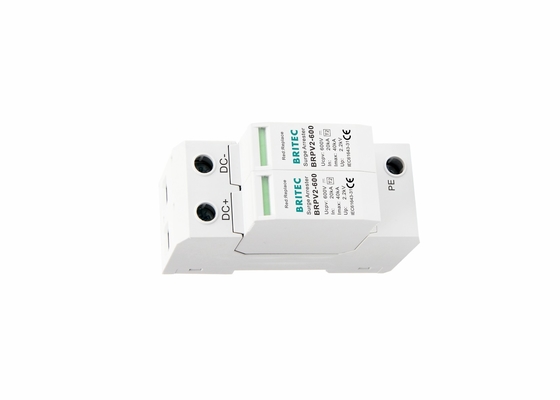

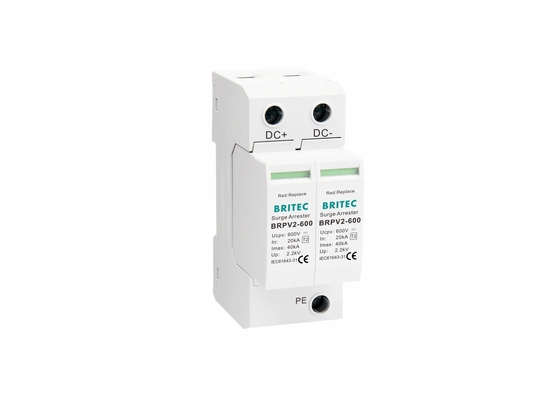

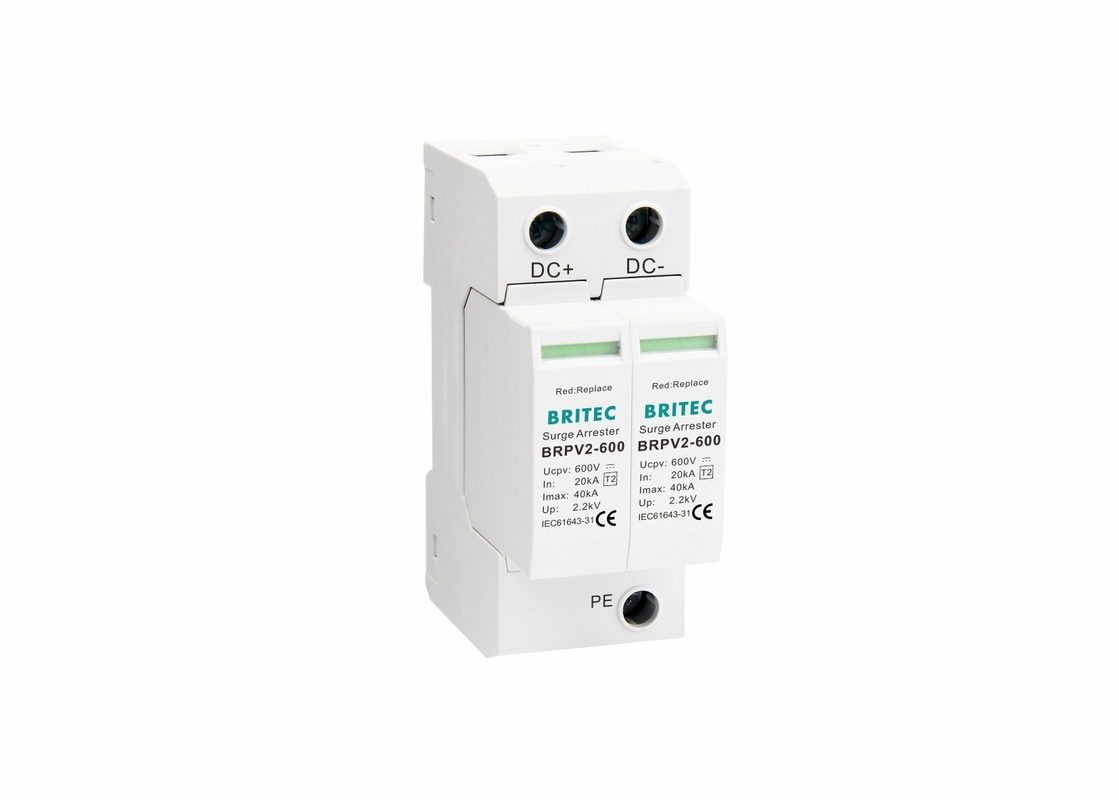

600V Surge Protection Device PV Surge Arrester SPD Surge Protective Device 2P

600V Surge Protection Device PV Surge Arrester SPD Surge Protective Device 2P

  • 600V Surge Protection Device PV Surge Arrester SPD Surge Protective Device 2P
  • 600V Surge Protection Device PV Surge Arrester SPD Surge Protective Device 2P
600V Surge Protection Device PV Surge Arrester SPD Surge Protective Device 2P
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRPV2-600
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: EN61643-31 / IEC61643-31 Type: 2
Application: DC Power System Module: 2P
Max. Voltage: 600V Nominal Discharge Current: 20kA
Max. Discharge Current: 40kA Up: ≤2.6kV
Operating State/fault Indication: Green/red Port: Ningbo/Shanghai
High Light:

600V PV Surge Arrester

,

600V SPD Surge Protective Device

,

2P SPD Surge Protective Device

 600V Surge Protection Device PV Surge Arrester SPD Surge Protective Device 2P


600V Surge Protection Device PV Surge Arrester Description:

DC Surge protection device to protect your PV installation.
When the SPD fails in breakdown for over heat or over-current, the failure release will help electric equipment separate from the power supply system and give the indication signal
Rated voltage: 600 V DC.
Safety super wide electrical spacing and creepage distance, high voltage withstand voltage, meet high altitude area use requirement
Maximum discharge current: 40KA.
Built-in temperature control circuit technology, high safety performance, no after flow.
High Energy Varistor.
Indicates that the green color of the window is normal and any red indicates failure. Clear and easy to distinguish.
High effective for lightning protection


600V Surge Protection Device PV Surge Arrester Parameters:


   BRPV2 600
SPD classification according to EN61643-31 Type 2
SPD classification according to IEC61643-31 Class II
Max. continuous operating dc voltage                            Ucpv 600V
Nominal discharge current (8/20us)                                    In 20kA
Max. discharge current (8/20us)                                     Imax 40kA
Voltage protection level                                                      Up ≤2.6kV
Response time                                                                             tA ≤25ns
Operating temperature range                                             Tu -40℃-80℃
Operating state / fault indication green / red
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material                Thermal plastic UL94-V0
Degree of protection IP20
Order Code B8013
Order code(With remote signal) B8015


Technology characteristic:

600V Surge Protection Device PV Surge Arrester SPD Surge Protective Device 2P 0


600V Surge Protection Device PV Surge Arrester Application:

BRPV2-600 is a type 2 surge arrester for DC and photovoltaic application.
Protect the solar equipment like solar panels and solar inverter from surges damage and overvoltage.
Improve the PV system safety and longer the PV system life.

According to PV standard IEC 61643-31:

The DC SPD complies with PV standard IEC 61643-31: Low-voltage surge protective devices-Part 31: Requirements and tests methods for SPDs for photovoltaic applications.



Our Services:



• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.

Why need pv surge arrester?



Most of the solar modules are very regularly exposed to lightnings and overvoltages, where lighting occurrences are frequent, unprotected PV systems can suffer repeated and significant damage to key components. And these systems represent a significant investment cost, system downtime and the loss of revenue. PV modules, DC cabling, inverters, AC cabling, as well as monitoring systems must all be protecting as part of a in all-inclusive effort to mitigate the damaging effects of lightning and surges. The use of adapted surge protections is then highly recommended.


Certifications:

600V Surge Protection Device PV Surge Arrester SPD Surge Protective Device 2P 1

Company profile:


Wenzhou Britec Electric Co., Ltd. is a professional SPD manufacturer, located in Yueqing, Zhejiang, China, Britec is the specialized manufacturer of low voltage surge protection device. With the advanced facility and technology, we make the first-grade products for our customs. At present, Britec has export and import rights, and our products has been sold to more than 50 countries in the world.


600V Surge Protection Device PV Surge Arrester SPD Surge Protective Device 2P 2


Shipping:

600V Surge Protection Device PV Surge Arrester SPD Surge Protective Device 2P 3

FAQ:


Q: Are you Trading Company or Manufacturing Factory?
A: we are a professional manufacture with 17 years production experience and 15 years export experience.

Q: I am interested in your products, could I get sample?
A: We are glad to offer samples.

Q: How about the Delivery time?
A: It is aboout 15-30 days.

Q: How can you guarantee the product quality?
A: We have the quality control system, and it's been followed strictly. All product will be inspected before packing for double checking, no matter where our product deliver to, we will be responsible for its quality, customer's satisfaction is very important for us, it matters whether we have next order.



Q: I'd like to know your Payment terms.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment. About other payment terms, let's make a specific negotiation according to our order situation.
