Place of Origin: | China Zhejiang |
Brand Name: | BRITEC |
Certification: | TUV/CB/CE/ROHS/ISO9001 |
Model Number: | BR-50GR 385 1P |
Minimum Order Quantity: | 10 Piece/Pieces |
---|---|
Packaging Details: | EXPORT PACKING |
Delivery Time: | Shipped in 15 days after payment |
Payment Terms: | L/C, D/A, T/T, Western Union |
Supply Ability: | 50000 Piece/Pieces Month |
Item Name: | Type 1 Surge Protective Device | Type: | Ac Surge Protector |
---|---|---|---|
Place Of Origin: | Zhejiang, China | Pole Number: | 1P 2P 3P 4P 1+1 3+1 |
Packing: | Carton | Current Wave: | 10/350 µs |
Color: | White | Warranty: | 5 Years |
Technology: | Spark Gap Technology | MOQ: | 10 PCS |
Highlight: | 350 µs Surge Protective Arrester,50kA Type Surge Protective Arrester,Ac Din Rail Protective Arrester |

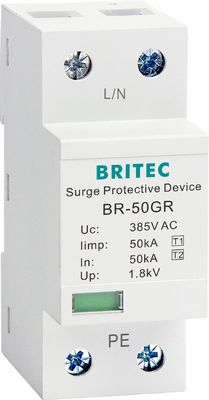

50 kA Surge Protection Devices single surge protector type 1 SPD
Surge Protection Devices Technology characteristic:
Specification | BR-50GR 1P |
Item name | Surge Arrester |
SPD dassification according to EN61643-11 | Type 1 + Type 2 |
SPD dassification according to IEC61643-11 | Class I + Class II |
Max continuous 0perating a.c. voltage Uc | 385V |
Lightning impulse current (10/350µs) limp | 50kA |
Norminal discharge current (8/20µs) In | 50kA |
Maximun discharge current (8/20µs) Imax | 160kA |
Voltage protection level Up | ≤1.8V |
Follow current extinguishing capability a.c. lifi | 3kA rms |
Max. backup fuse | 500A gG |
Response time tA | ≤100ns |
For mounting on | 35mm Din rail |
Degree of protection | IP20 |
Payment term | 30% deposit in advance,70% before shipment,100% T/T in advance |
Certificate | CB/CE/ROHS/ISO9001 |
Logo | Customized logo available |
Design ability | We can supply sample,OEM&ODM is welcome (Design,Engineering, Photographing,Sample, Production) |
Surge Protection Devices Dimension:
Application:
For the lowest price please contact us.
Other type for choose:
1,Maximum discharge current:20kA,40kA,80kA,100kA,120kA,200kA
2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P
3,Maximum continuous operating voltage: 275V,320V,385V ,440V,550V,800V,1000V
Our Main Product
Type 1 surge protection device.
Type 2 surge protection device.
Type 1 + Type 2 surge protection device.
Type 3 surge protection device.
