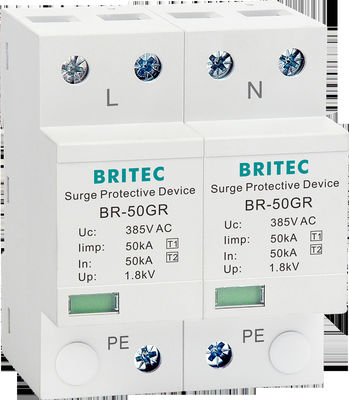

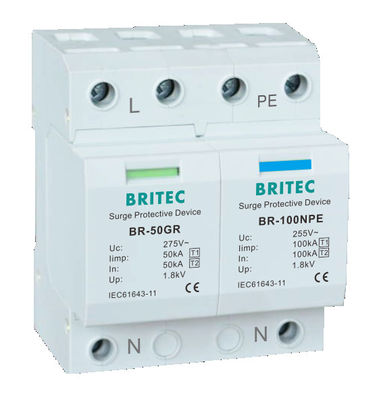

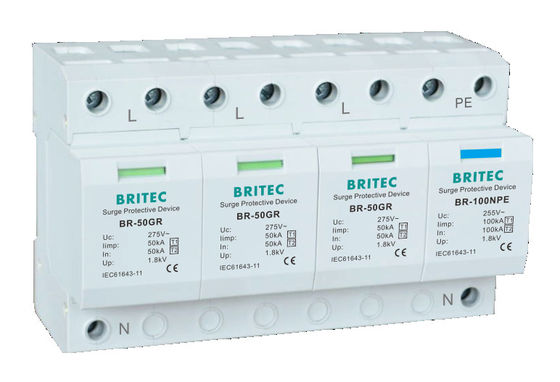

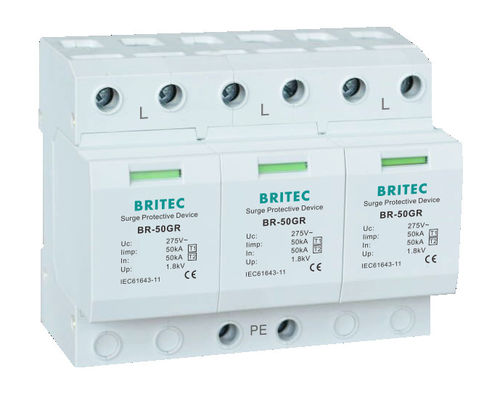

BR-50GR 1+1 Ac Surge Protective Device spd t1 Surge Arrestors thunder protection

BR-50GR 1+1 Ac Surge Protective Device spd t1 Surge Arrestors thunder protection

  • BR-50GR 1+1 Ac Surge Protective Device  spd t1 Surge Arrestors thunder protection
  • BR-50GR 1+1 Ac Surge Protective Device  spd t1 Surge Arrestors thunder protection
  • BR-50GR 1+1 Ac Surge Protective Device  spd t1 Surge Arrestors thunder protection
  • BR-50GR 1+1 Ac Surge Protective Device  spd t1 Surge Arrestors thunder protection
BR-50GR 1+1 Ac Surge Protective Device  spd t1 Surge Arrestors thunder protection
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV
Model Number: BR-50GR 1+1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Ac Surge Protective Device Type: T1+T2
Waveform: 10/350 Pole Number: 1+1
Package: Carton Package Iimp: 50kA
TA: ≤25ns Tu: -40℃-80℃
Delivery Time: Shipped In 10 Days After Payment
Highlight:

BR-50GR Surge Protective Device

,

1+1 Ac Surge Protective Device

,

DIN Rail SPD Surge Arrestors

50ka 1 single Phase Type 1 Surge protective device TUV BR-50GR 1+1



Class 1 Type 1 Surge Protection Device Features:


Benefits

The impulse current of 50kA per pole (10/350 µs wave) satisfies all requirements for overvoltage surge protection



Easy installation

DIN rail mounting

Max nominal discharge phase 160 kA

Excellent protection for electrical panel



surge arrester series has been specifically designed to offer surge protection for electrical equipment.



Class 1 Type 1 Surge Protection Device Technology characteristic:

BR-50GR 1+1 Ac Surge Protective Device  spd t1 Surge Arrestors thunder protection 0



Specification BR-50GR 1+1
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 1
SPD dassification according to IEC61643-11 Class I
Max continuous 0perating a.c. voltage                     Uc 275V
Lightning impulse current (10/350µs)                     limp 50kA
Norminal discharge current (8/20µs)                         In 50kA
Voltage protection level                                            Up ≤1.8kV
Follow current extinguishing capability a.c.                lfi 3kA rms
Max. backup fuse 500A gG
Response time                                                          tA ≤100ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range                                   Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Enclosure material Thermoplastic UL94-V0



Dimension:



BR-50GR 1+1 Ac Surge Protective Device  spd t1 Surge Arrestors thunder protection 1



Class 1 Type 1 Surge Protection Device Application:



• Being total current arresters between the neutral and protective conductor in TT systems, the single-pole N-PE lightning current arresters of type BR-50GR NPE help to ensure fulfilling the requirements for protection of personnel and equipment in "1+1"  circuits.

• The BR-50GR NPE coordinated NPE lightning current arresters hold a special position among total current arresters. Due to their low voltage protection level, they can be directly coordinated with N-PE surge arresters of the BR-50GR surge arresters without additional decoupling coil.
• BR-50GR NPE devices are suitable for connecting conductors and busbars, allowing comfortable wiring with other DIN rail mounted terminals.

• Widely used in mobile communication base stations, microwave communication bureaus/stations, telecommunication rooms, industrial mining, civil aviation, financial securities and other power systems.



Certification:



BR-50GR 1+1 Ac Surge Protective Device  spd t1 Surge Arrestors thunder protection 2



Company profile:



We have own factory. Most of staff have worked for our company for over 3 years. We have own designer, accept OEM & ODM, we can offer design service, high quality picture, video and so on. Our sale team members have several years' experience on the global trading. We have our own models of over hundreds until now.

BR-50GR 1+1 Ac Surge Protective Device  spd t1 Surge Arrestors thunder protection 3

BR-50GR 1+1 Ac Surge Protective Device  spd t1 Surge Arrestors thunder protection 4



BR-50GR 1+1 Ac Surge Protective Device  spd t1 Surge Arrestors thunder protection 5

FAQ:



Q1: Are you Factory?
  A: Yes, we are a 20 year factory with SPDs.



Q2: What’s the MOQ and Lead Time?
  A: Our MOQ is 100pcs/Model. And the lead time is 20 days after confirmed the payment.



Q3: What is the payment and shipping?
  A: We accept T/T, Paypal, L/C etc. And the shipping: DHL, FedEx, TNT, EMS, UPS ect.



Q4: What should I do if I can not find the model in your shop?
  A: We have more than 100+ models including AC surge arrester, solar surge protector, data lightning protector and LED lightning arrester. Please contact our team for more models.



Q5: How about the after sale service?
  A: If any crack on delivering, we would try best to help to solve it, refund, resend goods, or other ways.
