BR-LED-10INS LED Fixtures Surge Protectors 10KV Outdoor SPD LED Street Lighting SPD

BR-LED-10INS LED Fixtures Surge Protectors 10KV Outdoor SPD LED Street Lighting SPD

  • BR-LED-10INS LED Fixtures Surge Protectors 10KV Outdoor SPD LED Street Lighting SPD
  • BR-LED-10INS LED Fixtures Surge Protectors 10KV Outdoor SPD LED Street Lighting SPD
  • BR-LED-10INS LED Fixtures Surge Protectors 10KV Outdoor SPD LED Street Lighting SPD
  • BR-LED-10INS LED Fixtures Surge Protectors 10KV Outdoor SPD LED Street Lighting SPD
BR-LED-10INS LED Fixtures Surge Protectors 10KV Outdoor SPD LED Street Lighting SPD
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/UL/CB/CE/ROHS/ISO9001
Model Number: BR-LED-10INS
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15 days after payment
Payment Terms: T/T, D/P
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Item Name:: Street Lighting SPD Protection Level: T3
Operating Voltage/Un: 100~275VAC Applications: Tunnel Lighting
In: 5kA Open-Circuit Voltage/Uoc: 10kV
Operating Temperature Range: -40℃~+85℃ HFeatures: Waterproof & Dustproof
Application: Power Supply System Used With: Street Light
High Light:

LED Fixtures Surge Protectors Dustproof

,

10KV Fixtures Surge Protectors

,

SPD Fixtures Surge Protectors



275V Outdoor LED SPD 10kA Surge Protection led street light surg protector



LED Surge Protection Device Modules 10kA Outdoor SPD Feature:


Operating Voltage/Un:100~275VAC

Max Continuous Operating Voltage/MCOV:320VAC

Rated load current/IL:5A

Nominal Discharge Current/In:5kA(8/20us)

Max Discharge Current/Imax:10kA(8/20us)

Open-Circuit Voltage/Uoc:10kV(1.2/50us)

Voltage Protection Level/Up:1.6kV(L~NL~PEN~PE)

Operating temperature range:-40℃~+85℃

Place of Origin:CN

Metal Oxide Varistor (MOV) technology and high energy discharge tube (gdt) technology with a state-of-the-art failure disconnect network



Applications

• Outdoor and Commercial LED Lighting
• Roadway lighting
• Traffic lighting
• Digital signage
• Wall wash lighting
• Parking garage lighting


LED Surge Protection Device Modules 10kA Outdoor SPD Product Details:

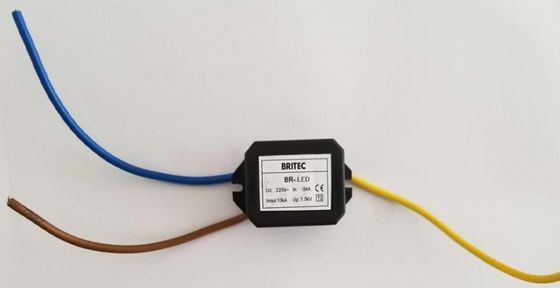

BR-LED-10INS LED Fixtures Surge Protectors 10KV Outdoor SPD LED Street Lighting SPD 0



  BR-LED-10INS
SPD classification according to EN61643-11 Type 2 + Type 3
SPD classification according to IEC 61643-11 Class II + Class III
Nominal a.c. voltage                                                  Un 230V
Max. continuous operating a.c. voltage                     Uc 275V
Nominal discharge current (8/20us)                            In 5kA
Maximum discharge current (8/20μs)                     Imax 10kA
Voltage protection level                                              Up ≤1. 6kV
Response time                                                            tA ≤100ns
Operating temperature range                                     Tu -40°C~ +80°C
Operating state / fault indication LED/ green / red
Enclosure materail                    Thermal plastic UL94-V0



Dimension:

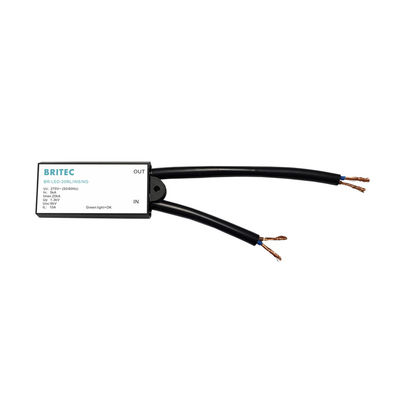

BR-LED-10INS LED Fixtures Surge Protectors 10KV Outdoor SPD LED Street Lighting SPD 1

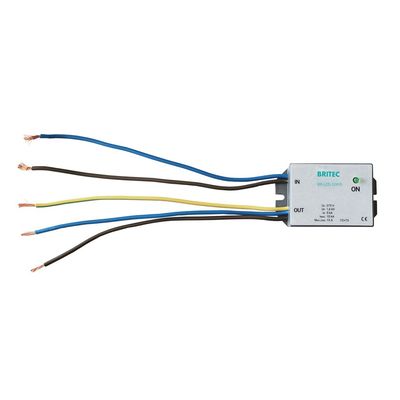

BR-LED-10INS LED Fixtures Surge Protectors 10KV Outdoor SPD LED Street Lighting SPD 2


LED Surge Protection Device


Application:

Protect LED lighting from transients and surges generated by lightning and switching transients.

Suitable for harsh environments, including outdoor mounting, and provides high performance circuit protection that saves valuable LED lighting assets, reduces maintenance, prevents unwanted failures and decreases degradation damage for longer lifetimes.


Why is protection needed?

LED technology has become the reference technology for lighting, mainly because of four characteristics: efficiency, versatility, energy savings and longer life. In spite of these benefits, the technology has a number of drawbacks: Higher cost of implementation (initial investment) and internal electronics (LED optics and drivers), much more complex and sensitive to overvoltage than in the case of traditional light sources. For these reasons, the use of overvoltage protection systems is a very cost-effective investment, since it extends the life of the luminaires, ensures the cost effectiveness (ROI) of LED projects and reduces the costs of maintenance and replacement of luminaires. A surge protection device (SPD) connected upstream of the driver, complements the intrinsic immunity of the luminaire, creating much more robust protection against the effects of lightning and overvoltage.


Surge protection for LED Advantages:


1). We have our own factory.

2). Same design, better quality; Same quality, better price; Same price, better after-sale service.

3). Quality control: we execute strictly according to ISO9001:2001 quality control system, with experienced technician help us reduce

     the defective percentage effectively, control the quality.

4). Delivery on time: Professional machine, excellent technology, experienced workers, good management ensure us delivery on time.

5). After-sale service: We believe order is not the end of enquiry, conversely.We pay attention to customer’s experience, hope to establish

     long-term cooperative relationship.

6). Various Style, suitable for customers' demand

7). We can do OEM&ODM, produce according to your original sample or pictures.





BR-LED-10INS LED Fixtures Surge Protectors 10KV Outdoor SPD LED Street Lighting SPD 3

Company Information:



We are a manufacturer specialized in surge protection device have been 17 years. Our company has a skill to develop various kinds of SPD. Warmly welcome domestic and overseas friends visit our company and cooperate with us to develop new kinds of lightning arrester. Our products sell well mainly in European, south American, Africa and Middle East narkets. With good quality,the products win high praise from customers. We expect to have the sincere cooperation with you soon!

BR-LED-10INS LED Fixtures Surge Protectors 10KV Outdoor SPD LED Street Lighting SPD 4
BR-LED-10INS LED Fixtures Surge Protectors 10KV Outdoor SPD LED Street Lighting SPD 5

Certificate:

Our company has ISO9001 certificate, our products have passed CE, CB, TUV type test.

BR-LED-10INS LED Fixtures Surge Protectors 10KV Outdoor SPD LED Street Lighting SPD 6


FAQ:


Q1: Are you a manufacturer or trading company?
  A: We are a manufacturer of SPDs with more than 17 years experience.


Q2: Do you have any MOQ for order?
  A: MOQ is 1pcs.



Q3: What's your terms of payment?
  A: 30% T/T, balance before shipment.



Q4: Can you customize my products or put my logo on your products?
  A: Yes, we offer OEM and ODM services. Please inform us formally before production.



Q5: What's the lead time?
  A: Usually, sample orders takes 7-10 business days. For mass production, it largely depends on order quantity. Please let us know your requirement, we will do our best to deliver the goods in time.
