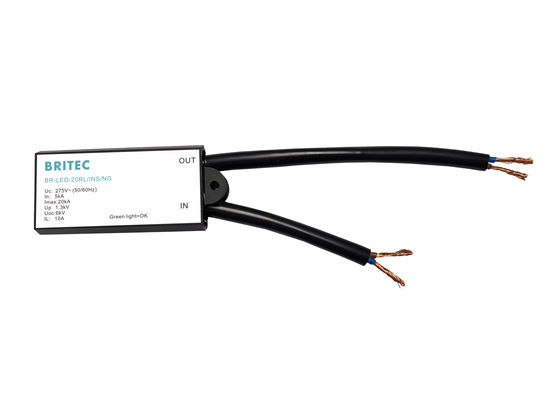

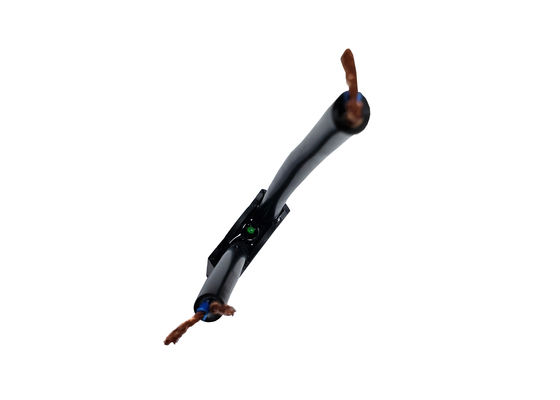

6kv Arrester Surge Protective Devices For LED Street Lighting SPD Type 2+3

6kv Arrester Surge Protective Devices For LED Street Lighting SPD Type 2+3

  • 6kv Arrester Surge Protective Devices For LED Street Lighting SPD Type 2+3
  • 6kv Arrester Surge Protective Devices For LED Street Lighting SPD Type 2+3
6kv Arrester Surge Protective Devices For LED Street Lighting SPD Type 2+3
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-LED-20RL/INS/NG
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Product Name: 6kV SPD OEM/ODM: YES
Nominal Discharge Current: 5kA Protection Level(Up): ≤1.3kV
Size: 13.5*37.6*81mm Type: Type 2+3
Material:: Thermal Plastic UL94-V0 Uc: AC 275V
Imax: 20kA Standard:: IEC61643-11 / EN 61643-11
High Light:

LED Street Lighting Surge Arrester SPD

,

6kv Surge Arrester

,

Type2+3 Surge Arrester Protective Device

6kv Surge Arrester for LED Street Lighting SPD for Protection of LED Lights Surge Protective Devices



6kv Surge Arrester for LED Street Lighting SPD Product Description:

Surge protective devices connected between the power supply and the LED light for protection of LED light from surge and transient over-voltage caused by the inducted lightning stroke or by internal power systems.
Compact size
Customized products are also available.


6kv Surge Arrester for LED Street Lighting SPD Product Details:



  BR-LED-20RL/INS/NG
SPD classification according to EN61643-11 Type 2+3
SPD classification according to IEC 61643-11 Class II+III
Nominal a.c. voltage                                                  Un 230V
Max. continuous operating a.c. voltage                     Uc 275V
Nominal discharge current (8/20us)                            In 5kA
Max. discharge current (8/20us)                             Imax 20kA
Nominal current                                                           IL 10A
Voltage protection level                                              Up ≤1.3kV
Combined impulse                                                   Uoc 6kV
Response time                                                            tA ≤100ns
Operating temperature range                                     Tu -40℃—80℃
Operating state / fault indication green/non
Section of cables 1.5mm²
Length of cables 110mm/150mm
Degree of protection IP65


Dimension:

6kv Arrester Surge Protective Devices For LED Street Lighting SPD Type 2+3 0



6kv Surge Arrester for LED Street Lighting SPD Features:

Standards: EN 61643-11 (Surge Protection Devices).
The surge absorption current can reach 6kv
Simple installation in applications with limited space.

Why need LED surge protector?

LED lamp posts can be directly struck by lightning since they are usually in an exposed position. In some cases, this can affect entire streets, since the lights are interconnected within the power grid. If there are no suitable protective devices in place, the lightning current quickly can be dispersed across the entire installation and incur significant damage. Accordingly, suitable surge protection should be used as protection against damage from lightning or surge voltages.

Company information:

Wenzhou Britec Electric Co., Ltd., founded in 2003, is located in Yueqing city, Zhejiang, China. The enterpriseis dedicated in research and production of surge protection, which is always in with high-tech driven, customer requirement guided, professional, concentrate, supplying high quality, cost-efficient products. Now products are well-received in domestic and oversea market, product quality and after-sales service has got highly praise from customers.

6kv Arrester Surge Protective Devices For LED Street Lighting SPD Type 2+3 1

Workshop:

6kv Arrester Surge Protective Devices For LED Street Lighting SPD Type 2+3 2

FAQ:

Q1. What Certificates Have You Got?
A1: Our company is verified by ISO9001, and products approved by CE, CB, TUV etc.

Q2. What is your terms of payment?
A2: T/T 30% as deposit, 70% before delivery.

Q3. What is your terms of delivery?
A3: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
A4: Generally, it will take 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A5: Yes, we could produce by your samples or technical drawings. We are power in R&D.
