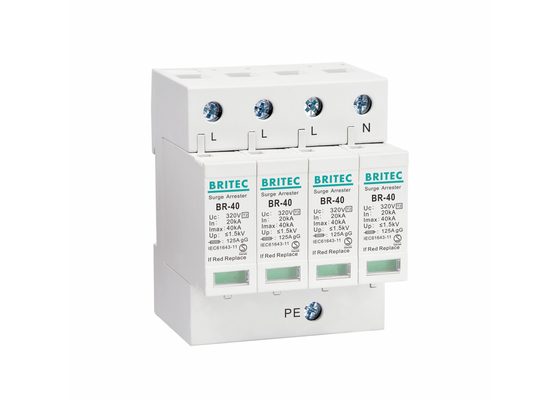

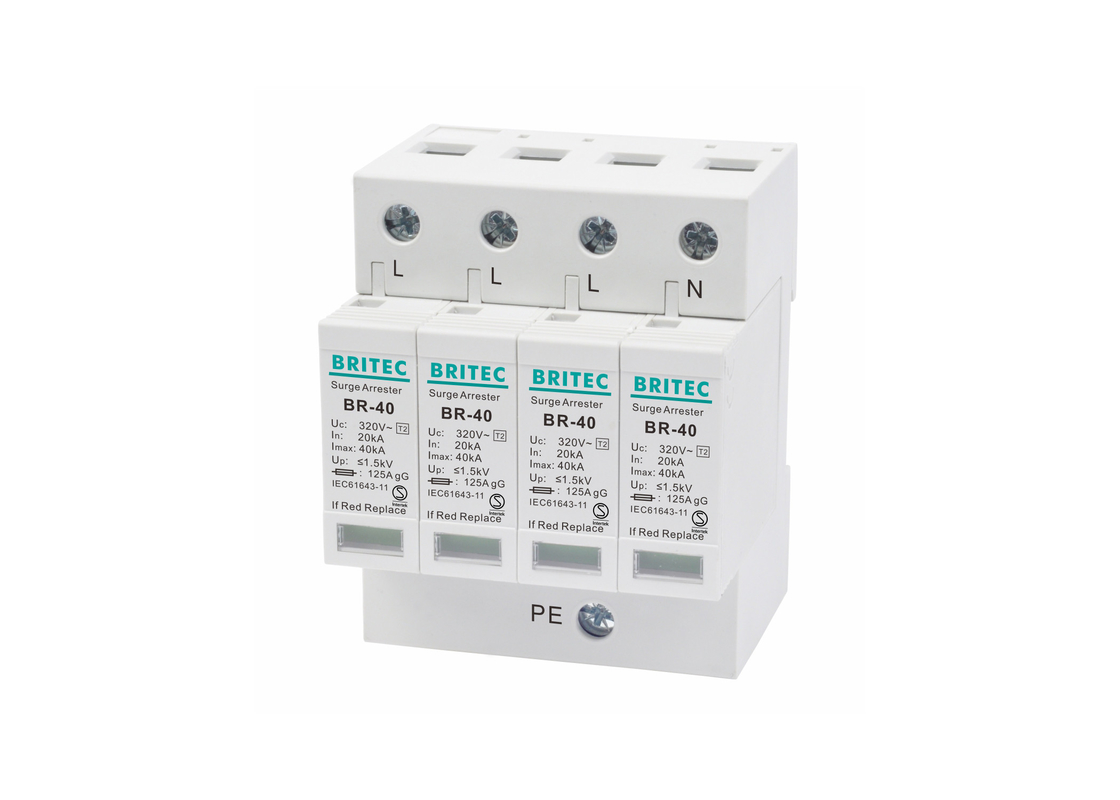

40ka Surge Protector Device AC Over Voltage Lightning Arrester

40ka Surge Protector Device AC Over Voltage Lightning Arrester
40ka Surge Protector Device AC Over Voltage Lightning Arrester 40ka Surge Protector Device AC Over Voltage Lightning Arrester

Large Image :  40ka Surge Protector Device AC Over Voltage Lightning Arrester

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-40 4P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now

40ka Surge Protector Device AC Over Voltage Lightning Arrester

Description
Size: Small Shape: Cuboid
Test Standards: IEC 61643-11 / EN61643-11 Voltage Rating: 150V / 275V / 320V / 385V / 440V
In: 20kA Imax: 40kA
Poles Number: 4P Material: Thermoplastic UL94-V0
Class: Type 2 Item: Surge Arrester
Keyword: Lightning Protection Keyword: Lightning Protection
Highlight:

40ka Surge Arrester Protection Device

,

AC Voltage Surge Arrester Protection Device

,

Surge Lightning 320V Protection Device



40ka Surge Protector Patent AC Over Voltage Protection Lightning Arrester



40ka Surge Protector Patent AC Over Voltage Protection Description:

• Surge protection device (SPD) is an indispensable device for lightning protection of electronic equipment.
• Complete unit consisting of a base part and plug-in protection modules
• It is used to limit the instantaneous overvoltage of the power line to the voltage range that the equipment or system can withstand, or a powerful lightning current drains into the ground to protect the protected equipment or system from impact and damage.



40ka Surge Protector Patent AC Over Voltage Protection Product Details:



  BR150 40 4P BR275 40 4P BR320 40 4P BR385 40 4P BR440 40 4P
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage      Uc 150V 275V 320V 385V 440V
Nominal discharge current (8/20us)             In 20kA 20kA 20kA 20kA 20kA
Max. discharge current(8/20μs)              Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level                              Up   ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA                       Up ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time                                            tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range                     Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication    green / red       green / red     green / red      green / red      green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20



Dimension:



40ka Surge Protector Device AC Over Voltage Lightning Arrester 0



40ka Surge Protector Patent AC Over Voltage Protection Installation:

• Installed at the junction of LPZ1 or LPZ2 and LPZ3, 35mm standard rail is installed, and the multi-strand wire connecting enamel is 4-35mm2.
• The SPD must be protected at each pole-using a fuse or miniature circuit breaker or a dedicated backup protector.
• Applicable to household distribution boxes, computer equipment, information equipment. Electronic equipment and control equipment in front of or in the nearest outlet box.

About shipping:

1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
4. If you have not received your shipment within the period, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
5. We seller are not in charge of import duty, buyer is responsible for that. Any dispute caused by this is unreasonable.



40ka Surge Protector Device AC Over Voltage Lightning Arrester 1



Workshop:



40ka Surge Protector Device AC Over Voltage Lightning Arrester 2



FAQ:



Q1: What is the MOQ of each item?
  A: Usually the MOQ is 100 pcs. If this product we have in stock, there is no limitation for MOQ.



Q2: Do you have any guarantee for products?
  A: Yes, sure. All the product have two years guarantee. Any problem feel free to contact us.



Q3: Are you a factory or a trading company?
  A: We are a factory with trading lines. We have in SPD field for more than 21 yeas. We have full experience of producing surge protection.



Q4: How to control the quality?

  A: Each New product must be test before shipment. Our production line full with professional skills and strict stardars.



Q5: How long does it take to delivery?
  A: If have stock, within one week we can finished all the delivery. If no have stock, normally around 3 weeks. It is depends on order's quantity.
