| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | none |
| Model Number: | BRPV-20RS/670 |
| Minimum Order Quantity: | 1 piece / pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | 15 days after payment |
| Payment Terms: | T/T, D/P |
| Supply Ability: | 50000 pieces per month |
| Item Name:: | PCB Mounted SPD | Function:: | Lightning Protection |
|---|---|---|---|
| Protection Level: | T2 | Rated Voltage: | 670V |
| Application: | Soldered On PCB | Up: | 2.0kV |
| Imax: | 20kA | Housing Material: | UL94-V0 |
| Degree Of Protection: | IP20 | ||
| Highlight: | Mini Surge Protector For Inverter,DC SPD 20ka Surge Protector,PCB mounted SPD |
||
Features

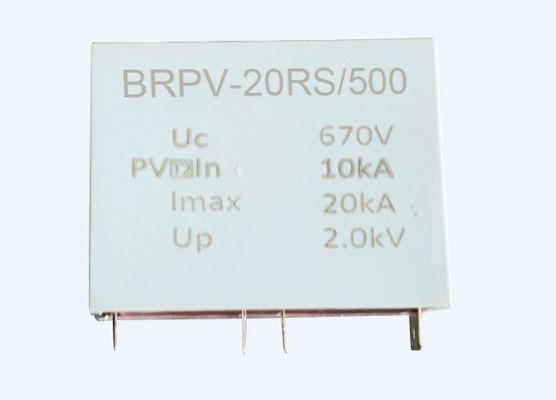

The BRPV-20RS/500 series of PCB mounted power supply lightning protection devices are designed for the pcb miniaturized SPD combination lightning protection products, and are designed for the strict requirements of no fire under extreme power frequency overload. It is used for equipment to prevent lightning overvoltage and transient overvoltage damage to components on the circuit.

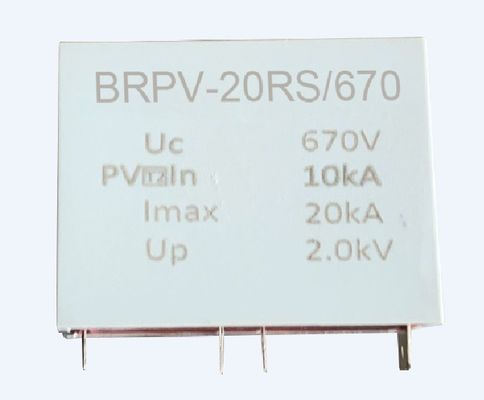

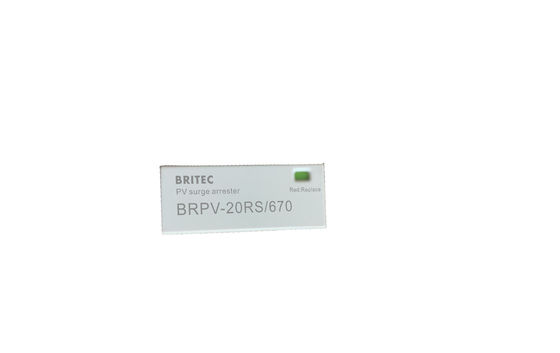

670 Vdc dc surge protection device PCB mount SPD:
Product characteristics
| Model | BRPV-20RS/500 | BRPV-20RS/670 |
| IEC Class | Class II | Class II |
| UL level | Type 4 | Type 4 |
| Max.continuous operating voltage of PV system Ucpv (V) | 500V | 670V |
| Nominal discharge current (8/20μs) In (kA) | 10kA | 10kA |
| Max. discharge current (8/20) Imax (kA) | 20kA | 20kA |
| Voltage protection level Up (kV) | 1.8kV | 2.0kV |
| Remote signaling | NC (optional) | NC (optional) |
| Flame retardant rating | UL94 V-0 | |
| Capacity of withstand short circuit (A) Iscpv | 50A | |
| Operating temperature& humidity | Temperature:-40℃-85℃; Relate humidity: 95%(25℃) | |
|
|
35*14.4*26.5(not including the pin) | |
| Mounting | Soldered onto PCB | |
| Protection rating | IP 20 | |
| Housing material | PBT | |
Applications
• Outdoor and Commercial LED Lighting
• Roadway lighting
• Traffic lighting
• Digital signage
• Wall wash lighting
• Parking garage lighting
• Flood lighting
• Tunnel lighting
• Street lighting
Surge protection for LED Advantages:
1). We have our own factory.
2). Same design, better quality; Same quality, better price; Same price, better after-sale service.
3). Quality control: we execute strictly according to ISO9001:2001 quality control system, with experienced technician help us reduce
the defective percentage effectively, control the quality.
4). Delivery on time: Professional machine, excellent technology, experienced workers, good management ensure us delivery on time.
5). After-sale service: We believe order is not the end of enquiry, conversely.We pay attention to customer’s experience, hope to establish
long-term cooperative relationship.
6). Various Style, suitable for customers' demand
7). We can do OEM&ODM, produce according to your original sample or pictures.
Company Information:
We are a manufacturer specialized in surge protection device have been 17 years. Our company has a skill to develop various kinds of SPD. Warmly welcome domestic and overseas friends visit our company and cooperate with us to develop new kinds of lightning arrester. Our products sell well mainly in European, south American, Africa and Middle East narkets. With good quality,the products win high praise from customers. We expect to have the sincere cooperation with you soon!
FAQ:
Q1: Are you a manufacturer or trading company?
A: We are a manufacturer of SPDs with more than 17 years experience.
Q2: Do you have any MOQ for order?
A: MOQ is 1pcs.
Q3: What's your terms of payment?
A: 30% T/T, balance before shipment.
Q4: Can you customize my products or put my logo on your products?
A: Yes, we offer OEM and ODM services. Please inform us formally before production.
Q5: What's the lead time?
A: Usually, sample orders takes 7-10 business days. For mass production, it largely depends on order quantity. Please let us know your requirement, we will do our best to deliver the goods in time.
