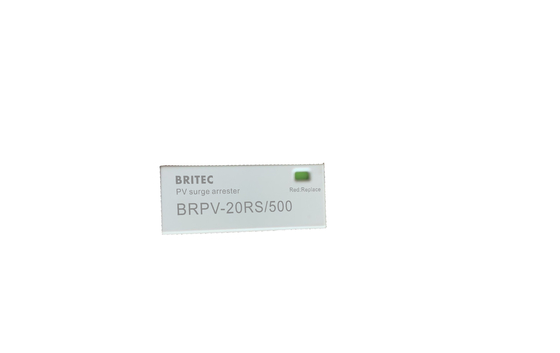

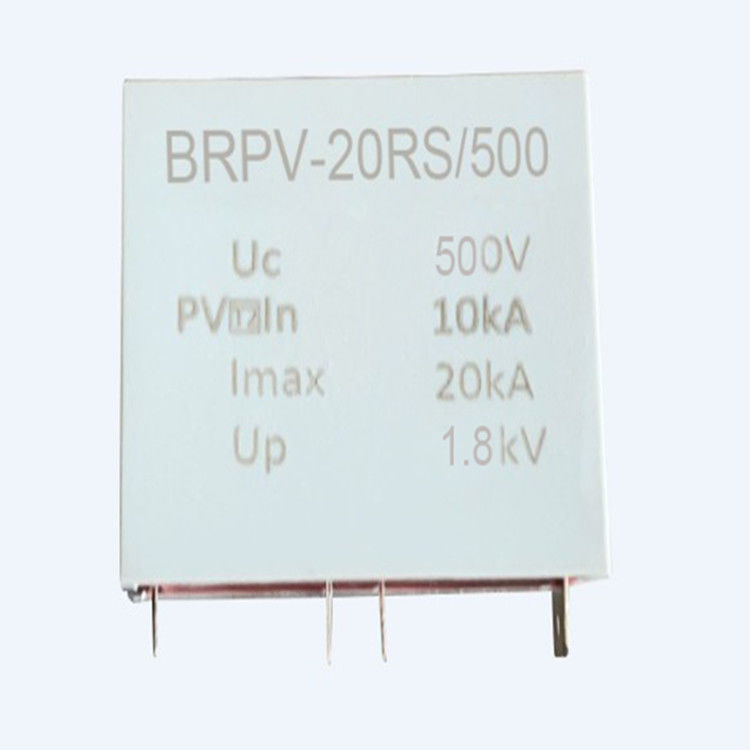

BRPV - 20RS 500V DC Surge Protection Device PCB Mount SPD

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	none
Model Number:	BRPV-20RS/500

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15 days after payment
Payment Terms:	T/T, D/P
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Item Name::	PCB Mount SPD	Protection Level:	T2
Rated Voltage:	500V	Up:	1.8kV
In:	10kA	Imax:	20kA
TA:	≤1ns	Housing Material:	UL94-V0
Degree Of Protection:	IP20
High Light:	650 VDC Surge Protection Device , 10kv surge protector , dc PCB mount SPD

Features

The BRPV-20RS/500 series of PCB mounted power supply lightning protection devices are designed for the pcb miniaturized SPD combination lightning protection products, and are designed for the strict requirements of no fire under extreme power frequency overload. It is used for equipment to prevent lightning overvoltage and transient overvoltage damage to components on the circuit.

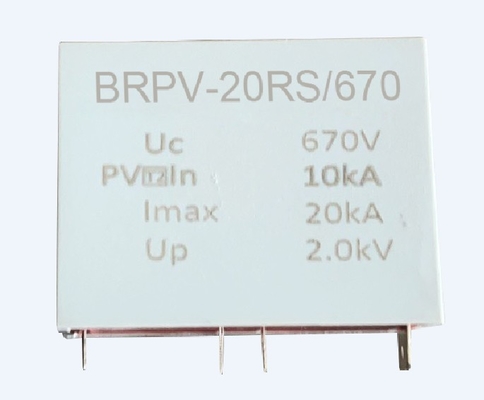

670 Vdc dc surge protection device PCB mount SPD:

Product characteristics

Model	BRPV-20RS/500	BRPV-20RS/670
IEC Class	Class II	Class II
UL level	Type 4	Type 4
Max.continuous operating voltage of PV system Ucpv (V)	500V	670V
Nominal discharge current (8/20μs) In (kA)	10kA	10kA
Max. discharge current (8/20) Imax (kA)	20kA	20kA
Voltage protection level Up (kV)	1.8kV	2.0kV
Remote signaling	NC (optional)	NC (optional)
Flame retardant rating	UL94 V-0
Capacity of withstand short circuit (A) Iscpv	50A
Operating temperature& humidity	Temperature:-40℃-85℃; Relate humidity: 95%(25℃)

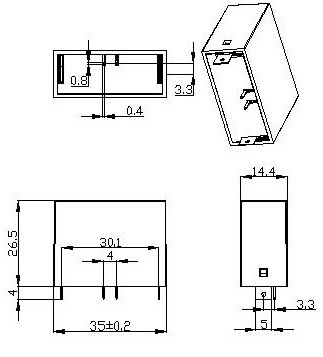

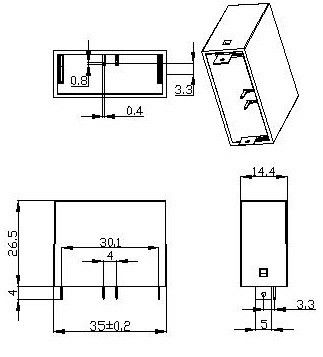

Dimensions (1P) (W×L×H)	3514.426.5(not including the pin)
Mounting	Soldered onto PCB
Protection rating	IP 20
Housing material	PBT

Why is protection needed?

• LED technology has become the reference technology for lighting, mainly because of four characteristics: efficiency, versatility, energy savings and longer life. In spite of these benefits, the technology has a number of drawbacks: Higher cost of implementation (initial investment) and internal electronics (LED optics and drivers), much more complex and sensitive to overvoltage than in the case of traditional light sources. For these reasons, the use of overvoltage protection systems is a very cost-effective investment, since it extends the life of the luminaires, ensures the cost effectiveness (ROI) of LED projects and reduces the costs of maintenance and replacement of luminaires. A surge protection device (SPD) connected upstream of the driver, complements the intrinsic immunity of the luminaire, creating much more robust protection against the effects of lightning and overvoltage.

Surge protection for LED Advantages:

1). We have our own factory.

2). Same design, better quality; Same quality, better price; Same price, better after-sale service.

3). Quality control: we execute strictly according to ISO9001:2001 quality control system, with experienced technician help us reduce

the defective percentage effectively, control the quality.

4). Delivery on time: Professional machine, excellent technology, experienced workers, good management ensure us delivery on time.

5). After-sale service: We believe order is not the end of enquiry, conversely.We pay attention to customer’s experience, hope to establish

long-term cooperative relationship.

6). Various Style, suitable for customers' demand

7). We can do OEM&ODM, produce according to your original sample or pictures.

BRPV - 20RS 500V DC Surge Protection Device PCB Mount SPD 3

Company Information:

We are a manufacturer specialized in surge protection device have been 17 years. Our company has a skill to develop various kinds of SPD. Warmly welcome domestic and overseas friends visit our company and cooperate with us to develop new kinds of lightning arrester. Our products sell well mainly in European, south American, Africa and Middle East narkets. With good quality,the products win high praise from customers. We expect to have the sincere cooperation with you soon!

Certificate:

Our company has ISO9001 certificate, our products have passed CE, CB, TUV type test.

FAQ:

Q1: Are you a manufacturer or trading company?
A: We are a manufacturer of SPDs with more than 17 years experience.

Q2: Do you have any MOQ for order?
A: MOQ is 1pcs.

Q3: What's your terms of payment?
A: 30% T/T, balance before shipment.

Q4: Can you customize my products or put my logo on your products?
A: Yes, we offer OEM and ODM services. Please inform us formally before production.

Q5: What's the lead time?
A: Usually, sample orders takes 7-10 business days. For mass production, it largely depends on order quantity. Please let us know your requirement, we will do our best to deliver the goods in time.
