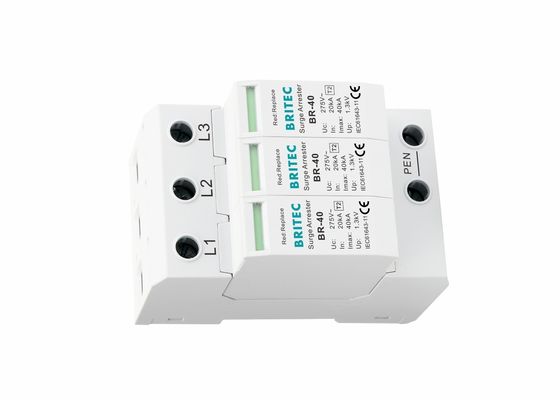

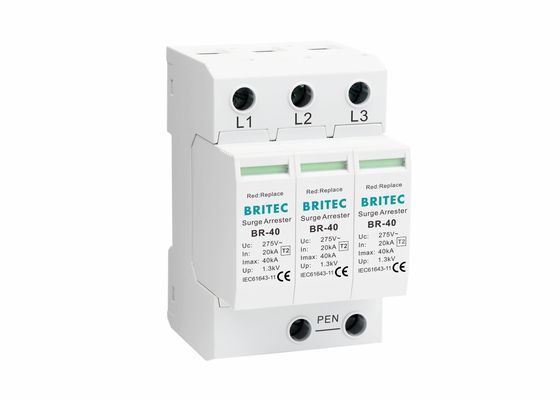

3phase Type 2 Lightning Protector 40kA SPD Surge Protective Devices Pluggable Surge Protection

3phase Type 2 Lightning Protector 40kA SPD Surge Protective Devices Pluggable Surge Protection

  • 3phase Type 2 Lightning Protector 40kA SPD Surge Protective Devices Pluggable Surge Protection
  • 3phase Type 2 Lightning Protector 40kA SPD Surge Protective Devices Pluggable Surge Protection
3phase Type 2 Lightning Protector 40kA SPD Surge Protective Devices Pluggable Surge Protection
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: TY-40 3P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Type: Power Surge Arrester Installation: Parallel Arrester
Test Standards: IEC 61643-11 / EN61643-11 Uc: 150V / 275V / 320V / 385V / 440V
In: 20kA Imax: 40kA
Material: Thermal Plastic UL94-V0 TA: ≤25ns
Mounting On: 35mm Din Rail Pole No.: 3P
High Light:

Type 2 Surge arrester

,

3phase Type 2 Lightning Protector

,

SPD Surge Protective Devices



Type 2 Lightning Protector 320V 40kA SPD 3phase Surge Protective Devices Pluggable Surge Protection



Type 2 Lightning Protector 320V 40kA SPD 3phase Surge Protective Devices Feature:

Low voltage protection level with varistor-based protective circuit
Surge protective devices SPD type 2 protects low-voltage consumer systems against surge voltages as they are tested as SPD type 2 according to IEC 61643-11.
Powerful disconnect device provides optimum protection against overvoltage
Electric ratings: 230/400V, AC50/60Hz
Easy testing and insulation measurement thanks to pluggable protective devices



Type 2 Lightning Protector 320V 40kA SPD 3phase Surge Protective Devices Product Details:



  TY150 40 3P TY275 40 3P TY320 40 3P TY385 40 3P TY440 40 3P
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage      Uc 150V 275V 320V 385V 440V
Nominal discharge current (8/20us)             In 20kA 20kA 20kA 20kA 20kA
Max. discharge current(8/20μs)              Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level                              Up   ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA                       Up ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time                                            tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range                     Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication    green / red       green / red     green / red      green / red      green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20



Dimension:

3phase Type 2 Lightning Protector 40kA SPD Surge Protective Devices Pluggable Surge Protection 0

Type 2 Lightning Protector 320V 40kA SPD 3phase Surge Protective Devices Application:

Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage
TY-40 3P SPD is for general-purpose three-phase AC power supply
It can be widely used in various electronic circumstances and power distribution systems in LPZ1 to LPZ2 zones, and can effectively protect the electrical equipment from being damaged by lightning and transient overvoltage.


Type 2 Lightning Protector 320V 40kA SPD 3phase Surge Protective Devices Advantage:



• Selection of high-quality varistors, stable and reliable performance.

• High lightning current capability, 25ns response speed.
• Energy saving, environmental protection, easy installation, no special maintenance.
• Reversible chassis to allow cable entry from above or below.
• Fast delivery.



Our Services:



• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.



Certification:



3phase Type 2 Lightning Protector 40kA SPD Surge Protective Devices Pluggable Surge Protection 1



Company view:



Wenzhou Britec Electric CO., LTD is a manufacturer founded in 2003 which is a new products development, mass-producing and branding sales’ company, specializing in surge protection device. Our factory have been granted ISO9001 management system certification and we have developed more than 100 types of products, our products have been approved by CE, TUV, and CB.



3phase Type 2 Lightning Protector 40kA SPD Surge Protective Devices Pluggable Surge Protection 2



Production line:



3phase Type 2 Lightning Protector 40kA SPD Surge Protective Devices Pluggable Surge Protection 3



FAQ:



Q1. Can I have a sample order for SPDs?
  A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?
  A: Sample needs 7 days, mass production time needs 3 weeks.



Q3. Do you have any MOQ limit for surge protector?
  A: Yes, our MOQ is 100pcs.



Q4. How do you ship the goods and how long does it take to arrive?
  A: We usually ship by TNT DHL, UPS, FedEx or EMS. It usually takes 7 days to arrive. Airline and sea shipping also optional.



Q5. Is it OK to print number on the surge protective device?
  A: Yes. Please inform us formally before our production and confirm it firstly based on our sample.
