| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BRPV2-600 |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | 15-20 days after payment |
| Supply Ability: | 10000 per week |
| Item: | Solar Spd | Certificate: | CE,CB,TUV |
|---|---|---|---|
| Operating Temperature: | -40°C - 80°C | Delivery Time: | 10 Days |
| Packing: | Carton | Where Use: | PV System |
| MOQ: | 5 Pc | Warranty: | 5 Years |
| High Light: | DIN Rail Mounting Surge Protector,2 Mod PV Surge Protector,lightning solar PV Surge Arrester |
||

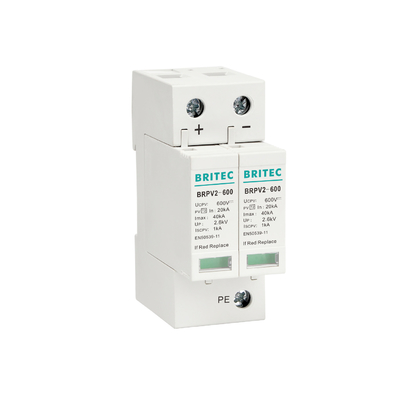

2 Mod DC 600V Surge Protective Device PV surge arrester
PV surge arrester Feature:
Usage: solar power

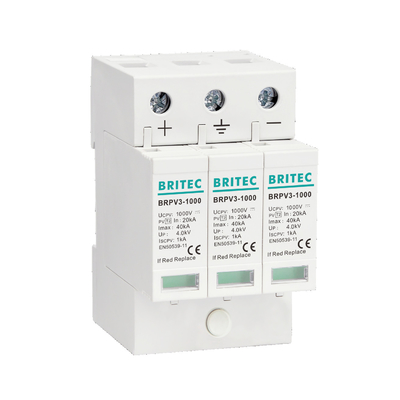

Pole: 2P 3P
voltage protection level (up):2.6KV
Max. discharge current(10/350μs):40kA
Packaging Details: standard export box package
PV Surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).
PV surge arrester Product Details:
| BRPV2 600 | |
| SPD classification according to EN61643-31 | Type 2 |
| SPD classification according to EN50539-11 | Class II |
| Max. continuous operating dc voltage Ucpv | 600V |
| Nominal discharge current (8/20us) In | 20kA |
| Max. discharge current (8/20us) Imax | 40kA |
| Voltage protection level [(DC+/DC-)→PE] Up | ≤2.6kV |
| Response time tA | ≤25ns |
| Operating temperature range Tu | -40℃-80℃ |
| Operating state / fault indication | green / red |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermoplastic UL94-V0 |
| Degree of protection | IP20 |
PV surge arrester Dimension:
PV surge arrester Advantage:
● For equipotential bonding of positive and negative busbars of photovoltaic systems and elimination of transient
overvoltage that originates during the atmospheric discharges or switching processes.
● For Photovoltaic protection against surges at the boundaries from lightning protection.
For the lowest price please contact us.
Other type for choose:
1,Maximum discharge current:20kA,40kA,80kA,100kA,120kA,200kA
2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P
3,Maximum continuous operating voltage: 275V,320V,385V ,440V,550V,800V,1000V
Our Main Product
Type 1 surge protection device.
Type 2 surge protection device.
Type 1 + Type 2 surge protection device.
Type 3 surge protection device.
Our Services:
Why need surge arrester?
Installation instruction:
Company profile:
Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!
Our certificate:
We got CB, CE, TUV,RoHS Certificate:
Payment:
| Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment. |
| FOB | |||
| CIF | 30% T/T in advance, paid the balance against copy of B/L. | ||
| L/C | L/C amount above 50,000 usd, we can accept L/C at sight. | ||
| Paypal | Amount lower than 5000usd. | ||
| Delivery Time | 15-30 days after receiving deposit. | ||
FAQ:
Q1: How long is your products warranty?
A: The warranty period of our products is 5 Years.
Q2: How about inspection?
A: We have the whole inspection system from raw material to end products.
Q3: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.
