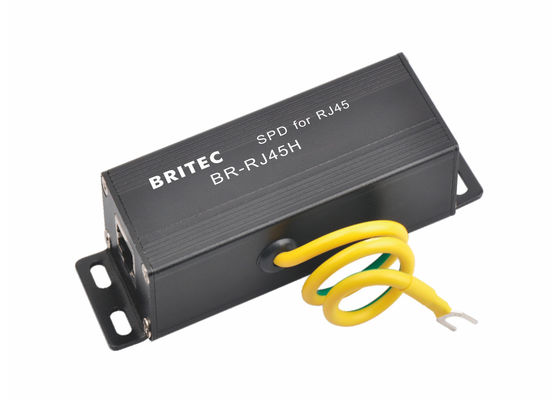

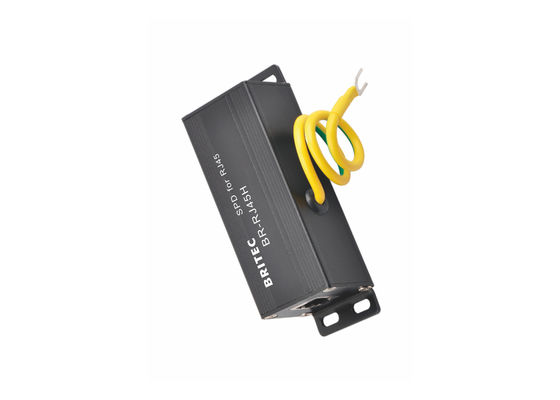

Ethernet RJ45 Port Surge Protective Device 300 Mbps Networking Surge Protector

Ethernet RJ45 Port Surge Protective Device 300 Mbps Networking Surge Protector

  • Ethernet RJ45 Port Surge Protective Device 300 Mbps Networking Surge Protector
  • Ethernet RJ45 Port Surge Protective Device 300 Mbps Networking Surge Protector
Ethernet RJ45 Port Surge Protective Device 300 Mbps Networking Surge Protector
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BRRJ45H-8L
Payment & Shipping Terms:
Minimum Order Quantity: 200 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Place Of Origin: Zhejiang, China (Mainland) Connector Type: RJ45
Model Number: BRRJ45H-8L Product Name: Ethernet Surge Protector
Tu: -40℃-80℃ Un: 5V
IL: 0.5A In: 5kA
Connection: RJ45 Socket Bandwidth: 300 Mbps
High Light:

Ethernet RJ45 Port Surge Protective Device

,

5V ethernet surge protector

,

300 Mbps Networking Surge Protector

Ethernet RJ45 Port Sure Protective Device Networking Surge Protector



Ethernet RJ45 Port Sure Protective Device Networking Surge Protector About this item:

BRRJ45H-8L SPD is specially designed to avoid failures in data transfer between equipment inside the same network.
Over voltage protection equipment
It protects the input of the electronic circuits of the network cards against harms due to transient currents.
To protect equipment from induced over-voltage, operating overvoltage and caused by the electrostatic discharge damage.
BRRJ45H-8L is a protector with RJ45 input and output connectors, with a withstanding current up to 5kA for line.
Flow capacity is big, fast response
It’s designed to protect individually equipment connected to the computers network.


Ethernet RJ45 Port Sure Protective Device Networking Surge Protector Product Details:



  BRRJ45H-8L
Test standards IEC61643-21
Nominal voltage                                                                                               Un 5V
Max.continuous operating d.c.voltage                                                             Uc 6V
Max.continuous operating a.c.voltage                                                             Uc 4V
Nominal current                                                                                                 IL 0.5A
C2 Nominal discharge current (8/20us) per line                                                In 5kA
Voltage protection level [line-line]                                                                    Up ≤30V
Voltage protection level [line-PG]                                                                    Up ≤500V
Response time [line-line]                                                                                  tA ≤1ns
Response time [line-PG]                                                                                   tA ≤100ns
Operating temperature range                                                                           Tu -40℃…+80℃
Connection (input/output) RJ45 socket 8line
Bandwidth             300 Mbps
Insertion Loss ≤0.3dB
Enclosure material aluminium alloy
Degree of protection IP20



Dimension:



Ethernet RJ45 Port Surge Protective Device 300 Mbps Networking Surge Protector 0



Ethernet RJ45 Port Sure Protective Device Networking Surge Protector Main features:

Using multilevel protection circuit, low residual.
Network surge protective device suits for network equipment, telecommunications, router, HUB, MODEM etc.
Ground through special craft processing, to avoid interference.
Sensitive communication network equipment, to protect from lightning overvoltage and induced overvoltage, electrostatic discharge caused by damage.
Low residue, small volume, convenient installation.

Ethernet RJ45 Port Sure Protective Device Networking Surge Protector Installation:

• It should be properly grounded to work. The Ethernet ground wire (11 Inch - 12 AWG) on the surge protector needs to be connected to ground through the shortest path.
• The Line-to-Line Ethernet surge protection mode helps protect against short circuits between different nodes of the network system while the Line-to-Ground mode protects against short circuits between the network node and the earth.

Company information:

Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.

Ethernet RJ45 Port Surge Protective Device 300 Mbps Networking Surge Protector 1

Certificate:

Ethernet RJ45 Port Surge Protective Device 300 Mbps Networking Surge Protector 2

Payment & Shipping:

Ethernet RJ45 Port Surge Protective Device 300 Mbps Networking Surge Protector 3Ethernet RJ45 Port Surge Protective Device 300 Mbps Networking Surge Protector 4

FAQ:


Q1: What is your terms of payment?
A1: T/T, Paypal etc.



Q2: What is your terms of delivery?
A2: EXW, FOB, CIF, CNF.



Q3: How about your delivery time?
A3: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.



Q4: Can you produce according to the samples?
A4: Yes, we can produce by your samples or technical drawings.



Q5: Is samples available?

A5: Samples are available, but it is not free.
