|Place of Origin:||China|
|Model Number:||BR-40 1P|
|Minimum Order Quantity:||1 Piece/Pieces|
|Packaging Details:||EXPORT PACKING|
|Delivery Time:||Shipped in 15 days after payment|
|Payment Terms:||L/C, D/A, T/T, Western Union|
|Supply Ability:||50000 Piece/Pieces Month|
|Item Name:||Surge Protection Devices Arrester||Model Numbers:||BR-40 1P|
|EN Type:||Type2||Shipping Term:||TNT DHL FEDEX EMS UPS|
|Number Of Pole:||1p||Response Time:||25ns|
|Communication Module:||Built-in||MOQ:||10 PCS|
Surge Voltage Protector,
275V Type 2 Surge Arrester,
Type 2 Surge Protection Devices Arrester

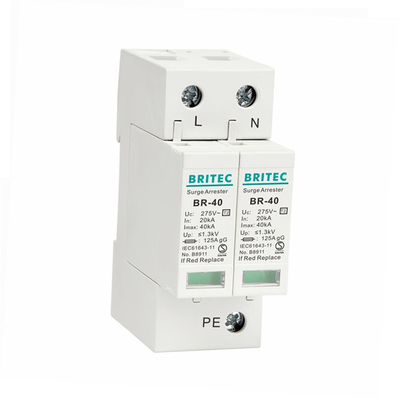

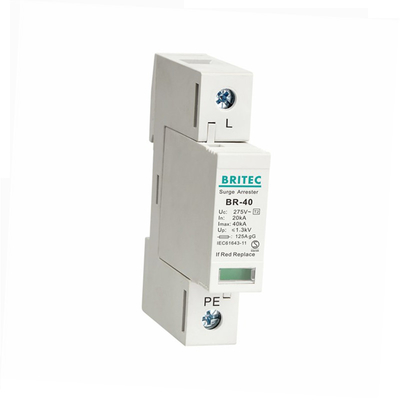

40kA 275V surge voltage protector tvss spd Type 2 surge arrester
Type 2 surge arrester Features:
1. One-phase protection for TN-S system
2. Pluggable module, easy for installation and maintenance
3. High discharge capacity, quick response
4. Double thermal disconnection devices, providing more reliable protection
5. Green window will change when fault and also provide remote alarm control at the same time
Type 2 surge arrester Technology characteristic:
|Max. continuous operating a.c. voltage Uc||275V|
|Nominal discharge current (8/20us) In||20kA|
|Maximum discharge current (8/20us) Imax||40kA|
|Voltage protection level Up||≤1.3kV|
|Response time tA||≤25ns|
|Max. backup fuse||125A|
|Operating temperature range Tu||-40℃—80℃|
|Cross-section area (Min.)||4mm2|
|Cross-section area (Max.)||35mm2|
|For mounting on||35mm Din rail|
|Enclosure material||Thermoplastic UL94-V0|
IEC 61643-11, EN 61643-11
Type 2 surge arrester Dimension:
Type 2 surge arrester Application:

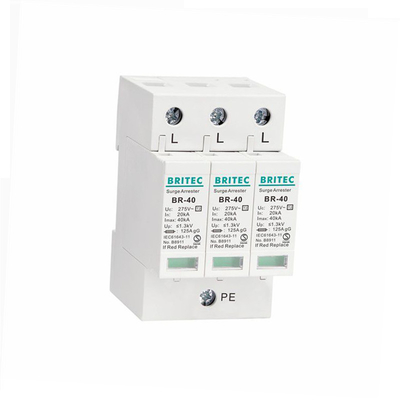

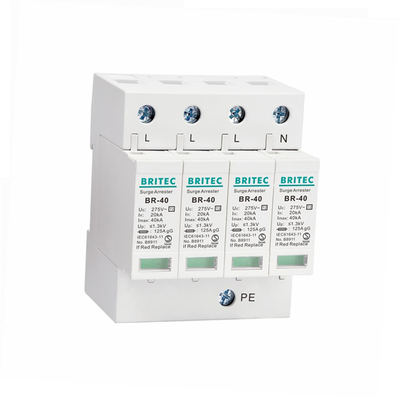

Application from 1 to 4 poles
Protection against surge and overvoltage spikes
Good protection level
High discharge capacity
CB, CE, TUV,RoHS Certificate:
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: What’s your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
Contact Person: Lucky Zhu
