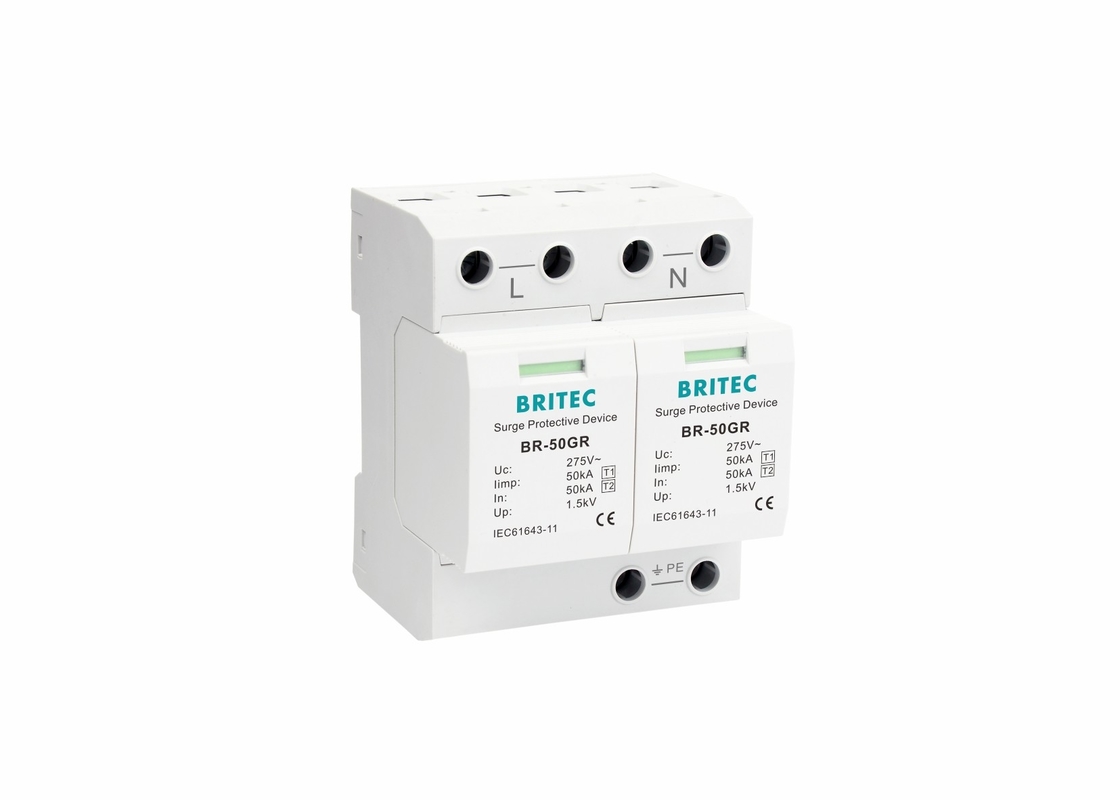

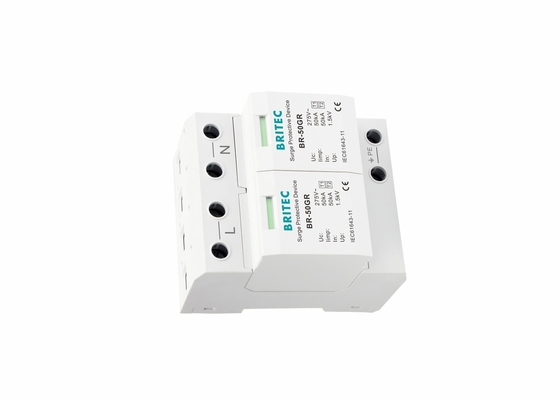

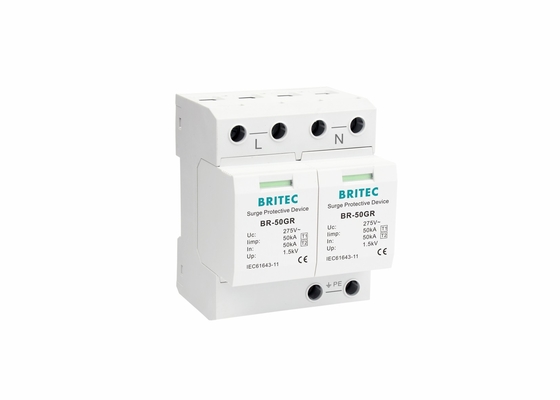

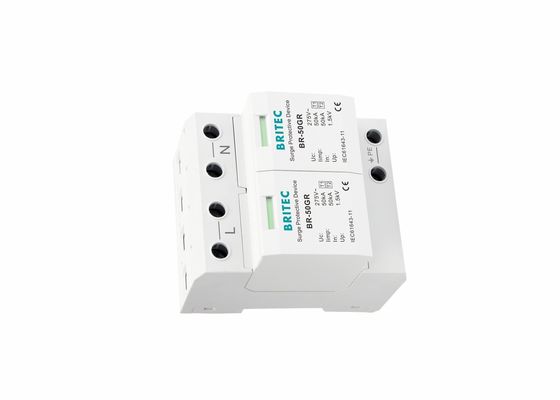

Type 1 Lighting Arrestor 2P 50kA Surge Protection Devices Low Voltage Class I

Type 1 Lighting Arrestor 2P 50kA Surge Protection Devices Low Voltage Class I

  • Type 1 Lighting Arrestor 2P 50kA Surge Protection Devices Low Voltage Class I
  • Type 1 Lighting Arrestor 2P 50kA Surge Protection Devices Low Voltage Class I
Type 1 Lighting Arrestor 2P 50kA Surge Protection Devices Low Voltage Class I
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-50GR 2P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Price: USD 15-80 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Type 1 Surge Arrester Type: Ac Surge Protector
Operating Voltage: Low Voltage Protection Class: SPD Classification According To EN61643-11 Type 1
Pole Number: 1P,2P,3P,4P,1+1,3+1 Uc: 385V
Iimp: 50kA In: 50kA
Enclosure: Thermalplastic UL94-VO Application: AC System
High Light:

Type 1 Lighting Arrestor

,

50kA Surge Protection Devices

,

low voltage Type 1 Lighting Arrestor



Type 1 Lighting Arrestor 2P 50kA Surge Protection Devices 385V Class I SPD



Type 1 Lighting Arrestor 2P 50kA Surge Protection Devices Feature:

Protecting low-voltage consumers' installations against direct lightning discharges
High discharge capacity
Protection class: Type 1, Class I
BR-50GR type 1 is designed to discharge high current surges
Pole number: 1P, 2P, 3P, 4P, 1+1, 3+1
This surge protective device is characterized by its capacity to withstand impulse current with 10/350 µs wave form which simulates direct impact coming from a natural lightning current.
Surge protectors are used to guard sensitive equipment from voltage spike



Dimension:






Type 1 Lighting Arrestor 2P 50kA Surge Protection Devices Product characteristics:



Specification BR-50GR 2P
Item name  Surge Arrester
SPD dassification according to EN61643-11 Type 1
SPD dassification according to IEC61643-11 Class I
Max continuous 0perating a.c. voltage                     Uc 385V
Lightning impulse current (10/350µs)                     limp 50kA
Norminal discharge current (8/20µs)                         In 50kA
Voltage protection level                                            Up ≤2.5kV
Follow current extinguishing capability a.c.               lifi 3kA rms

Max. backup fuse

500A gG

Response time                                                          tA

≤100ns

For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range                                   Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.)    35mm²

Enclosure material

Thermal plastic UL94-V0



Type 1 Lighting Arrestor 2P 50kA Surge Protection Devices Application:

BR-50GR series surge protective device (in short SPD, surge suppressor surge arrester)is suitable for TN-S TN-C-S TT IT etc. power supply system of AC 50/60Hz.
Type 1 SPDs are placed at the entrance point of the installation, in the main distribution board for a global protection of this installation.

Type 1 Lighting Arrestor 2P 50kA Surge Protection Devices Main benefits:

The impulse current of 50kA per pole (10/350 µs wave) satisfies all requirements for overvoltage surge protection
Spark gap technology
The early creation of the electric arc by its electronic ignition device reduces the protection level Up to an optimum value of 2,5kV



Workshop:


Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.


Type 1 Lighting Arrestor 2P 50kA Surge Protection Devices Low Voltage Class I 1


Company Information:


Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


Type 1 Lighting Arrestor 2P 50kA Surge Protection Devices Low Voltage Class I 2


Exhibition:


Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.


Type 1 Lighting Arrestor 2P 50kA Surge Protection Devices Low Voltage Class I 3


Certifications:


Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.


Type 1 Lighting Arrestor 2P 50kA Surge Protection Devices Low Voltage Class I 4


Product Uses:

Britec have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.



FAQ:

Q1: How about your experience?

A: We have our own  factory and in-house test laboratory, our R&D department have more than 17 years experiences.


Q2: What's your advantage?

A: Fast delivery: 3 weeks. Large scale production drive cost down: 300,000 pieces per year. Qulaity recognized :cooperate with transnational company.


Q3: Is custom design package acceptable?

A: Inner box and out carton are made as per international standard. We can make packaging according to customer's need.


Q4: Could you do OEM for us?

A: Sure, we accept OEM and ODM order, please supply with the letter of Authorization for the brand.


Q5: How about warranty?

A: 2 years.



Q6: Could I buy 1pc sample first and small order?

A: Of course, support sample order, especially for new customers under certain condition.


Q7: How long make a sample?

A: 7 days.


Q8: How does your company do regarding the quality control?

A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. IQC inspects the components, the patrol inspection is done during production and all the goods to be tested 100% before leaving the factory..
