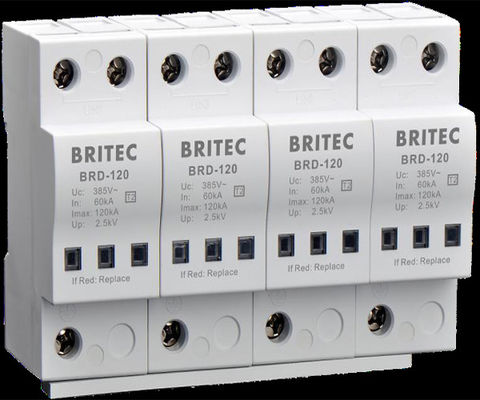

BRD-120 120kA Type 2 Surge Protection Device 4 Pole 3 Phase Surge Arrester

BRD-120 120kA Type 2 Surge Protection Device 4 Pole 3 Phase Surge Arrester

  • BRD-120 120kA Type 2 Surge Protection Device 4 Pole 3 Phase Surge Arrester
BRD-120 120kA Type 2 Surge Protection Device 4 Pole 3 Phase Surge Arrester
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/UL/CB/CE/ROHS/ISO9001
Model Number: BRD-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: 4 Poles Low Voltage Lightning Protection Model Numbers: BRD-120
SPD According: Type 2 MOQ: 5 PCS
SPD Configuration: 4P I Max: 120kA
Customized: Yes Shipping Term: TNT DHL FEDEX
OEM/ODM: Available
High Light:

120kA Surge Protection Device

,

4 Pole 3 Phase Surge Arrester

,

ODM Surge Protection Device

40kA 4 poles surge arrestor single phase lightning surge protector



We can produce according to your requirements.

Contact us get the lowest price



4 poles surge protect device  Features:



Voltage protection level Up upto 2.5 kV, suitable for protection of all terminal equipments.



A surge protection device (SPD) or simply a surge protector is a device used to ensure protection against transient surges. It is used to protect the household and commercial applications from voltage transients. It is connected in parallel to the load it has to protect.





4 poles surge protect device  Technology characteristic:

BRD-120 120kA Type 2 Surge Protection Device 4 Pole 3 Phase Surge Arrester 0



  BRD-120
Max. continuous operating a.c. voltage                              Uc 385V
Nominal discharge current (8/20us)                                    In 60kA
Maximum discharge current (8/20us)                             Imax 120kA
Voltage protection level                                                      Up ≤2.5kV
Response time                                                                    tA ≤25ns
Max. backup fuse 125A
Operating temperature range                                             Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Test standards



  IEC 61643-11, EN 61643-11


4 poles surge protect device  Dimension:



BRD-120 120kA Type 2 Surge Protection Device 4 Pole 3 Phase Surge Arrester 1



4 poles surge protect device Application:

surge protectors are used to guard sensitive equipments from voltage spike.



4 poles surge protect device Certificate:


CB, CE, TUV,RoHS Certificate:


BRD-120 120kA Type 2 Surge Protection Device 4 Pole 3 Phase Surge Arrester 2

Company information:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.

BRD-120 120kA Type 2 Surge Protection Device 4 Pole 3 Phase Surge Arrester 3

Production line:

BRD-120 120kA Type 2 Surge Protection Device 4 Pole 3 Phase Surge Arrester 4
BRD-120 120kA Type 2 Surge Protection Device 4 Pole 3 Phase Surge Arrester 5

Laboratory equipment:

BRD-120 120kA Type 2 Surge Protection Device 4 Pole 3 Phase Surge Arrester 6

BRD-120 120kA Type 2 Surge Protection Device 4 Pole 3 Phase Surge Arrester 7

Shipping:

BRD-120 120kA Type 2 Surge Protection Device 4 Pole 3 Phase Surge Arrester 8

FAQ:


Q1: Selection of surge protector

Al: The grading of the surge protector (commonly known as lightning protection) Is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition. Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of EN 61643-11 / IEC 61643-11 is 25 ka (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly to suppress the overvoltage.



Q2: Are you a lightning surge protectors factory or lightning surge protectors trading company?

A2: We are a lightning surge protectors manufacturer.



Q3: Warranty and services:

A3:1. Warranty 5 years

2. lightning surge protectors products and accessories have been tested 3 times before ship out.

3. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.



Q4: How can I get some lightning surge protectors samples?

A4: We are honored to offer you lightning surge protectors samples, pis contact our staff, and leave detailed contact information, we promise to keep your information confidential.



Q5: Is the sample available and free?

A5: Sample is available, but the sample cost should be payable by you. The cost of the sample will be refunded after further order.



Q6: Do you accept customized order?

A6: Yes, we do.
