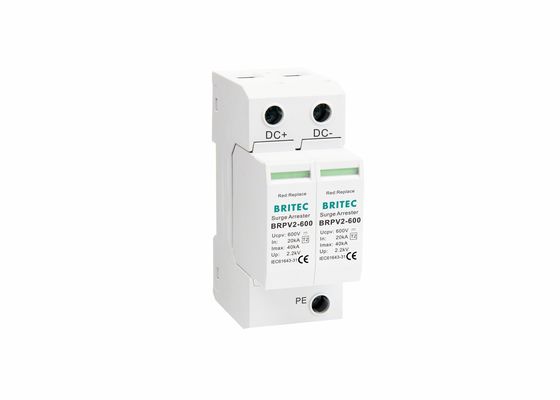

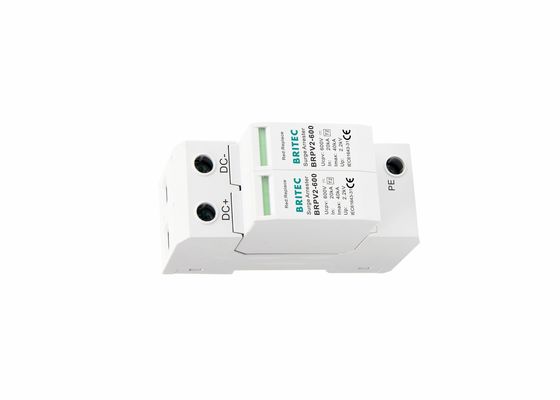

DC 600V Surge Protection Device PV Solar SPD Type 2 TUV Certified

DC 600V Surge Protection Device PV Solar SPD Type 2 TUV Certified

  • DC 600V Surge Protection Device PV Solar SPD Type 2 TUV Certified
  • DC 600V Surge Protection Device PV Solar SPD Type 2 TUV Certified
DC 600V Surge Protection Device PV Solar SPD Type 2 TUV Certified
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BRPV2 600
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Product Name: PV Surge Protective Device Solar Device SPD Material: Thermalplastic UL94-V0
Rated Voltage: 600V Nominal Discharge Current: 20kA
Max. Discharge Current: 40kA Indicated: Normal: Green; Abnormal: Red
Working Temperature: -40℃—80℃ Class: Type 2
For Mounting On: 35mm Din Rail Standard: IEC61643 / EN50539-11
High Light:

DC 600V Surge Protection Device

,

PV Solar Surge Protection Device

,

SPD Type 2 Surge Protection Device

DC Surge Protector Device 600V PV Solar SPD Type 2 TUV Certified BRPV2-600 Hot Sale



About DC Surge Protector Device 600V PV Solar SPD:

Solar DC SPD protects the solar equipment like solar panels and solar inverter from surges damage or overvoltage.
It is installed in the main power system at DC circuit, to protect against the indirect lighting current, direct lighting current or other instantaneous over voltage.
Improve the PV system safety for a longer PV system life.


DC Surge Protector Device 600V PV Solar SPD Product Details:



  BRPV2 600
SPD classification according to EN61643-11 Type2
SPD classification according to EN50539-11 Class II
Max.continuous operating d.c.voltage            Ucpv 600V
Nominal discharge current(8/20us)                      In 20kA
Max. discharge current(8/20us)                       Imax 40kA
Voltage protection level [(DC+/DC-)→PE]          Up ≤2.6kV
Response time                                                     tA ≤25ns
Operating temperature range                              Tu -40℃-80℃
Operating state/ fault indication green / red
Cross-section area(Min.) 4mm²
Cross-section area(Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermalplastic UL94-V0
Degree of protection IP20
Order Code B8013
Order Code(With remote signal) B8015


Dimension:

DC 600V Surge Protection Device PV Solar SPD Type 2 TUV Certified 0



PV standard EN 50539 and IEC 61643:

The DC SPD is developed according to PV standard EN 50539-11 and new standard IEC 61643-31: Low-voltage surge protective devices-Part 31: Requirements and tests methods for SPDs for photovoltaic applications.

DC Surge Protector Device 600V PV Solar SPD Plug-in MOV modules:

The surge protection device is consisting of a base part and 2 plug-in high energy MOV protection modules.
Module design, convenient installation, with easy electric maintains operation
Remote signaling contact for monitoring device is for options.
Adopt independent intelligence property right and high performance sensitivity resistance plates
With thermal disconnect mechanical inside for fault indication by red indicator flag.



Workshop:


Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

DC 600V Surge Protection Device PV Solar SPD Type 2 TUV Certified 1



Company Information:


Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.


DC 600V Surge Protection Device PV Solar SPD Type 2 TUV Certified 2



Exhibition:


Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.

DC 600V Surge Protection Device PV Solar SPD Type 2 TUV Certified 3



Certifications:


Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.

DC 600V Surge Protection Device PV Solar SPD Type 2 TUV Certified 4



FAQ:

Q1: What is the lead time?
A: Generally it will take about 20 days for production depending on the quantity.



Q2: How long is the warranty of your products?
A: 2-year Warranty.

Q3: Does an arrester have to be replaced after each discharge process?
A: No! Surge arresters are capable of repeatedly discharging lightning currents. This was proven in several laboratory tests and is confirmed by our long-standing field experience.
