|Place of Origin:||China|
|Model Number:||TY-40 1P|
|Minimum Order Quantity:||5 Piece/Pieces|
|Packaging Details:||EXPORT PACKING|
|Delivery Time:||Shipped in 15 days after payment|
|Payment Terms:||L/C, D/A, T/T, Western Union|
|Supply Ability:||50000 Piece/Pieces Month|
|Item Name:||Lightning Protector||Protection Level Up:||1.5 KV|
|Supplier Type:||Original Manufacturer||Product Name:||AC Lightning Protector|
|Type:||Type 2||Rated Voltage:||320V 150v 275v 385v 440v|

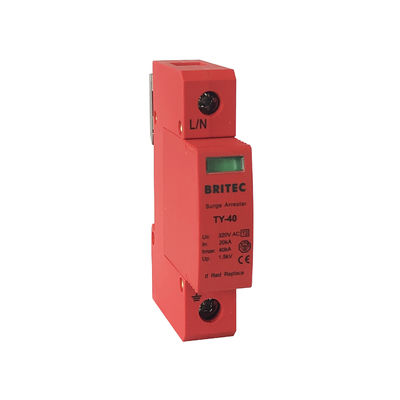

Type 2 Surge Protection Device,
40kA Surge Protection Device,
1.5kV AC Lightning Protector
BRITEC 1P Class II SPD 60kA T2 Surge Arrester AC surge lightning protector surge protection device
We can produce according to your requirements.
Contact us get the lowest price
Lightning Protector Product description
Voltage protection level Up upto 1.5 kV, suitable for protection of all terminal equipments
• Faulty cartridges can be replaced without changing the entire SPD.
• Cartridges can be replaced with mains voltage ON.
• All cartridges are marked with characteristics for ease of maintenance.
1. For installation at LPZ1 or higher, protecting low voltage equipment from surge damages.
2. Applied in modular SPD Class II (Class C) for TNS power supply system.
3. Designed according to IEC 61643-11.
BRITEC Type 2 Class C Surge Protection Parameters:
|Model Name||BR320-40 1P|
|Product Type||Surge Protection Device|
|SPD dassification according to EN61643-11||Type 2|
|SPD dassification according to IEC61643-11||Class II|
|Max. Continuous Voltage Uc||320V|
|Max. discharge current (8/20µs) Imax||40kA|
|Norminal discharge current (8/20µs) In||20kA|
|Voltage protection level Up||≤1.5kV|
|Max. backup fuse||125A gG|
|Response time tA||≤25ns|
|For mounting on||35mm Din rail|
|Degree of protection||IP20|
|Manufacturer Guarantee||5 Years Guarantee|
|No. of Phases||Single-Phase|
|Number of Poles||one pole|
|Operation temperature range||-40 ~ +80 degree|
|Remote control contacts||Optional|
BRITEC Type 2 Class C Surge Protection Application:
Protecting low-voltage consumers' installations against indirect lightning discharges
High performance varistor with thermal disconnection tripping device
Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring etc.
Protection class: Type 2,Class II
Pole number:1P,2P,3P,4P,1+1,3+1 optional
surge protectors are used to guard sensitive equipments from voltage spike
Wenzhou Britec Electronic Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.
Q1: What is the MOQ of each item?
A: Usually the MOQ is 1 pcs. If this product we have in stock, there is no limitation for MOQ.
Q2: Do you have any guarantee for products?
A: Yes, sure. All products have two years guarantee.
Q3: Are you a factory or a trading company?
A: We are a factory with trading lines. We have in SPD field for more than 17 yeas. We have full experience of producing surge protection device.
Q4: How to control the quality?
A: Each product must be test before shipment. Our production line full with professional skills and strict stardars.
Q5: How long does it take to delivery?
A: If have stock, within 1 week we can finished all the delivery. If no have stock, normally around 3 weeks, depends on order.
