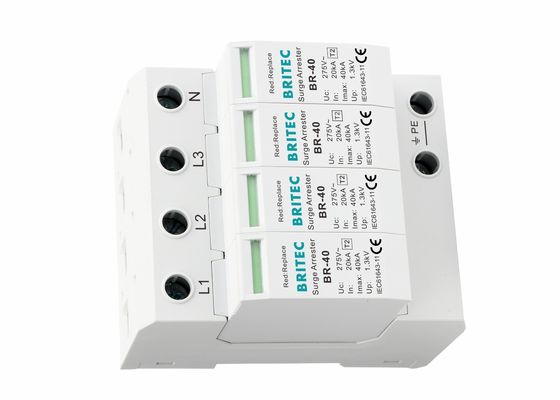

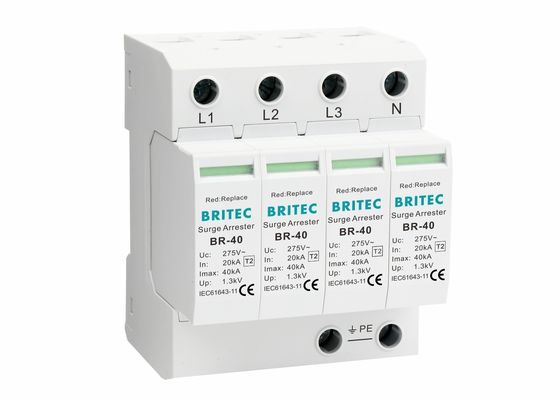

4P 40KA SPD Low Voltage Type 2 Surge Suppressor DIN Rail Mount

4P 40KA SPD Low Voltage Type 2 Surge Suppressor DIN Rail Mount

  • 4P 40KA SPD Low Voltage Type 2  Surge Suppressor DIN Rail Mount
  • 4P 40KA SPD Low Voltage Type 2  Surge Suppressor DIN Rail Mount
4P 40KA SPD Low Voltage Type 2  Surge Suppressor DIN Rail Mount
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: BR-40 320 4P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 / EN61643-11 Voltage Rating: 150V / 275V / 320V / 385V / 440V
In: 20kA Imax: 40kA
Poles Number: 4P Number Of Modules: 4
Material: Thermal Plastic UL94-V0 Small Orders: Accepted
Class: Type 2 Item: Surge Arrester
High Light:

40KA Type 2 surge suppressor

,

SPD Type 2 surge suppressor

,

SPD type 2 Surge arrester



4P 40KA SPD Safe Low Voltage surge suppressor House DIN Rail Mount Thunder Arrester​



4P 40KA SPD Safe Low Voltage surge suppressor Features:

1. Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage.
2. Cheap price surge protection device (SPD)
3. Flame retardant shell, fire proof, and safe to use.
4. Type 2 and Class II test level
5. Removable assembly, easy to plug and unplug.
6. Nominal discharge current 20kA with max. discharge current of 40kA accordingly
7. DIN rail installation, simple operation.



4P 40KA SPD Safe Low Voltage surge suppressor Product Details:



  TY150 40 4P TY275 40 4P TY320 40 4P TY385 40 4P TY440 40 4P
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage      Uc 150V 275V 320V 385V 440V
Nominal discharge current (8/20us)             In 20kA 20kA 20kA 20kA 20kA
Max. discharge current(8/20μs)              Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level                              Up   ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA                       Up ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time                                            tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range                     Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication    green / red       green / red     green / red      green / red      green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20



Dimension:



4P 40KA SPD Low Voltage Type 2  Surge Suppressor DIN Rail Mount 0



4P 40KA SPD Safe Low Voltage surge suppressor Specification:

Condition: 100% Brand New
Quality tested
Item Type: Protector
Shock-proof
Model: 4P 40kA
High performance
Uc: ~320V
Genuine price
Mounting electrical equipment to protect electrical systems and thunder and transient overvoltage.
DIN rail mounting, easy installation, compact size
Number of Poles: 4
Class 2 SPD for typical waveforms of 8/20 μs.
Up: <1.5KV

About shipping:

1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
3. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
4. If you have not received your shipment within the period, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
5. We seller are not in charge of import duty, buyer is responsible for that. Any dispute caused by this is unreasonable.



4P 40KA SPD Low Voltage Type 2  Surge Suppressor DIN Rail Mount 1



Workshop:



4P 40KA SPD Low Voltage Type 2  Surge Suppressor DIN Rail Mount 2



FAQ:



Q1: What is the MOQ of each item?
  A: Usually the MOQ is 100 pcs. If this product we have in stock, there is no limitation for MOQ.



Q2: Do you have any guarantee for products?
  A: Yes, sure. All the product have two years guarantee. Any problem feel free to contact us.



Q3: Are you a factory or a trading company?
  A: We are a factory with trading lines. We have in SPD field for more than 17 yeas. We have full experience of producing surge protection.



Q4: How to control the quality?

  A: Each New product must be test before shipment. Our production line full with professional skills and strict stardars.



Q5: How long does it take to delivery?
  A: If have stock, within one week we can finished all the delivery. If no have stock, normally around 3 weeks. It is depends on order's quantity.
