|Place of Origin:||China|
|Model Number:||BR275-60 1P+1|
|Minimum Order Quantity:||1 Piece/Pieces|
|Packaging Details:||EXPORT PACKING|
|Delivery Time:||Shipped in 15 days after payment|
|Payment Terms:||L/C, D/A, T/T, Western Union|
|Supply Ability:||50000 Piece/Pieces Month|
|Item Name:||Type 2 Lightning Surge Protectors||Condition:||100% Original|
|Type:||Type 2 SPD||Packing Unit:||1 Pc|
|Color:||White||Protection Level Up:||1.5 KV|
SPD Lightning Surge Protectors,
Type 2 Lightning Surge Protectors,
60kA Lightning Surge Protectors

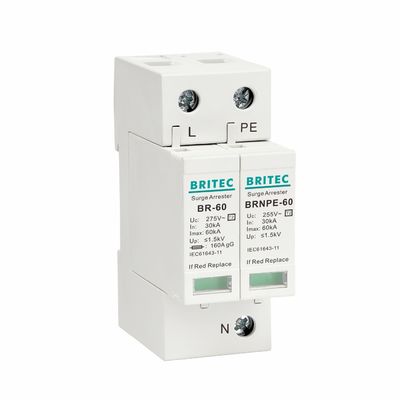

BRITEC 2P Class II SPD 60kA T2 Surge Arrester AC surge lightning protector surge protection device
We can produce according to your requirements.
Contact us get the lowest price
2 DIN-rail mounting and plug-in module design allow for easy installation and maintenance
3 Gas tube module option for type TT grounding systems
4 5 year warranty
•Faulty cartridges can be replaced without changing the entire SPD. • Cartridges can be replaced with mains voltage ON.
• All cartridges are marked with characteristics for ease of maintenance.
BRITEC Type 2 Class C Surge Protection Parameters:
|Model Name||BR275-60 1P+1|
|Product Type||Surge Protection Device|
|SPD dassification according to EN61643-11||Type 2|
|SPD dassification according to IEC61643-11||Class II|
|Max. Continuous Voltage Uc||275V|
|Max. discharge current (8/20µs) Imax||60kA|
|Norminal discharge current (8/20µs) In||30kA|
|Voltage protection level Up||≤1.5kV|
|Max. backup fuse||160A gG|
|Response time tA||≤25ns|
|For mounting on||35mm Din rail|
|Degree of protection||IP20|
|Manufacturer Guarantee||2 Years Guarantee|
|No. of Phases||Single-Phase|
|Number of Poles||two pole|
|Operation temperature range||-40 ~ +80 degree|
|Remote control contacts||Optional|
BRITEC Type 2 Class C Surge Protection Application:
Protecting low-voltage consumers' installations against indirect lightning discharges
High performance varistor with thermal disconnection tripping device
Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring etc.
Protection class: Type 2,Class II
Pole number:1P,2P,3P,4P,1+1,3+1 optional
surge protectors are used to guard sensitive equipments from voltage spike
Wenzhou Britec Electronic Co., Ltd. is a professional engaged in SPD products research and development, design, production and service in the integration of modern professional surge protection production enterprises, production base is located in Yueqing, Zhejiang, China. With OEM/ODM high standard production workshop, has a new standard of high-end production equipment, perfect supporting factory layout is reasonable, the spacious production workshop, according to the international surge protector factory standard production design, is the domestic strong r & d manufacturers.
Q1: Selection of surge protector
Al: The grading of the surge protector (commonly known as lightning protection) Is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition. Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of EN 61643-11 / IEC 61643-11 is 25 ka (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly to suppress the overvoltage.
Q2: Are you a lightning surge protectors factory or lightning surge protectors trading company?
A2: We are a lightning surge protectors manufacturer.
Q3: Warranty and services:
A3:1. Warranty 5 years
2. lightning surge protectors products and accessories have been tested 3 times before ship out.
3. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q4: How can I get some lightning surge protectors samples?
A4: We are honored to offer you lightning surge protectors samples, pis contact our staff, and leave detailed contact information, we promise to keep your information confidential.
Q5: Is the sample available and free?
A5: Sample is available, but the sample cost should be payable by you. The cost of the sample will be refunded after further order.
Q6: Do you accept customized order?
A6: Yes, we do.
Q7: What’s the delivery time?
A7: It usually takes 7-15days after confirming payment, but a specific time should be based on the order quantity.
