|Place of Origin:||China|
|Model Number:||BR275-60 3P|
|Minimum Order Quantity:||1 Piece/Pieces|
|Packaging Details:||EXPORT PACKING|
|Delivery Time:||Shipped in 15 days after payment|
|Payment Terms:||L/C, D/A, T/T, Western Union|
|Supply Ability:||50000 Piece/Pieces Month|
|Item Name:||Type 2 Surge Arrester||SPD According:||Type 2|
|Product Name:||Surge Lightning Protector||Type:||Type 2 Lightning Protector|
|Packing Unit:||1 Pc||Pole Number:||3P|
|Uc:||275V||Protection Level Up:||1.5 KV|

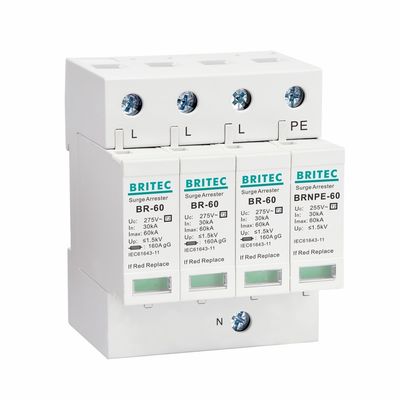

ROHS Type 2 Surge Protection Device,

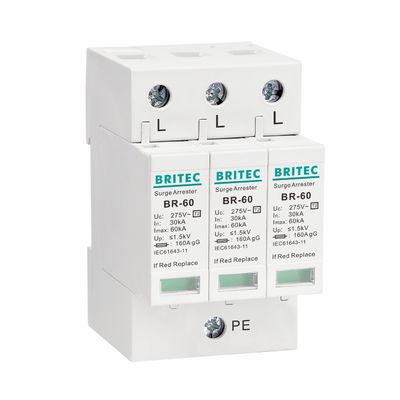

60kA 3 pole surge protector,
TUV 3 pole surge protector

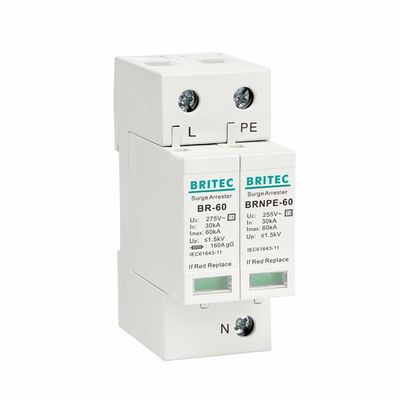

BRITEC 2P Class II SPD 60kA T2 Surge Arrester AC surge lightning protector surge protection device
We can produce according to your requirements.
Contact us get the lowest price
The surge protector is provided with a fail-safe device. When the protector breaks down due to overheating, the fail-safe
detach device can automatically detach from the power grid and give an indication signal.When the protector is normal, the
display window will show green, and after failure, the display window will show red.
1 Effectively handle high-energy transients on type TT, TN-C, TN-S, and TN-C-S power systems
2 SPD rated Type 2 in accordance with EN61643-11; Class I & II in accordance with IEC 61643-1
3 Built-in thermal components disconnect SPD from the power source to avoid thermal runaway 4 conditions
5 Visual inspection windows on each module provide continuous status indication
BRITEC Type 2 Class C Surge Protection Parameters:
|Model Name||BR275-60 3P|
|Product Type||Surge Protection Device|
|SPD dassification according to EN61643-11||Type 2|
|SPD dassification according to IEC61643-11||Class II|
|Max. Continuous Voltage Uc||275V|
|Max. discharge current (8/20µs) Imax||60kA|
|Norminal discharge current (8/20µs) In||30kA|
|Voltage protection level Up||≤1.5kV|
|Max. backup fuse||160A gG|
|Response time tA||≤25ns|
|For mounting on||35mm Din rail|
|Degree of protection||IP20|
|Manufacturer Guarantee||5 Years Guarantee|
|No. of Phases||Single-Phase|
|Number of Poles||two pole|
|Operation temperature range||-40 ~ +80 degree|
|Remote control contacts||Optional|
BRITEC Type 2 Class C Surge Protection Application:
Protecting low-voltage consumers' installations against indirect lightning discharges
High performance varistor with thermal disconnection tripping device
Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring etc.
Protection class: Type 2,Class II

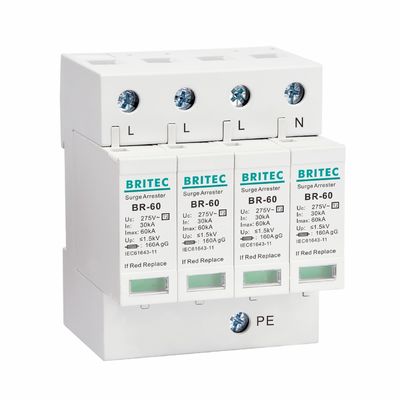

Pole number:1P,2P,3P,4P,1+1,3+1 optional
surge protectors are used to guard sensitive equipments from voltage spike
Wenzhou Britec Electronic Co., Ltd. is a professional engaged in SPD products research and development, design, production and service in the integration of modern professional surge protection production enterprises, production base is located in Yueqing, Zhejiang, China. With OEM/ODM high standard production workshop, has a new standard of high-end production equipment, perfect supporting factory layout is reasonable, the spacious production workshop, according to the international surge protector factory standard production design, is the domestic strong r & d manufacturers.
Q1: What is the MOQ of each item?
A: Usually the MOQ is 1 pcs. If this product we have in stock, there is no limitation for MOQ.
Q2: Do you have any guarantee for products?
A: Yes, sure. All products have two years guarantee.
Q3: Are you a factory or a trading company?
A: We are a factory with trading lines. We have in SPD field for more than 17 yeas. We have full experience of producing surge protection device.
Q4: How to control the quality?
A: Each product must be test before shipment. Our production line full with professional skills and strict stardars.
Q5: How long does it take to delivery?
A: If have stock, within 1 week we can finished all the delivery. If no have stock, normally around 3 weeks, depends on order.
