Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: TY-01/3.1 TY-01/3.3 TY-01/4.3 TY-01/5.3 TY-01/6.3
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 Function: Lighting Protection
Item Name: Discharging Rod Lightning Conductor Materia: Stainless Steel 304
Use For: High-rise Building Lightning Protection Keyword: Types Of Lightning Arrestor, Lightning Arrestor Electronic
Tu: -40℃...+80℃ Class: Type 2
Item: Surge Arrester
High Light:

electro discharge lightning arrester rod

,

Type 2 lightning arrester rod

,

SUS304 lightning ground rod

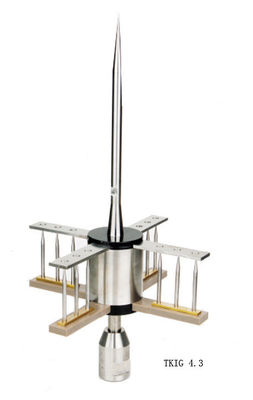

Early electro-discharge lightning Rod discharging rod lightning conductor 4.3 3.3

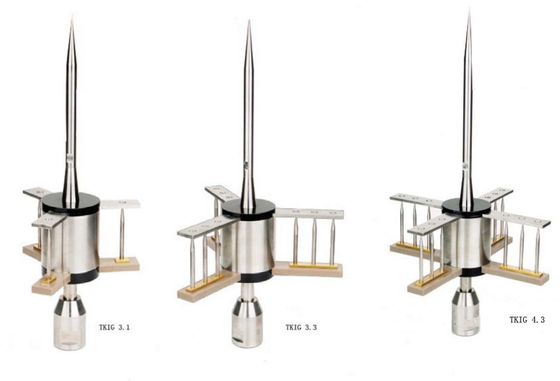

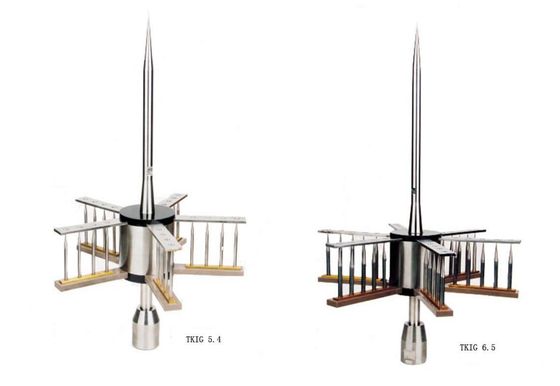

The lightning rod has 5 types and the product are up to UNE 21.186,CEI 1024-1,NFC-17 102 standard,all of which are made of stainless steel, each type has different protection range.


Structure:

1.Central Collection rod
2.Reflector
3.Igniter
4.Exciter
5.Exciter Base
6. The Reflector and exciter are isolated from the collection rod
7. Base for exciter are made of synthetic resin and is free from erosion environment.



Feature:
· Non electronic type has a long service life
· 100% early stream discharge
· Higher level of protection
· High performance after repeated lightning strike
· Different protection radius selection
· Active interception of lightning
· Only activated when there is lightning
· Good looking design
· Design of the products has been tested in the labs
· No maintenance required

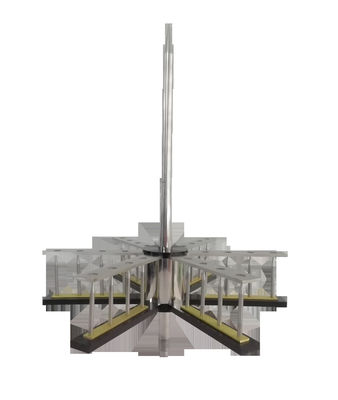

Early Electro 4.3  Lightning Arrester SUS304 discharging rod LIGHTNING ROD 0

Early Electro 4.3  Lightning Arrester SUS304 discharging rod LIGHTNING ROD 1



Early Electro 4.3  Lightning Arrester SUS304 discharging rod LIGHTNING ROD 2Early Electro 4.3  Lightning Arrester SUS304 discharging rod LIGHTNING ROD 3



electro-discharge lightning Rod​ Details:





                           Protection Radius of Active ESE Rod

  TKIG-3.1 TKIG -3.3 TKIG -4.3 TKIG -5.4 TKIG -6.5
Category I
D=20M
25M 45M 54M 63M 70M
Category II
D=45M
43M 65M 74M 84M 92M
Category III
D=60M
50M 75M 85M 95M 102M
                                      Pre start time
MODEL TKIG-3.1 TKIG -3.3 TKIG -4.3 TKIG -5.4 TKIG -6.5
T(us) 14 25 34 43 52




Tips: What is a surge protection device?

The surge protection device (SPD) is an electronic device that provides a protection for electrical equipment, communication network etc. from the effect of surges. When a current spike or voltage surge suddenly occurs in an electrical circuit or a communication line due to external interference, the SPD can conduct the shunt in a very short time, thereby avoiding the damage of the surge to other equipment in the circuit.

Surge protective devices are designed to minimize the effects of the indirect and direct lightning or other transient overvoltage surges, suitable for surge protection in residential, tertiary industrial and other industrial applications. SPD has several protection modes: L-L, L-G, L-N, N-G and its combinations.

The SPD surge protector is an indispensable device for lightning protection in the electronic equipment. Its role is to restrict the transient overvoltage that enters the power line and signal transmission line to the voltage range that the device or system can withstand, or to discharge powerful lightning current into the ground, thus to protect the equipment or systems from shocks.



Our Services:



• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.





Shipping:



Early Electro 4.3  Lightning Arrester SUS304 discharging rod LIGHTNING ROD 4



Workshop:



Early Electro 4.3  Lightning Arrester SUS304 discharging rod LIGHTNING ROD 5



Early Electro 4.3  Lightning Arrester SUS304 discharging rod LIGHTNING ROD 6



Early Electro 4.3  Lightning Arrester SUS304 discharging rod LIGHTNING ROD 7



FAQ:



Q1: What is the MOQ of each item?
  A: Usually the MOQ is 1 pcs. If this product we have in stock, there is no limitation for MOQ.



Q2: Do you have any guarantee for products?
  A: Yes, sure. All the product have two years guarantee. Any problem feel free to contact us.



Q3: Are you a factory or a trading company?
  A: We are a factory with trading lines. We have in SPD field for more than 17 yeas. We have full experience of producing surge protection.



Q4: How to control the quality?

  A: Each New product must be test before shipment. Our production line full with professional skills and strict stardars.



Q5: How long does it take to delivery?
  A: If have stock, within one week we can finished all the delivery. If no have stock, normally around 3 weeks. It is depends on order's quantity.
