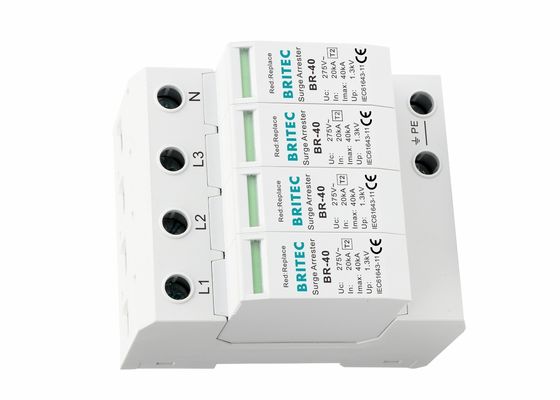

Type 2 Class II Lightning Protection SPD 40Ka 4 Pole Surge Protection

Type 2 Class II Lightning Protection SPD 40Ka 4 Pole Surge Protection

  • Type 2  Class II Lightning Protection SPD 40Ka 4 Pole Surge Protection
  • Type 2  Class II Lightning Protection SPD 40Ka 4 Pole Surge Protection
Type 2  Class II Lightning Protection SPD 40Ka 4 Pole Surge Protection
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: CE
Model Number: TY-40 4P
Payment & Shipping Terms:
Minimum Order Quantity: 200 piece / pieces
Packaging Details: EXPORT PACKING
Delivery Time: 15-30 days after payment
Payment Terms: T/T
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Test Standards: IEC 61643-11 / EN61643-11 Voltage Rating: 150V / 275V / 320V / 385V / 440V
In: 20kA Imax: 40kA
Poles Number: 4P Number Of Modules: 4
Mounting On: 35mm Din Rail Tu: -40℃...+80℃
Class: Type 2 Item: Surge Arrester
High Light:

40Ka Lightning Protection Type

,

4 Pole Lightning Protection Type

,

Type 2 Lightning Protector



Class II Lightning Protection Type 2 SPD 40Ka Surge Protective Devices Power Line AC 4 Pole​



Class II Lightning Protection Type 2 SPD 40Ka Surge Protective Devices Description:

Intensity of Remote Signaling Alarm Contact
Type 2 or Class II test level
Failure indication
Nominal discharge current 20Ka with Max. discharge current of 40kA
High discharge capacity and low residual voltage
4 Pole SPD
Over-temperature protection
DIN rail mounting, easy installation, compact size, good performance
IP20, UL94 V0



Class II Lightning Protection Type 2 SPD 40Ka Surge Protective Devices Product Details:



  TY150 40 4P TY275 40 4P TY320 40 4P TY385 40 4P TY440 40 4P
SPD classification according to EN61643-11 Type 2 Type 2 Type 2 Type 2 Type 2
SPD classification according to IEC61643-11 Class II Class II Class II Class II Class II
Max. continuous operating a.c. voltage      Uc 150V 275V 320V 385V 440V
Nominal discharge current (8/20us)             In 20kA 20kA 20kA 20kA 20kA
Max. discharge current(8/20μs)              Imax 40kA 40kA 40kA 40kA 40kA
Voltage protection level                              Up   ≤0.8kV ≤1.3kV ≤1.5kV ≤1.8kV ≤2.0kV
Voltage protection level 5kA                       Up ≤0.6kV ≤1kV ≤1.2kV ≤1.4kV ≤1.6kV
Max. backup fuse 125A gG 125A gG 125A gG 125A gG 125A gG
Response time                                            tA ≤25ns ≤25ns ≤25ns ≤25ns ≤25ns
Operating temperature range                     Tu -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃ -40℃-80℃
Operating state / fault indication    green / red       green / red     green / red      green / red      green / red
Cross-section area (Min.) 4mm2 4mm2 4mm2 4mm2 4mm2
Cross-section area (Max.) 35mm2 35mm2 35mm2 35mm2 35mm2
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0
Degree of protection IP20 IP20 IP20 IP20 IP20



Dimension:

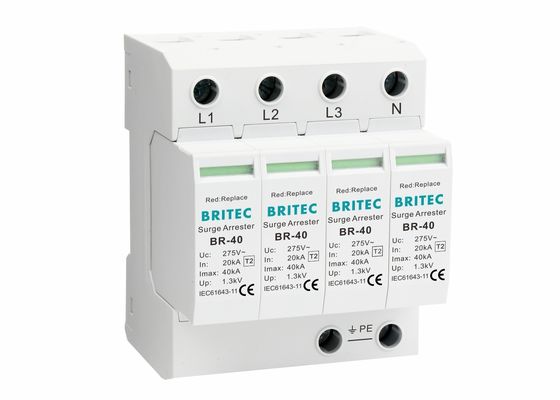

Type 2  Class II Lightning Protection SPD 40Ka 4 Pole Surge Protection 0



Class II Lightning Protection Type 2 SPD 40Ka Surge Protective Devices Application:

Surge protection devices (SPDs) are suitable for the TN-S power supply system of 50/60Hz
Suitable for three phase application
Protecting them from direct and indirect lightning impulse and other transient overvoltage.

Tips: What is a surge protection device?

The surge protection device (SPD) is an electronic device that provides a protection for electrical equipment, communication network etc. from the effect of surges. When a current spike or voltage surge suddenly occurs in an electrical circuit or a communication line due to external interference, the SPD can conduct the shunt in a very short time, thereby avoiding the damage of the surge to other equipment in the circuit.

Surge protective devices are designed to minimize the effects of the indirect and direct lightning or other transient overvoltage surges, suitable for surge protection in residential, tertiary industrial and other industrial applications. SPD has several protection modes: L-L, L-G, L-N, N-G and its combinations.

The SPD surge protector is an indispensable device for lightning protection in the electronic equipment. Its role is to restrict the transient overvoltage that enters the power line and signal transmission line to the voltage range that the device or system can withstand, or to discharge powerful lightning current into the ground, thus to protect the equipment or systems from shocks.



Our Services:



• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.



Installation:



• The type 2 arresters must install into sub-distribution boards after main distribution boards containing type 1 arresters.

• For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices.
• Multiple surge diverters installed in a cascaded approach should be used to ensure adequate protection of the facility.



Shipping:



Type 2  Class II Lightning Protection SPD 40Ka 4 Pole Surge Protection 1



Workshop:



Type 2  Class II Lightning Protection SPD 40Ka 4 Pole Surge Protection 2



FAQ:



Q1: What is the MOQ of each item?
  A: Usually the MOQ is 100 pcs. If this product we have in stock, there is no limitation for MOQ.



Q2: Do you have any guarantee for products?
  A: Yes, sure. All the product have two years guarantee. Any problem feel free to contact us.



Q3: Are you a factory or a trading company?
  A: We are a factory with trading lines. We have in SPD field for more than 17 yeas. We have full experience of producing surge protection.



Q4: How to control the quality?

  A: Each New product must be test before shipment. Our production line full with professional skills and strict stardars.



Q5: How long does it take to delivery?
  A: If have stock, within one week we can finished all the delivery. If no have stock, normally around 3 weeks. It is depends on order's quantity.
