| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BRRJ45H-8L |
| Minimum Order Quantity: | 10 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15-20 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
| Type: | RJ45 Arrester Ethernet Networking Surge Protector | Connection: | RJ45 Socket |
|---|---|---|---|
| Protection Class: | IP20 | Condition: | 100% Original |
| Data Rates: | 1000 Mbps | Customized: | Yes |
| Nominal Discharge Current: | 5kA | Insertion Loss: | ≤0.3dB |
| Compatible Devices: | PoI , Personal Computer , LAN , Router | ||
| High Light: | 0.3dB ethernet surge arrester,IEC61643-21 rj45 surge arrester,1000mbps rj45 surge arrester |
||

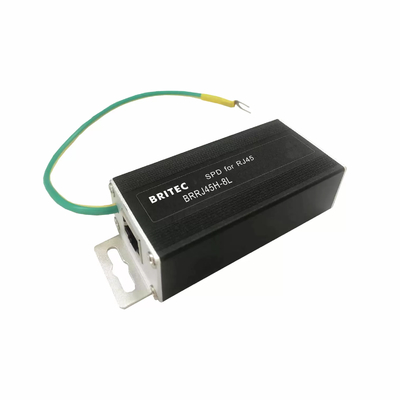

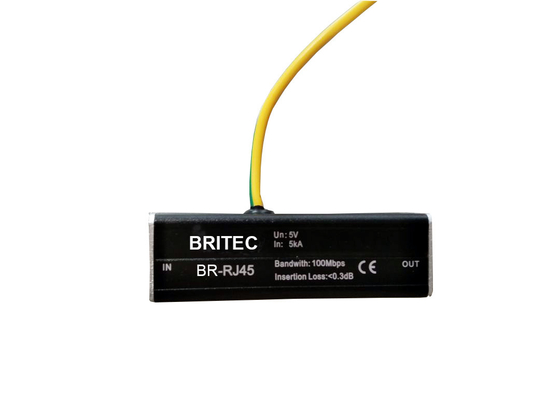

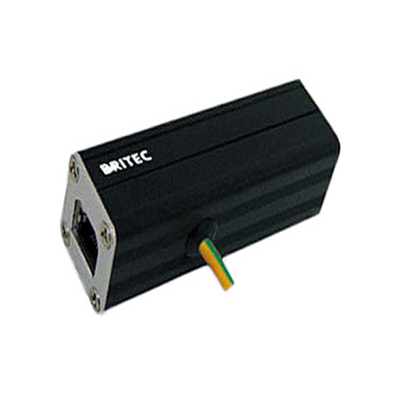

ethernet surge protection devices RJ45 Arrester Ethernet Networking Surge Protector
Ethernet Networking Surge Protector:
BRRJ45 series signal surge protector (hereinafter referred to as SPD) is suitable for computer networks (Ethernet, LAN, token ring), servers, routers, HuB, broadband. Its coarse protection, fine protection and fine protection function can meet different anti surge protection intervals. Protect the RJ45 interface to prevent damage to the signal equipment due to an increase in ground potential or a line-induced overvoltage.
Ethernet Networking Surge Protector Product Details:
| BRRJ45H-8L | |
| Test standards | IEC61643-21 |
| Nominal voltage Un | 5V |
| Max.continuous operating d.c.voltage Uc | 6V |
| Max.continuous operating a.c.voltage Uc | 4V |
| Nominal current IL | 0.5A |
| C2 Nominal discharge current (8/20us) per line In | 5kA |
| Voltage protection level [line-line] Up | ≤30V |
| Voltage protection level [line-PG] Up | ≤500V |
| Response time [line-line] tA | ≤1ns |
| Response time [line-PG] tA | ≤100ns |
| Operating temperature range Tu | -40℃…+80℃ |
| Connection (input/output) | RJ45 socket 8 line |
| Data rates | 1000 Mbps |
| Insertion Loss | ≤0.3dB |
| Enclosure material | aluminium alloy |
| Degree of protection | IP20 |
Application:
to prevent indirect lightning or direct lightning impact and network over-voltage damage to signal equipment.
Q1:Are you a lightning surge protectors factory or lightning surge protectors trading company?
A1: We are lightning surge protectors manufacturer.
Q2: Warranty and return:
A2:1. Warranty 5 years
2. lightning surge protectors products and accessories have been tested 3 times before ship out.
3. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q3: How can I get some lightning surge protectors samples?
A3: We are honored to offer you lightning surge protectors samples, pls contact our staff and leave detailed contact information.
Q4: Is sample available and free?
A4: Sample is avaible, but the sample cost should be pay by you.The cost of sample will be refund after further order.
Q5:Do you accept customized order?
A5:Yes, we do.
Q6: What's the delievery time?
A6:It usually takes 7-15days after confirming payment, but specific time should be based on the order quantity.
