| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/CB/CE/ROHS/ISO9001 |
| Model Number: | BRRJ45L-4L |
| Minimum Order Quantity: | 10 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15-20 days after payment |
| Payment Terms: | T/T |
| Supply Ability: | 50000 Piece/Pieces per Month |
| Type: | Ethernet Signal Surge Protector RJ45 | Connection: | RJ45 Socket |
|---|---|---|---|
| Bandwidth: | 100 Mbps | Customized: | Yes |
| Nominal Voltage: | 5V | Nominal Current: | 0.5A |
| Nominal Discharge Current: | 5kA | Insertion Loss: | ≤0.3dB |
| Compatible Devices: | PoI , Personal Computer , LAN , Router | ||
| High Light: | TUV rj45 spd,100Mbps rj45 surge protector,Ethernet Signal rj45 spd |
||

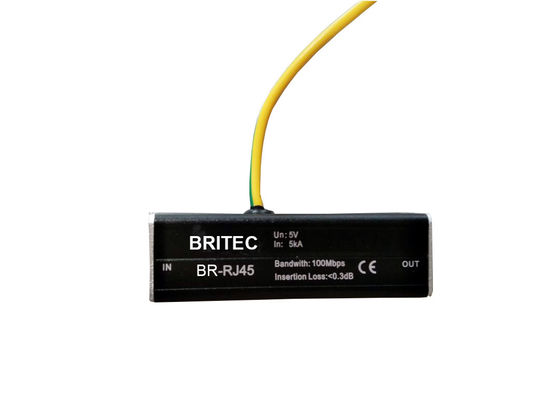

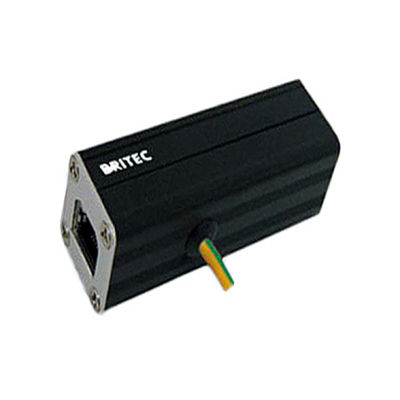

RJ45 SPD Ethernet Signal Surge Protector RJ45 ethernet surge protection devices
Ethernet Signal Surge Protector RJ45:
● BR-RJ45 series of SPDs is mainly used for Ethernet 100 Base-T/Tx,100Vg-Any-Lan,CDDI,Token Ring(IEEE 802.5).
● Low limiting voltage and quick response.
● Protect network system equipment from inductive lightning wave, surge voltage, electrostatic interference, poor
grounding.
● Insertion loss:≤0.3dB.
● Conform to IEC61643-21.
Ethernet Signal Surge Protector RJ45 Product Details:
| BRRJ45L-4L | |
| Test standards | IEC61643-21 |
| Nominal voltage Un | 5V |
| Max.continuous operating d.c.voltage Uc | 6V |
| Max.continuous operating a.c.voltage Uc | 4V |
| Nominal current IL | 0.5A |
| C2 Nominal discharge current (8/20us) per line In | 5kA |
| Voltage protection level [line-line] Up | ≤30V |
| Voltage protection level [line-PG] Up | ≤500V |
| Response time [line-line] tA | ≤1ns |
| Response time [line-PG] tA | ≤100ns |
| Operating temperature range Tu | -40℃…+80℃ |
| Connection (input/output) | RJ45 socket 4 line |
| Data rates | 100 Mbps |
| Insertion Loss | ≤0.3dB |
| Enclosure material | aluminium alloy |
| Degree of protection | IP20 |
Ethernet Signal Surge Protector RJ45 Dimension:
Application:
● Protect network devices powered from Ethernet such as webcams.
● Protect against include direct lightning strikes, voltage spikes, or POE overvoltage.
● Protects both transmission and power circuits from lightning surges on POE compatible devices.
● Protect PSE (power-supply equipment) connected to a network from transient overvoltage.
● Inserted inline on an RJ45 CAT6/CAT5/CAT5e cable to prevent damage of electronic networking equipment.
● Protect communication devices connected via Ethernet LAN from lightning surge entering through network cables.
● Protect a wide array of valuable components such as switch, router, modem, bridge, repeater, or any part of
internet service network.
Q1: Are you a trade company or a manufacturer?
A: We are the manufacturer and we are specialized in low voltage surge protection field.
Q2: What is your delivery date?
A: Sample Order: 7-15 days after receipt of the full payment; Mass Order: 15-20days after receipt of the full payment; OEM Order: 15-30days after receipt of the deposit.
Q3: What is your payment terms?
A: Paypel, TT, L/C ect.
Q4: Can you send samples?
A: Yes, every time you need, please contact us directly.
