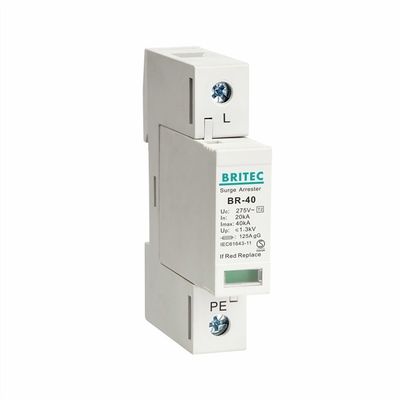

BR-40 1P 40kA 275V Surge Voltage Protector Tvss Type 2 Surge Protection Device spd

BR-40 1P 40kA 275V Surge Voltage Protector Tvss Type 2 Surge Protection Device spd

  • BR-40 1P 40kA 275V Surge Voltage Protector Tvss Type 2 Surge Protection Device spd
  • BR-40 1P 40kA 275V Surge Voltage Protector Tvss Type 2 Surge Protection Device spd
  • BR-40 1P 40kA 275V Surge Voltage Protector Tvss Type 2 Surge Protection Device spd
  • BR-40 1P 40kA 275V Surge Voltage Protector Tvss Type 2 Surge Protection Device spd
BR-40 1P 40kA 275V Surge Voltage Protector Tvss Type 2 Surge Protection Device spd
Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS/ISO9001
Model Number: BR-40 1P
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: 275V Surge Voltage Protector Model Numbers: BR-40 1P
EN Type: T2 Shipping Term: TNT DHL FEDEX EMS UPS
Protection Class: IP20 Response Time: 25ns
Brand Name: BRITEC MOQ: 5 PCS
Highlight:

tvss Type 2 surge arrester

,

tvss Type 2 Surge Protection Device

,

40kA tvss surge arrester

40kA 275V surge voltage protector tvss spd Type 2 surge arrester





Type 2 surge arrester  Features:



Protecting low-voltage consumers' installations against indirect lightning discharges

High performance varistor with thermal disconnection tripping device

Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring etc.

Protection class: Type 2,Class II

Pole number:1P,2P,3P,4P,1+1,3+1 optional

surge protectors are used to guard sensitive equipments from voltage spike





Type 2 surge arrester  Technology characteristic:

BR-40 1P 40kA 275V Surge Voltage Protector Tvss Type 2 Surge Protection Device spd 0



  BR-40 1P
Max. continuous operating a.c. voltage                              Uc 275V
Nominal discharge current (8/20us)                                    In 20kA
Maximum discharge current (8/20us)                             Imax 40kA
Voltage protection level                                                      Up ≤1.3kV
Response time                                                                    tA ≤25ns
Max. backup fuse 125A
Operating temperature range                                             Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Test standards



  IEC 61643-11, EN 61643-11


Type 2 surge arrester  Dimension:



BR-40 1P 40kA 275V Surge Voltage Protector Tvss Type 2 Surge Protection Device spd 1



Type 2 surge arrester Application:

Application from 1 to 4 poles

Protection against surge and overvoltage spikes

Good protection level

High discharge capacity


Type 2 surge arrester Certificate:


CB, CE, TUV,RoHS Certificate:


BR-40 1P 40kA 275V Surge Voltage Protector Tvss Type 2 Surge Protection Device spd 2

Company information:

Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.

BR-40 1P 40kA 275V Surge Voltage Protector Tvss Type 2 Surge Protection Device spd 3

Production line:

BR-40 1P 40kA 275V Surge Voltage Protector Tvss Type 2 Surge Protection Device spd 4
BR-40 1P 40kA 275V Surge Voltage Protector Tvss Type 2 Surge Protection Device spd 5

Laboratory equipment:

BR-40 1P 40kA 275V Surge Voltage Protector Tvss Type 2 Surge Protection Device spd 6

BR-40 1P 40kA 275V Surge Voltage Protector Tvss Type 2 Surge Protection Device spd 7

Shipping:

BR-40 1P 40kA 275V Surge Voltage Protector Tvss Type 2 Surge Protection Device spd 8

FAQ:

Q: Are you trading company or manufacturer?

A: We are professional manufacturer specialized in orthopedic and sport products. And we trade our products with our clients directly.



Q: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.



Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request.



Q: What’s your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.



Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
