| Place of Origin: | China |
| Brand Name: | BRITEC |
| Certification: | TUV/UL/CB/CE/ROHS |
| Model Number: | BR-12.5M 1P+1 |
| Minimum Order Quantity: | 20 Piece/Pieces |
|---|---|
| Packaging Details: | EXPORT PACKING |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 50000 Piece/Pieces Month |
| Item Name: | Surge Arrester Class I+II Spd | Model Numbers: | BR-12.5M 1P+1 |
|---|---|---|---|
| Suitable For: | Surge Protection For Electrical Equipment. | EN Type: | T1 |
| Configuration: | 1P+1 | Place Of Origin: | Zhejiang Wenzhou |
| MOQ: | 11PCS | ||
| High Light: | electrical equipment 50ka surge protector,275v T1+T2 Surge Arrester B+C,50kA T1+T2 Surge Arrester B+C |
||

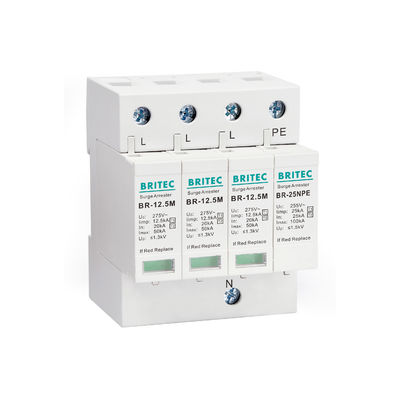

12.5kA 50kA Surge Protection Device 275v Surge Arrester Class I+II spd
Class I+II spd Features:
Protecting low-voltage consumers' installations against indirect lightning discharges
High performance varistor with thermal disconnection tripping device
Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring etc.
Protection class: Type 1,Class I
Pole number:1P,2P,3P,4P,1+1,3+1
Widely used for protecting the buildings to avoid national defense
· Lightning impulse current (10/350us): 12.5kA.
· Response time: ≤25ns.
· Max. backup fuse: 160A
· Failure indication.
Class I+II spd Technology characteristic:
| BR-12.5M 1P+1 | |
| Max. continuous operating a.c. voltage Uc(L-N/N-PE) | 275V/255V (50/60Hz) |
| Lightning impulse current (10/350us) Iimp(L-N/N-PE) | 12.5kA/25kA |
| Nominal discharge current (8/20us) In(L-N/N-PE) | 25kA/25kA |
| Maximum discharge current (8/20us) Imax(L-N/N-PE) | 50kA/100kA |
| Voltage protection level Up(L-N/N-PE) | ≤1.3kV/≤1.5kV |
| Response time tA | ≤25ns |
| Max. backup fuse | 160A |
| Operating temperature range Tu | -40℃—80℃ |
| Cross-section area (Min.) | 4mm2 |
| Cross-section area (Max.) | 35mm2 |
| For mounting on | 35mm Din rail |
| Enclosure material | Thermal plastic UL94-V0 |
| Test standards |
IEC 61643-11, EN 61643-11 |
surge arrester Dimension:
surge arrester Application:
· For electrical installations.
· Suitable for lightning protection of power supply system in areas with high risk of lightning strike.
· Can handle lightning currents and protect sensitive electronic equipment.
· Application-optimized and prewired combined lightning current.
· Particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (e.g.: buildings equipped with lightning rods).
CB, CE, TUV,RoHS Certificate
Wenzhou Britec Electric Co., Ltd. established in the year of 2003 and located in Yueqing, Zhejiang, China. Our company specialized in research and development of surge protection devices.The series of surge protection device Type 1 and Type 2 and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.
.
Q1: Selection of surge protector
Al: The grading of the surge protector (commonly known as lightning protection) Is assessed according to the IEC61024 subdivision lightning protection theory, which is installed at the junction of the partition. Technical requirements and functions differ. The first-stage lightning protection device is installed between the 0-1 zone, high for the flow requirement, the minimum requirement of EN 61643-11 / IEC 61643-11 is 25 ka (10/350), and the second and third levels are installed between the 1-2 and 2-3 zones, mainly to suppress the overvoltage.
Q2: Are you a lightning surge protectors factory or lightning surge protectors trading company?
A2: We are a lightning surge protectors manufacturer.
Q3: Warranty and services:
A3:1. Warranty 5 years
2. lightning surge protectors products and accessories have been tested 3 times before ship out.
3. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q4: How can I get some lightning surge protectors samples?
A4: We are honored to offer you lightning surge protectors samples, pis contact our staff, and leave detailed contact information, we promise to keep your information confidential.
Q5: Is the sample available and free?
A5: Sample is available, but the sample cost should be payable by you. The cost of the sample will be refunded after further order.
