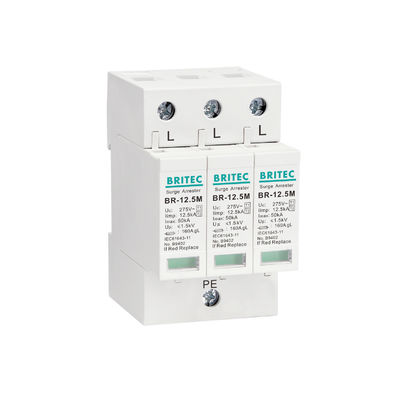

BR-12.5M 3P Type 1 12.5kA 3 Phase Surge Protective Device SPD Arrester

BR-12.5M 3P Type 1 12.5kA 3 Phase Surge Protective Device SPD Arrester
BR-12.5M 3P Type 1 12.5kA 3 Phase Surge Protective Device SPD Arrester
BR-12.5M 3P Type 1 12.5kA 3 Phase Surge Protective Device SPD Arrester BR-12.5M 3P Type 1 12.5kA 3 Phase Surge Protective Device SPD Arrester BR-12.5M 3P Type 1 12.5kA 3 Phase Surge Protective Device SPD Arrester BR-12.5M 3P Type 1 12.5kA 3 Phase Surge Protective Device SPD Arrester BR-12.5M 3P Type 1 12.5kA 3 Phase Surge Protective Device SPD Arrester

Large Image :  BR-12.5M 3P Type 1 12.5kA 3 Phase Surge Protective Device SPD Arrester

Product Details:
Place of Origin: China
Brand Name: BRITEC
Certification: TUV/CB/CE/ROHS
Model Number: BR-12.5M 3P
Payment & Shipping Terms:
Minimum Order Quantity: 20 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C,D/A,T/T,Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now

BR-12.5M 3P Type 1 12.5kA 3 Phase Surge Protective Device SPD Arrester

Description
Item Name: Surge Protective Device Model Numbers: BR-12.5M 3P
Suitable For: To Protect The Systems Against The Transient Overvoltage (lightning) EN Type: T1
Configuration: 3p Place Of Origin: Zhejiang
MOQ: 20PCS
Highlight:

12.5kA type 1 surge arrester

,

3p type 1 surge arrester

,

12.5kA type 1 surge protector

BR-12.5M 3P Class I Surge Arrester

3-phase 12.5kA Type 1 surge protective device with 50kA maximum discharge capacity for comprehensive lightning and surge protection.

Product Features
  • Clear indicator window (green = operational, red = failure)
  • Fully enclosed terminals for enhanced safety
  • PC flame retardant shell material for fire insulation
  • Replaceable module design for easy maintenance
Key Benefits
  • Easy installation process
  • DIN rail mounting compatible
  • Maximum nominal discharge: 50 kA
  • Excellent protection for electrical panels
Technical Specifications
BR-12.5M 3P Surge Arrester technical diagram
Parameter Value
Max. continuous operating a.c. voltage (Uc) 275V
Lightning impulse current (10/350μs) (Iimp) 12.5kA
Nominal discharge current (8/20μs) (In) 20kA
Maximum discharge current (8/20μs) (Imax) 50kA
Voltage protection level (Up) ≤1.3kV
Response time (tA) ≤25ns
Max. backup fuse 160A
Operating temperature range (Tu) -40℃ to +80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
For mounting on 35mm Din rail
Enclosure material Thermoplastic UL94-V0
Test standards IEC 61643-11, EN 61643-11
Product Dimensions
BR-12.5M 3P Surge Arrester dimensional drawing
BR-12.5M 3P Type 1 12.5kA 3 Phase Surge Protective Device SPD Arrester
Application

Application-optimized and prewired combined lightning current protection. Particularly useful in high lightning density areas where the risk of heavy surge current or even direct strikes is high (e.g., buildings equipped with lightning rods).

Certifications

CB, CE, TUV, RoHS Certified

BR-12.5M 3P Surge Arrester certification documents
Company Information

Wenzhou Britec Electric Co., Ltd. established in 2003 and located in Yueqing, Zhejiang, China. Our company specializes in research and development of surge protection devices. The series of surge protection devices Type 1, Type 2, and Type 3, BR PV and SPDs for Data offer the market with a new choice of high quality surge arresters. We have 18 years of experience in the research & development and production of the surge protection field and provide 5 years warranty.

Wenzhou Britec Electric company overview
Production Facilities
Surge protector production line Manufacturing process overview Advanced production equipment
Laboratory Equipment
Testing laboratory equipment Quality control testing apparatus
Shipping & Logistics
Product packaging and shipping process
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: We are professional manufacturer specialized in surge protection devices. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q: What's your MOQ?
A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer's exact situation.
Q: Which payment form you can accept?
A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
