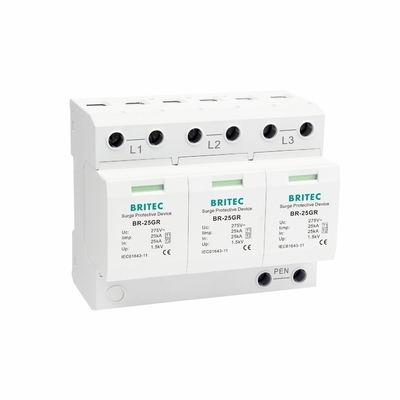

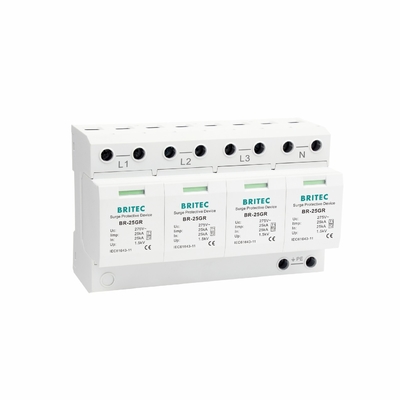

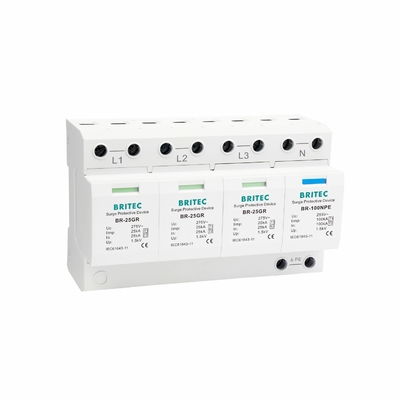

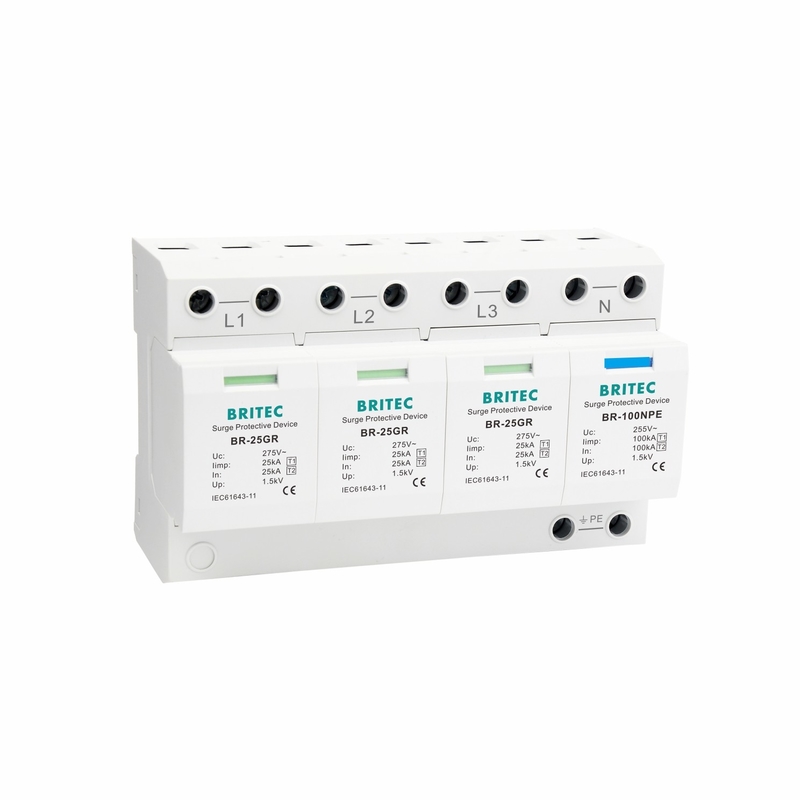

Name: BR-25GR 3+1 AC Type 1 lightning surge arrestor Electrical Surge Protection device spd t1
Brand: BRITEC
SKU: BR-25GR 3+1
Price: 1 USD
Availability: InStock
Rating: 4.6 (187 reviews)

Home Products Type 1 Surge Protection Device

BR-25GR 3+1 AC Type 1 lightning surge arrestor Electrical Surge Protection device spd t1

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CB/CE
Model Number:	BR-25GR 3+1

Payment & Shipping Terms:

Minimum Order Quantity:	10 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Type 1 Surge Protectors	Place Of Origin:	Zhejiang, China
Installation Type:	Mounting On DIN Rail 35mm	Number Of Positions:	3+1
Brand Name:	BRITEC	Model Numbers:	BR-25GR 3+1
Rated Voltage:	Ac 230v/220v/375/380v	Standard:	IEC61643-1
Color:	White
High Light:	Type 1 lightning surge arrester , 385V lightning surge arrester , 385V AC surge protector

AC Arrester Lightning type 1 Surge Protectors

type 1 Surge Protectors Features:

Type 1 Surge Protective Device (SPD)s are intended for installation between the secondary of the service transformer and the line side of the service equipment overcurrent device, as well as the load side, including watt-hour meter socket enclosures, and are intended to be installed without an external overcurrent protective device. Type 1 devices are dual-rated for Type 2 applications as well, providing the highest ratings available for installation at the service entrance.

type 1 Surge Protectors Technology characteristic:

	BR-25GR 3+1
Nominal voltage Un	230V / 400V AC
Max. continuous operating a.c. voltage Uc	275V
Lightning impulse current (10/350us) (L-N / N-PE) Iimp	25kA / 100kA
Nominal discharge current (8/20us) (L-N / N-PE) In	25kA / 100kA
Maximum discharge current (8/20us) (L-N / N-PE) Imax	100kA
Voltage protection level (L-N / N-PE) Up	≤1.8kV
Response time tA	≤100ns
Max. backup fuse	315A
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Test standards	IEC 61643-11, EN 61643-11

type 1 Surge Protectors Dimension:

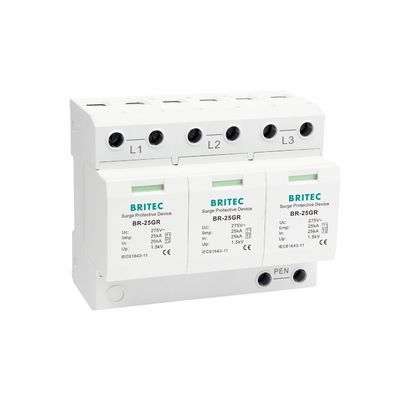

BR-25GR 3+1 AC Type 1 lightning surge arrestor Electrical Surge Protection device spd t1 1

type 1 Surge Protectors Application:

Application: Grid Power, AC Power Circuit, AC Distribution Box, LT Electrical Panel

AC SPD uses for AC Power or Grid Power to protect against transient ac voltage.

Other type for choose:

1,Maximum discharge current:20kA,40kA,80kA,100kA,120kA,200kA

2,Number of poles:1P,1P+N ,2P,3P,3P+N, 4P

3,Maximum continuous operating voltage Uc: 275V,320V,385V ,440V,550V,800V,1000V

Our Main Product

Type 1 surge protection device.

Type 2 surge protection device.

Type 1 + Type 2 surge protection device.

Type 3 surge protection device.

Type 2 + Type 3 surge protection device.

DC (pv, solar) surge protection device.

type 1 Surge Protectors Certificate:

CB, CE, TUV,RoHS Certificate:
