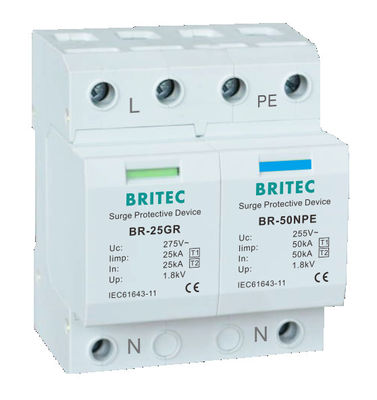

BR-25GR 1+1 lightning protection 25kA Type 1 Surge Protection Device Surge Arrester spd t1

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	TUV/CB/CE/ROHS/ISO9001
Model Number:	BR-25GR 1+1

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Voltage Protector	Place Of Origin:	Zhejiang, China (Mainland)
Number Of Positions:	1+1	Brand Name:	BRITEC
Model Numbers:	BR-25GR 1+1	Rated Voltage:	AC 275V
Standard:	IEC61643-1	Weight (g):	1000
Color:	White
High Light:	lightning Type 1 Surge Protection Device , 25kA Type 1 Surge Protection Device , 25kA surge voltage arrester

Type 1 25kA Lightning Surge Arrester Module surge voltage protector ac SPD

surge voltage protector Features:

• Working voltage: 220V/255V/275V/320V/385V/420V/440V.

• High arresting capacity up to 25 kA (10/350μs) per pole.

• Normal discharge current (8/20us) In: 25kA / 50kA.

• Max. discharge current (8/20us) Imax: 100kA.

• Composite type: 1P+NPE.

• Response time: 100ns.

• Installation: standard rail 35mm.

• Suitable for TN-S and TT power supply system of AC50/60Hz.

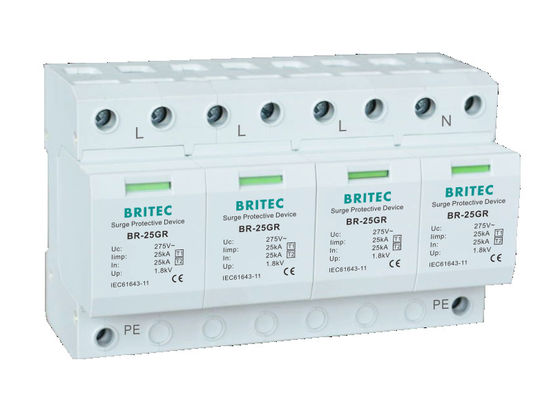

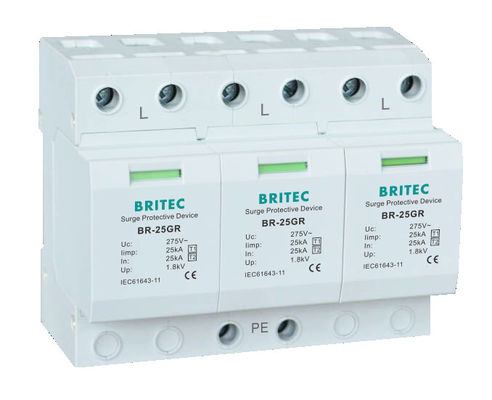

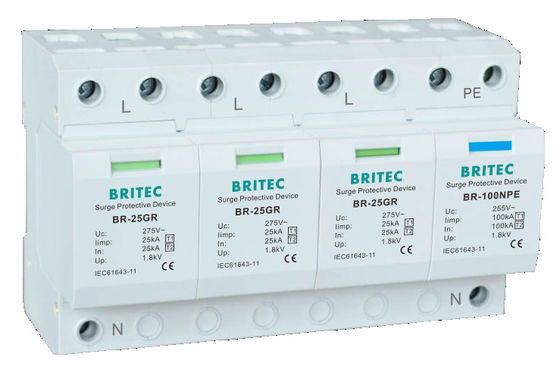

• Pole number:1P,2P,3P,4P,1+1,3+1 optional

surge voltage protector Technology characteristic:

	BR-25GR 1+1
Nominal voltage Un	230V / 400V AC
Max. continuous operating a.c. voltage Uc	275V
Lightning impulse current (10/350us) (L-N / N-PE) Iimp	25kA / 50kA
Nominal discharge current (8/20us) (L-N / N-PE) In	25kA / 50kA
Maximum discharge current (8/20us) (L-N / N-PE) Imax	100kA
Voltage protection level (L-N / N-PE) Up	≤1.8kV
Response time tA	≤100ns
Max. backup fuse	315A
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0
Test standards	IEC 61643-11, EN 61643-11

Maximum continuous operating voltage Uc: 275V,320V,385V ,440V,550V,800V,1000V

surge voltage protector Dimension:

BR-25GR 1+1 lightning protection 25kA Type 1 Surge Protection Device Surge Arrester spd t1 1

surge voltage protector Application:

Application: Grid Power, AC Power Circuit, AC Distribution Box, LT Electrical Panel

AC SPD uses for AC Power or Grid Power to protect against transient ac voltage.

surge voltage protector Certificate:

CB, CE, TUV,RoHS Certificate:
