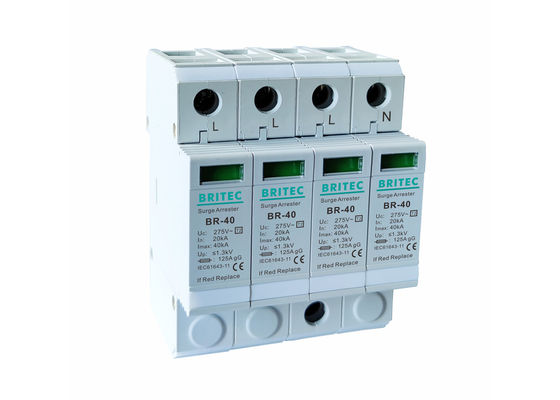

Name: 4P 40KA 275V 4 Pole Surge Protector IEC 61643-11 Standard
Brand: BRITEC
SKU: BR-40 4P
Rating: 4.9 (147 reviews)

Home Products Type 2 Surge Protection Device

4P 40KA 275V 4 Pole Surge Protector IEC 61643-11 Standard

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CB
Model Number:	BR-40 4P

Payment & Shipping Terms:

Minimum Order Quantity:	200 piece / pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 pieces per month

Contact Now

Detailed Product Description

Test Standards:	IEC 61643-11 / EN61643-11	Material:	Thermal Plastic UL94-V0
Product Or Component Type:	Surge Arrester With Pluggable Cartridge	Uc:	150V / 275V / 320V / 385V / 440V
In:	20kA	Imax:	40kA
Tu:	-40℃...+80℃	TA:	≤25ns
Device Application:	AC System	Item:	Surge Arrester
Highlight:	275V 4 pole surge protector , 40KA 4 pole surge protector , AC system 40KA surge protector

4P Surge Protector 40KA Surge Arrester SPD 4 Pole 275V Surge Protective Device

4P Surge Protector 40KA Surge Arrester SPD Features:

• The surge protection device BR-40 4P meets the type 2 requirement class according to IEC 61643-11.

• Three-phase protection for TN-S system

• The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current.

• Pluggable module, easy for installation and maintenance

• Visual status display.

• Green window will change when fault

• Available with optional remote signaling

• The use of flame-retardant housing

• Simple standard din rail mounting

4P Surge Protector 40KA Surge Arrester SPD Product Details:

	BR150 40 4P	BR275 40 4P	BR320 40 4P	BR385 40 4P	BR440 40 4P
SPD classification according to EN61643-11	Type 2	Type 2	Type 2	Type 2	Type 2
SPD classification according to IEC61643-11	Class II	Class II	Class II	Class II	Class II
Max. continuous operating a.c. voltage Uc	150V	275V	320V	385V	440V
Nominal discharge current (8/20us) In	20kA	20kA	20kA	20kA	20kA
Max. discharge current(8/20μs) Imax	40kA	40kA	40kA	40kA	40kA
Voltage protection level Up	≤0.8kV	≤1.3kV	≤1.5kV	≤1.8kV	≤2.0kV
Voltage protection level 5kA Up	≤0.6kV	≤1kV	≤1.2kV	≤1.4kV	≤1.6kV
Max. backup fuse	125A gG	125A gG	125A gG	125A gG	125A gG
Response time tA	≤25ns	≤25ns	≤25ns	≤25ns	≤25ns
Operating temperature range Tu	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃	-40℃-80℃
Operating state / fault indication	green / red	green / red	green / red	green / red	green / red
Cross-section area (Min.)	4mm²	4mm²	4mm²	4mm²	4mm²
Cross-section area (Max.)	35mm²	35mm²	35mm²	35mm²	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20	IP20	IP20	IP20	IP20
Order Code	B1401	B1403	B1405	B1407	B1409
Order Code (With remote signaling)	B1402	B1404	B1406	B1408	B1410

4P Surge Protector 40KA Surge Arrester SPD Application:

• Protecting low voltage equipment from surge damages.

• Used to protect electrical systems and load electrical equipment from lightning and instantaneous overvoltage

• Applied in modular SPD Class II (Class C) for TNS power supply system.

4P Surge Protector 40KA Surge Arrester SPD Advantage:

• High discharge current.
• Voltage protection level (Up) is low
• Interchangeable modules varistors
• IP20 protection
• Incorporate technology-based high energy varistors

4P Surge Protector 40KA Surge Arrester SPD Installation:

• The type 2 arresters must install into sub-distribution boards after main distribution boards containing type 1 arresters.
• For proper operation between type 1 and type 2 arresters at least 10- 15 m cable or wire must be otherwise a decoupling coil have to install between the two devices.
• In areas where storms are frequent, it is strongly recommended to install additional protection systems.

Our Services:

• 17 years global leading profession manufacture of electrical products surge arrester
• All products will be well packed before shipping
• Standard packaging, and you can also tell us your own requirements on packaging
• Faster delivery
• Individually Tested Prior to Shipment

Certificate:

Company profile:

Wenzhou Britec Electric Co., Ltd is a manufacturer and trading company located in Yueqing city, Zhejiang province, we have more than 17 years experiences in SPD producing. Our factory is equipped with advanced machinery, also we created much experience in new product development, so can customize products per your requirements. We know that cooperation, support and service is most important and hence employed experienced and customer friendly sales, this ensures a good understanding of your requirements, on time delivery and ultimately a satisfied customer base. We are not just thriving, but growing day by day, we always provide our customers with highly quality products in affordable cost; we sincerely hope to have you as our esteemed customer and friend.

4P 40KA 275V 4 Pole Surge Protector IEC 61643-11 Standard 1

Production flow:

4P 40KA 275V 4 Pole Surge Protector IEC 61643-11 Standard 2

Laboratory equipment:

Shipping:

FAQ:

Q1: How can I trust you and your company?
A: Products pass CE, CB, TUV certificates.

Q2: How long is your products warranty?
A: The warranty period of our products is 2 Years.

Q3: How about inspection?
A: We have the whole inspection system from raw material to end products.

Q4: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.
