RJ45 SPD Flange Mounting Gas Tube Arrester single port outlet

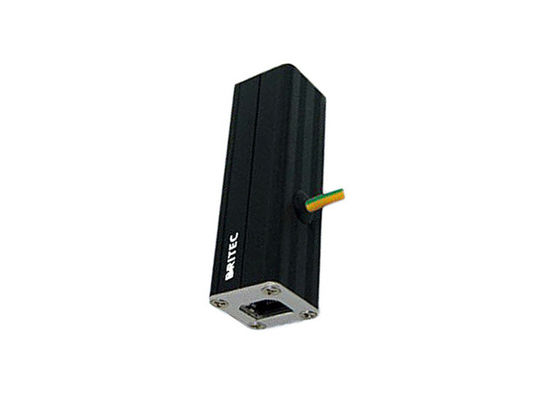

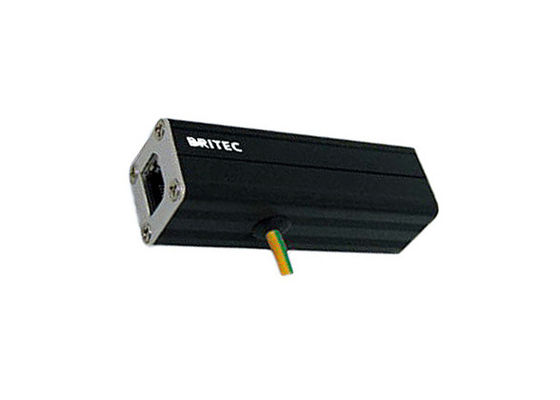

Large Image : RJ45 SPD Flange Mounting Gas Tube Arrester single port outlet

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BRRJ45L-4L

Payment & Shipping Terms:

Minimum Order Quantity:	200 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15-30 days after payment
Payment Terms:	T/T
Supply Ability:	50000 Piece/Pieces per Month

Contact Now

RJ45 SPD Flange Mounting Gas Tube Arrester single port outlet

Description

Type:	SPD	Connection:	RJ45
Outlets:	1 Port	Cable Type:	Ethernet
Nominal Voltage:	5V	Nominal Current:	0.5A
Nominal Discharge Current:	5kA	Bandwidth:	30 Mbps
Insertion Loss:	≤0.3dB	Compatible Devices:	PoI , Personal Computer , LAN , Router
Highlight:	Flange Mounting gas tube arrester , SPD gas tube arrester , SPD gas discharge tube arrester

RJ45 SPD Gas Discharge Tube Suppressor for Full Protection Mounting Flange Lightning Arrestor

About RJ45 SPD Gas Discharge Tube Suppressor:

• Ethernet Surge Protector for Gigabit LAN Ethernet Network.

• High insulation resistance

• Gas Discharge Tubes for Full Protection GDT

• Line-Line(Un): 5 Volts

• Aluminum alloy Case, Line-Line Line-Ground Protection, 5KA 8/20μs

• Operating Environment -40-80°C

• Thunder Arrestor Protects Computer Networking Equipment Devices like Router, Modem, Camera, Switch etc.

RJ45 SPD Gas Discharge Tube Suppressor Product Details:

	BRRJ45L-4L
Test standards	IEC61643-21
Nominal voltage Un	5V
Max.continuous operating d.c.voltage Uc	6V
Max.continuous operating a.c.voltage Uc	4V
Nominal current IL	0.5A
C2 Nominal discharge current (8/20us) per line In	5kA
Voltage protection level [line-line] Up	≤30V
Voltage protection level [line-PG] Up	≤500V
Response time [line-line] tA	≤1ns
Response time [line-PG] tA	≤100ns
Operating temperature range Tu	-40℃…+80℃
Connection (input/output)	RJ45 socket
Bandwidth	30 Mbps
Insertion Loss	≤0.3dB
Enclosure material	aluminium alloy
Degree of protection	IP20

Dimension:

RJ45 SPD Flange Mounting Gas Tube Arrester single port outlet 0

RJ45 SPD Gas Discharge Tube Suppressor Description:

• The Network Surge Protector Suppressors protects a single data line, including computer network signals, communication equipment and more.

• Multi-level protection circuit, high-speed protection accessories, low capacitance design, fast response, low output residual voltage and superior transmission performance.

• The standard RJ45 shielded interface of Ethernet Network Surge Protector is suitable for overvoltage protection of ETHERNET 10/100M BASET network equipment (such as SWTICH, HUB, and ROUTER).

• It suppresses high-voltage pulses on the line and protects the back-end equipment from lightning and industrial surges.

RJ45 SPD Gas Discharge Tube Suppressor Installation instructions:

• Network Surge Protector is connected in series in front of the input of the protected device.

• The input of Network Surge Protector is connected to the external signal cable.

• The output of the Network Surge Protector is connected to the signal input of the protected device.

Company information:

Wenzhou Britec Electric Co., Ltd. is a manufacturer and exporter specialized in SPDs. Such as ac surge protector, dc surge protection, LED lighting surge arrester, data surge protective device and so on. Our company is located in Yueqing, Zhejiang, China. Convenient transportation, excellent quality and prices and good service attract customers from each place of the world. Our company culture is "sincere and trustworthy, punctuality, high - quality" Welcome every clients!

Certificate:

Payment & Shipping:

FAQ:

Q1: Are you a trade company or a manufacturer?
A: We are the manufacturer and we are specialized in low voltage surge protection field.

Q2: What is your delivery date?
A: Sample Order: 7-15 days after receipt of the full payment; Mass Order: 15-20days after receipt of the full payment; OEM Order: 15-30days after receipt of the deposit.

Q3: What is your payment terms?
A: Paypel, TT, L/C ect.

Q4: Can you send samples?
A: Yes, every time you need, please contact us directly.
