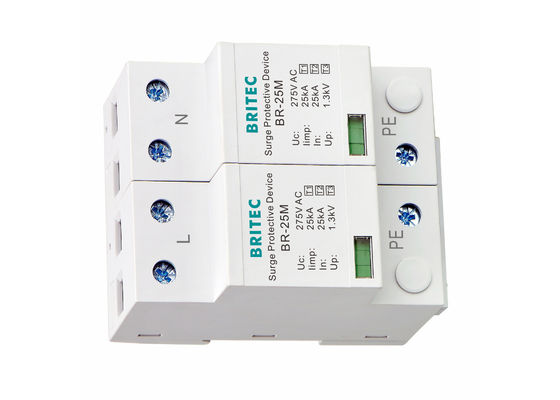

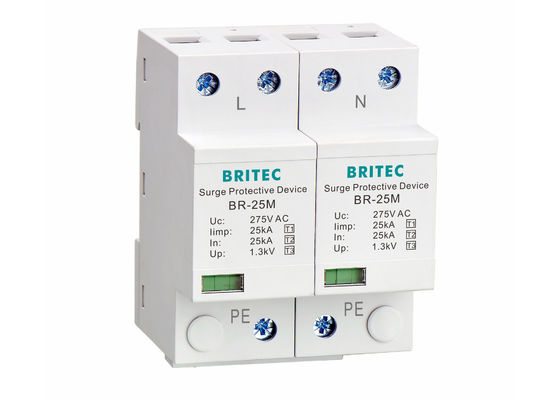

Name: Type 1+2+3 25kA 275V SPD 2 Poles Type 1 Surge Protector Lightning Protection
Brand: BRITEC
SKU: BR-25M 2P
Rating: 4.8 (167 reviews)

Home Products Type 1 Surge Protection Device

Type 1+2+3 25kA 275V SPD 2 Poles Type 1 Surge Protector Lightning Protection

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-25M 2P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Surge Protector	Safety Standard:	IEC61643-1
Uc:	275v	Lightning Impulse Current:	25kA
Nominal Discharge Current:	25kA	Max. Discharge Current:	100kA
Voltage Protection:	≤1.3kV	Enclosure Material:	Thermal Plastic UL94-V0
Weight (g):	500	Color:	White
Highlight:	2 poles type 1 surge protector , 25kA type 1 surge protector , 25kA single phase surge arrester

Type 1+2+3 25kA Power AC Surge Protection 275V SPD 2 poles Single Phase

Type 1+2+3 25kA Power AC Surge Protection Feature:

1) High energy surge protection, ns response speed

2) Low price surge protection device (SPD)

3) Remote alarm interface

4) Type 1+2+3 or Class I+II+III test level

5) High flame retardant, anti-corrosion

6) 1 Pole/2 Pole/3 Pole/4 Pole SPD for options

7) The built-in flash interrupter device

Technology characteristic:

	BR-25M 2P
SPD classification according to EN61643-11 within 5M	Type 1 + Type 2 + Type 3
SPD classification according to IEC61643-11 within 5M	Class I + Class II + Class III
Max. continuous operating a.c. voltage Uc	275V
Voltage protection level Up	≤1.3kV
Lightning impulse current (10/350us) Iimp	25kA
Nominal discharge current (8/20us) In	25kA
Maximum discharge current (8/20us) Imax	100kA
Combined impluse Uoc	20kV
Response time tA	≤25ns
Test standard	IEC61643-1
Operating temperature range Tu	-40℃—80℃
Relative humudity(25°C)	≤95%
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0

Dimension:

Type 1+2+3 25kA 275V SPD 2 Poles Type 1 Surge Protector Lightning Protection 0

Tips: What is a surge protection device?

• The surge protection device (SPD) is an electronic device that provides a protection for electrical equipment, communication network etc. from the effect of surges. When a current spike or voltage surge suddenly occurs in an electrical circuit or a communication line due to external interference, the SPD can conduct the shunt in a very short time, thereby avoiding the damage of the surge to other equipment in the circuit.

• Surge protective devices are designed to minimize the effects of the indirect and direct lightning or other transient overvoltage surges, suitable for surge protection in residential, tertiary industrial and other industrial applications. SPD has several protection modes: L-L, L-G, L-N, N-G and its combinations.

• The SPD surge protector is an indispensable device for lightning protection in the electronic equipment. Its role is to restrict the transient overvoltage that enters the power line and signal transmission line to the voltage range that the device or system can withstand, or to discharge powerful lightning current into the ground, thus to protect the equipment or systems from shocks.

Our Services:

• Reply inquiry within 24 hours.

• Answer your detailed question.

• Freight forwarder: faster, safer, and convenient.

• Please kindly inform us which item you are interested in so that the reasonable price could be provided soon.

Company Information:

Britec is a factory, specializing in SPDs, located in Yueqing, Zhejiang, China. With advanced technology, our products have been authorized by TUV Rhineland, and CE successfully. We adheres to self R&D, strict detection standards and perfect detection system, modernization management approaches and excellent talent teams, insist on being professional,large-scale brand.

Type 1+2+3 25kA 275V SPD 2 Poles Type 1 Surge Protector Lightning Protection 1

Certification:

Product process:

Shipping:

FAQ:

Q1: How long is the delivery time?
A: Normally 20 working days after received deposit, we have our own factory, the delivery time can be adjust flexible.

Q2: What is the warranty for the surge protection?
A: Two years.

Q3: What is the payment terms?
A: T/T, L/C, Paypal, etc.

Q4: How about the products quality?
A: Our products have got CE, CB, TUV certificates.

Q5: Is it OK to print my logo on lightning arrester?

A: Yes. Please inform us formally before our production.
