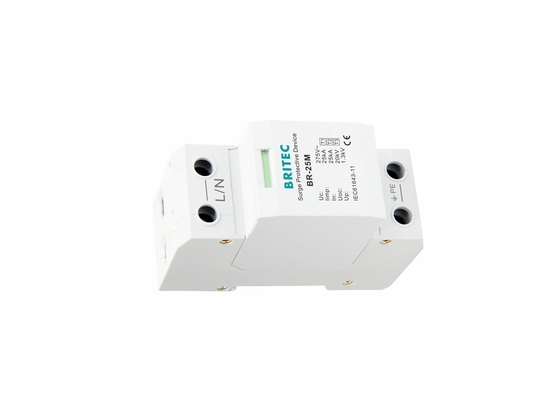

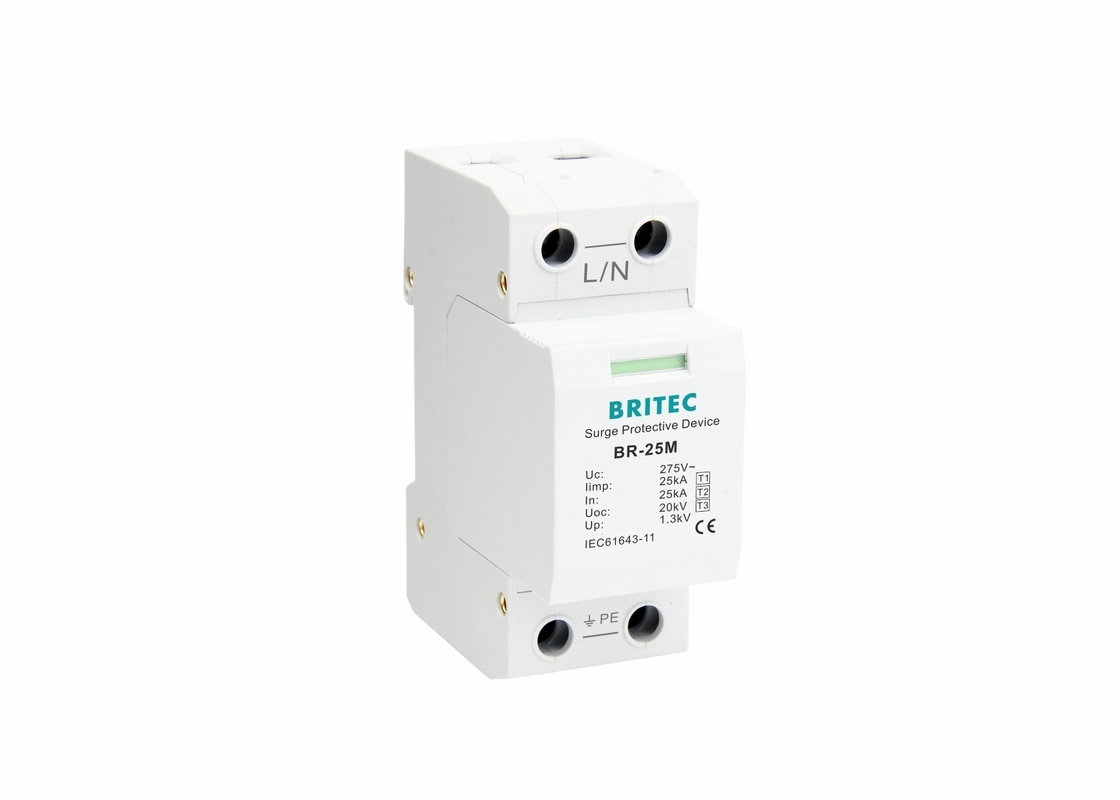

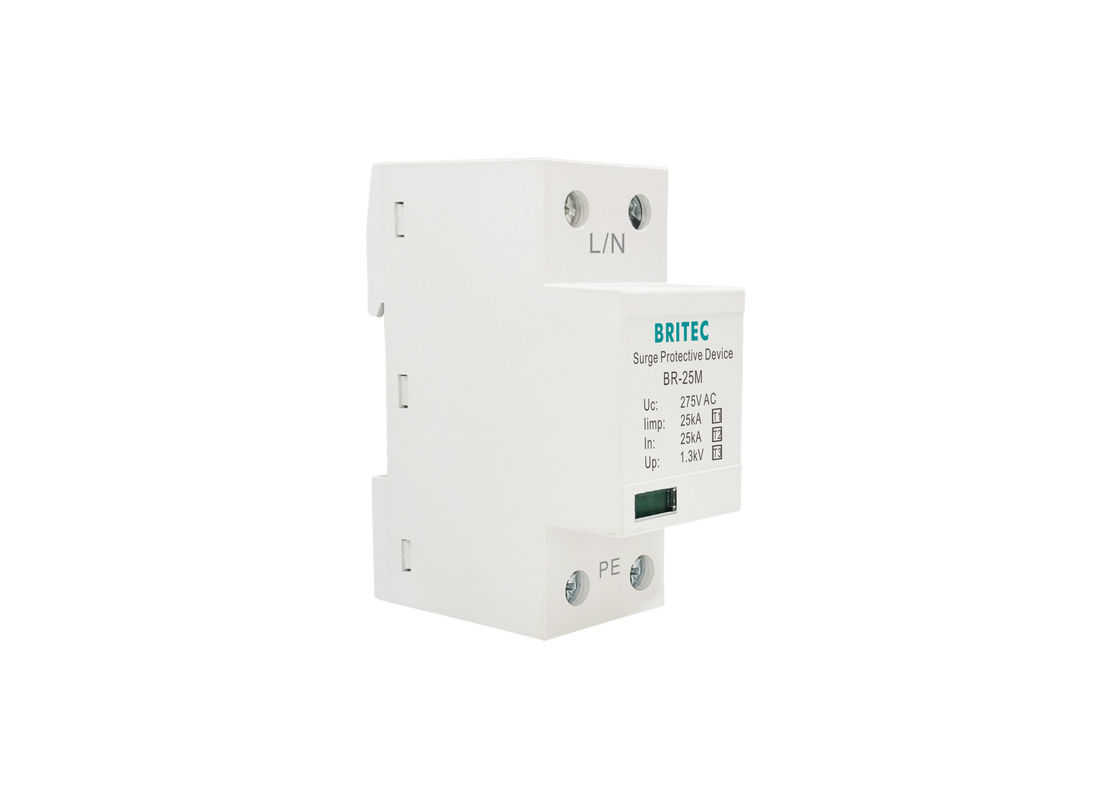

Type 1+2+3 Surge Protection Devices 25kA 1 Pole AC Surge Protector

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-25M 1P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Product Name:	Surge Protective Device	Standard:	IEC / EN 61643-11
Pole Number:	1P	Uc:	275V
Iimp:	25kA	In:	25kA
Imax:	100kA	Material:	Plastic
Usage:	Low Voltage	Warranty:	2 Years
High Light:	1 pole AC Surge Protector , 25kA AC Surge Protector , 25kA type 1 surge arrester

Type 1+2+3 Surge Protection Devices 25kA AC Surge Protector 1-pole with MOV Technology

Type 1+2+3 Surge Protection Devices 25kA AC Surge Protector Feature:

• The BR-25M 1P is an Type 1+2+3 AC surge protector device designed to protect at the entrance of the electrical installation.

• There is a thermal cutoff member inside the protective device, when the device is over-current or over-voltage, the thermal cutoff member will automatically separate from the surge protective device from the electrical network, and the indication window will turn red from green.

• This SPD is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (e.g.: buildings equipped with lightning rods).

• According to EN 61643-11 & IEC 61643-1

• The BR-25M 1P is one-pole SPD.

Type 1+2+3 Surge Protection Devices 25kA AC Surge Protector Technology Characteristic:

	BR-25M 1P
SPD classification according to EN61643-11 within 5M	Type 1 + Type 2 + Type 3
SPD classification according to IEC61643-11 within 5M	Class I + Class II + Class III
Max. continuous operating a.c. voltage Uc	275V
Lightning impulse current (10/350us) Iimp	25kA
Nominal discharge current (8/20us) In	25kA
Maximum discharge current (8/20us) Imax	100kA
Combined impluse Uoc	20kV
Voltage protection level Up	≤1.3kV
Response time tA	≤25ns
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermal plastic UL94-V0
Degree of protection	IP20

Dimension:

Type 1+2+3 Surge Protection Devices 25kA 1 Pole AC Surge Protector 0

Type 1+2+3 Surge Protection Devices 25kA AC Surge Protector Application:

• Used in AC power line of house, bank, telecom tower and so on.

• Suitable as the first step of protection in incoming power supply panels and areas with greater exposure to the atmosphere, where installations are usually provided with an external lightning protection system.
