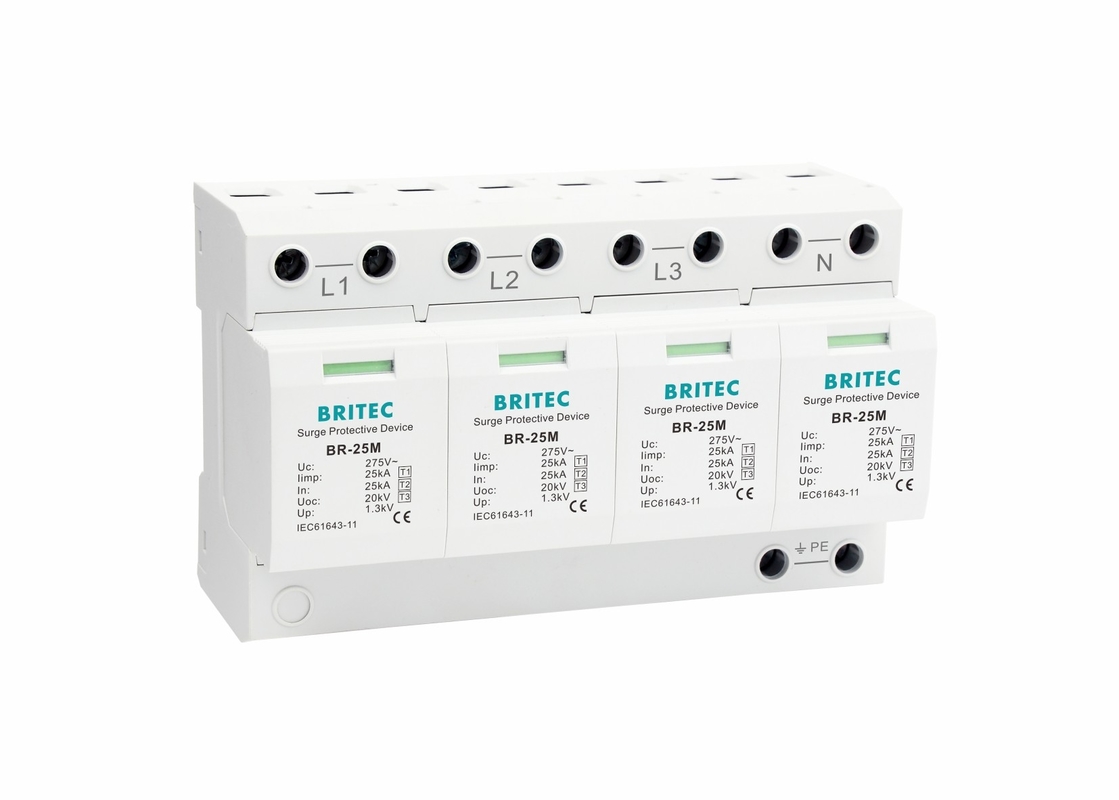

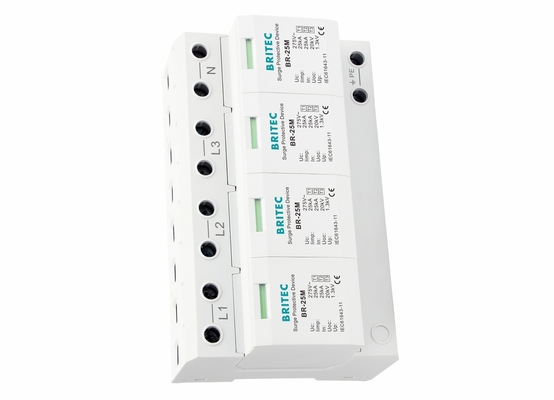

Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic Structure

Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic Structure

  • Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic  Structure
  • Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic  Structure
Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic  Structure
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-25M 4P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Surge Protection Device Class Standard: Type 1+2+3
Uc: 275V Iimp: 25kA
Poles: 4P Protection Class: IP20
Operating Temperature: -40℃—80℃ Material: Thermal Plastic UL94-V0
Transport Package: Carton Weight (g): 1000
High Light:

4 Pole type 1 surge protector

,

Thunder Arrester type 1 surge protector

,

4P type 1 surge arrester

Type 1+2+3 Surge Thunder Arrester 4 Pole Surge Protector Surge Protection Device​



Type 1+2+3 Surge Thunder Arrester 4 Pole Surge Protector Presentation:

The BR-25M 4P is a Type 1+2+3 SPD designed to protect AC power line at the main switchboard.
It is suitably used in the TN-S power supply system of AC 50/60Hz.
High protection level, guaranteeing maximum protection efficiency, an absence of follow and leakage currents, a simplification of use and a maximum lifetime.
It is designed according to IEC61643-1, GB18802.1
BR-25M series available in multipolar versions to protect single or 3-phase AC networks, this makes them the best surge protection solution for Type 1 requirements.



Type 1+2+3 Surge Thunder Arrester 4 Pole Surge Protector Technology characteristic:



  BR-25M 4P
SPD classification according to EN61643-11 with 5M Type 1 + Type 2 + Type 3
SPD classification according to IEC61643-11 with 5M              Class I + Class II + Class III
Rated operating voltage                                                    Un 220V
Max. continuous operating a.c. voltage                             Uc 275V
Voltage protection level                                                     Up ≤1.3kV
Lightning impulse current (10/350us)                             Iimp 25kA
Nominal discharge current (8/20us)                                   In 25kA
Maximum discharge current (8/20us)                            Imax 100kA
Response time                                                                   tA ≤25ns
Combined impluse                                                          Uoc 20kV
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
Max. backup fuse 315A gG
Operating temperature range                                            Tu -40℃—80℃
Relative humudity(25°C) ≤95%
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0



Dimension:



Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic  Structure 0



Type 1+2+3 Surge Thunder Arrester 4 Pole Surge Protector Product Details Show:

Maximum current of endure the lightning stroke 100KA.
Time of response<25ns.
The color of visible window shows operating status, green means normal, red means abnormal.


About us:


Wenzhou Britec Electric Co.,Ltd as a manufature established in year 2003, specilized in Surge arrester with more than 17 years. We are a high-tech enterprise of Zhejiang province, also passed ISO 9001.


Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic  Structure 1

Our certification:

Thunder Arrester 4 Pole Type 1 Surge Protector Thermal Plastic  Structure 2

FAQ:


Q1: Can the price be negotiated?
  A: Yes, the price is negotiable. It can be changed according to your quantity.



Q2: Are your surge protector supported for customization?
  A: Yes, of course.



Q3: How can you ensure your After-sales Service?
  A: We do it in strict accordance with the contract, so that customers can buy our products with confidence.



Q4: Are you a trading company or a manufacturer?
  A: We are manufacturer and exporter in the industry, so we can supply product for you with Factory Price.
