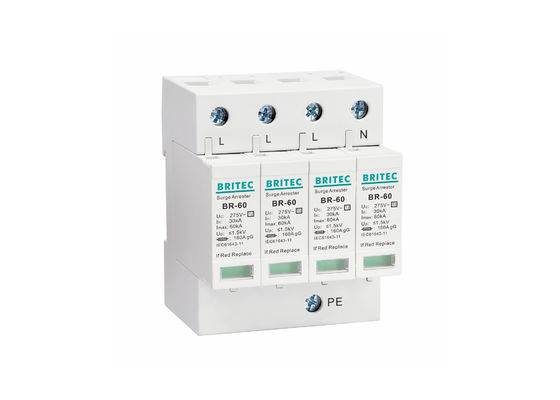

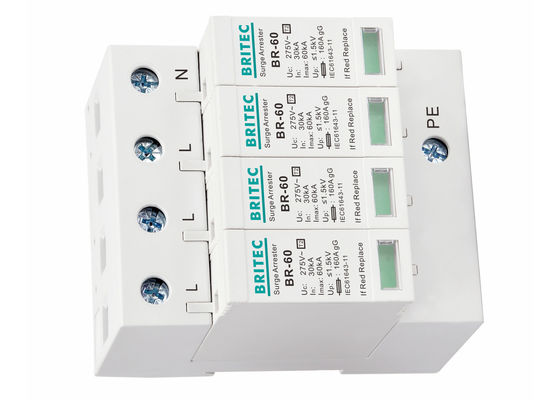

Name: Three Phase 60ka AC Power Type 2 Surge Protector Lightning Arrester
Brand: BRITEC
SKU: BR-60 4P
Rating: 5 (182 reviews)

Home Products Type 2 Surge Protection Device

Three Phase 60ka AC Power Type 2 Surge Protector Lightning Arrester

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Certification:	CE
Model Number:	BR-60 4P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	50000 Piece/Pieces Month

Contact Now

Detailed Product Description

Item Name:	Lightning Arrestor	Class:	Class II
Safety Standard:	IEC61643-1	Pole Number:	4P
Uc:	AC 275V	In:	30kA
Imax:	60kA	Size:	Small
Connections:	TN-S System	Installation:	Parallel Arrester
High Light:	60ka type 2 surge protector , AC Power type 2 surge protector , 60ka type 2 surge arrester

Three Phase Lightning Protector 60ka Surge Arrester Electrical AC Power Surge Protective Unit

Three Phase Lightning Protector 60ka Surge Arrester Product description:

• BR-60 4P surge protective device (hereinafter referred to as SPD) are suitable for AC 50/60Hz, TN-S power supply system.

• Indicating window: Green: normal function; Red: functionless, immediate replacement required.

• It protect to indirect and direct lightning effect or other transient over voltage.

• This Class C surge protective device consisting of a base part and MOV plug-in protection modules.

• SPD design according with GB18802.1/IEC61643-1 standard.

Three Phase Lightning Protector 60ka Surge Arrester Technology characteristic:

	BR275 60 4
SPD classification according to EN61643-11	Type 2
SPD classification according to IEC61643-11	Class II
Nominal Voltage Un	220/230/400Vac
Max. continuous operating a.c. voltage Uc	275V
Nominal discharge current (8/20us) In	30kA
Max. discharge current (8/20us) Imax	60kA
Voltage protection level Up	≤1.2kV
Response time tA	≤25ns
Power supply system	TN-S system
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure materail	Thermal plastic UL94-V0
Operating temperature range Tu	-40℃—80℃
Degree of protection	IP20
Remote Signalling	Optional (Depends customer require)

Dimension:

Three Phase Lightning Protector 60ka Surge Arrester Application:

• BR-60 series surge protective devices suitable for C grade surge protection, which protects the electrical network not shocked by the thunder.

• Suitable for lightning and surge protection in AC 50/60Hz, 220/380V.

• Used in AC power line of house, bank, telecom tower and so on.

Shipping & Payment:

About us:

Wenzhou Britec Electric Co., Ltd is ISO and CE certificated manufacturer, we are suppliers of SPDs. We are specialized in surge protection device. We can offer lightning arrester with specifications and uses according to clients' requirements. Our company has carried out a completed management system of production, scientific research and sales service. Our products are widely used in various electric power stations, electric power plants, factories and electric power systems. Warmly welcome worldwide customers to cooperate with us. You will be deserved with the high qualified products, favorable price, on-time delivery and our best service.

Three Phase 60ka AC Power Type 2 Surge Protector Lightning Arrester 3

Certification:

FAQ:

1.Q: Are you the factory or trading company?

A: We are factory who was founded in 2003.

2.Q: What's your main products?
A: All kinds for surger protection products.

3.Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.

4.Q: What’s your payment terms?
A: We usually accept T/T, Paypal etc.

5.Q: How can you control your quality?
A: For each production processing, we have complete QC system. After production, all the goods will be tested according to related standards.
