AC SPD 2 Pole MOV 60ka Din Rail Type 2 Surge Protection Device

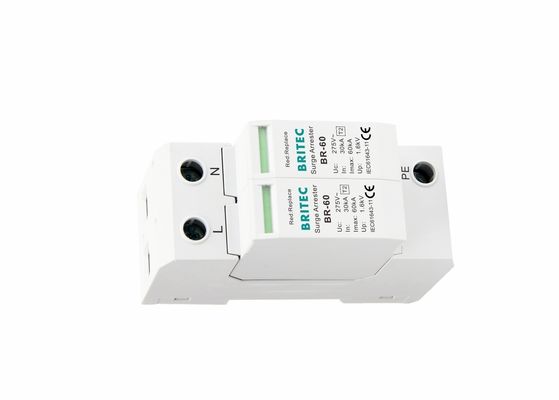

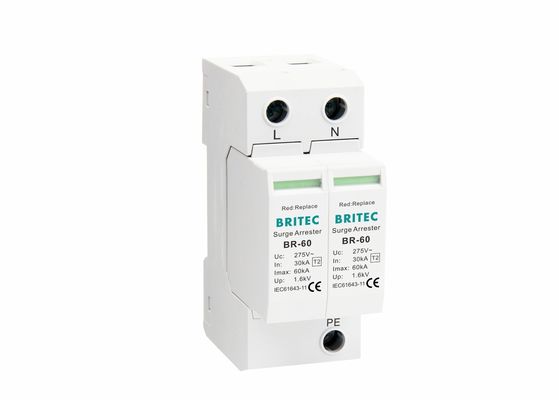

Large Image : AC SPD 2 Pole MOV 60ka Din Rail Type 2 Surge Protection Device

Product Details:

Place of Origin:	China
Brand Name:	BRITEC
Model Number:	BR-60 2P

Payment & Shipping Terms:

Minimum Order Quantity:	100 Piece/Pieces
Packaging Details:	EXPORT PACKING
Delivery Time:	Shipped in 25 days after payment
Payment Terms:	L/C, D/A, T/T, Western Union
Supply Ability:	100000 Piece/Pieces Month

Contact Now

AC SPD 2 Pole MOV 60ka Din Rail Type 2 Surge Protection Device

Description

Item Name:	Surge Arrester	Safety Standard:	IEC61643-11
Pole Number:	2P	Uc:	150v/275v/320v/385v/440v
In:	30kA	Imax:	60kA
Up:	≤1.5kv	Dimension:	2 Mods
Warranty:	5 Years	Keyword:	Lightning Protection
Highlight:	MOV Type 2 Surge Protection Device , 60ka 2 pole surge protector , AC SPD 2 pole surge protector

AC SPDs 2 Pole MOV 60ka Lightning Protection Feature:

• High Surge Energy capacity protects downstream loads from voltage spikes and line transients.

• Our BR-60 DIN Rail AC Surge Protective Devices are connected in parallel and use an MOV to clamp high-voltage surges.

• Thermal protection circuit disconnects load under high energy absorption events.

• This device is primarily used in the main electrical panel for the protection of 1-phase systems.

• Fail safe/self-protection design.

• Compact modular design

• Visual red-green indicator alerts when surge module needs replacement.

• Certified: IEC61643-11:2013, Class II.

• Remote alarm contact.

• Touch Safe, IP20 Degree of Protection

• Surge module plugs into DIN Rail mount base assembly for easy replacement in field.

• Double thermal disconnection device, provide more reliable protection.

• Two pole device provides full protection.

AC SPDs 2 Pole MOV 60ka Lightning Protection Technology characteristic:

	BR-60 2P
SPD classification according to IEC61643-11	Class II
Max. continuous operating a.c. voltage Uc	275V
Voltage protection level Up	≤1.5kV
Max. discharge current (8/20us) Imax	60kA
Nominal discharge current (8/20us) In	30kA
Response time tA	≤25ns
Test Stardard	IEC61643-11
Operating temperature range Tu	-40℃—80℃
Cross-section area (Min.)	4mm²
Cross-section area (Max.)	35mm²
For mounting on	35mm Din rail
Enclosure material	Thermoplastic UL94-V0

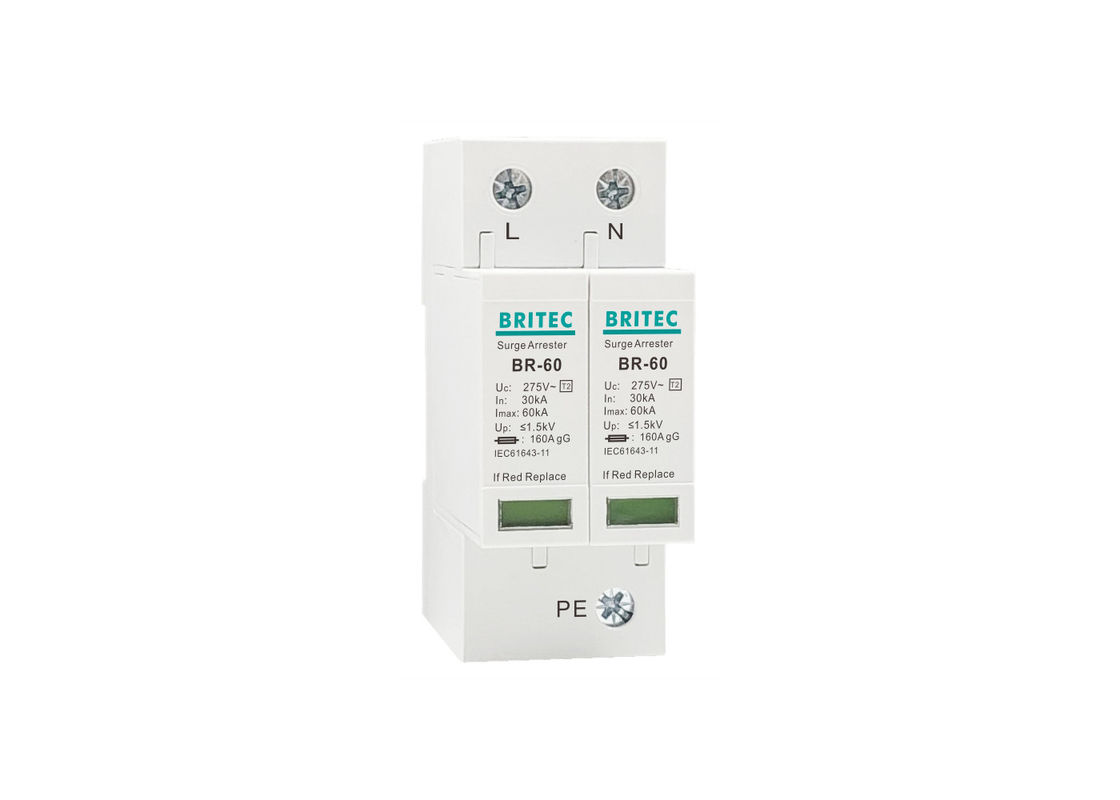

SPD size & type 2 spd installation:

AC SPD 2 Pole MOV 60ka Din Rail Type 2 Surge Protection Device 0

AC SPDs 2 Pole MOV 60ka Lightning Protection Applicable Scope:

It can be installed in the low voltage power distribution cabinet/box of buildings; to protect power equipment in the single phase power distribution system between LPZ1 and LPZ2. For example, low voltage general electricity Cabinet and/or distribution board of buildings, outdoor electricity cabinet/distribution box, and any circumstance need to record the lightning leakage, power supply system: TN.

We can provide products with the same parameters as eaton spd type 2.

Company Information:

Wenzhou Britec Electric Co.,Ltd. established in 2003 located in Yueqing City, Zhejiang Province. We are an enterprise focusing on SPD production, sales, and R&D. Our company currently provides up to 100 kinds of surge protective Device SPD. Such as: AC Power Surge Protection Device SPD, DC Surge protective Device, Data surge protection, LED lightning protection etc. We also provide surge protectors according to customers' requirements.

Shipping:

Shipping by air, sea, express or upon clients' demands.

FAQ:

Q1: How long is your products warranty?
A: The warranty period of our products is 5 Years.

Q2: What is the service offered by company?
A: We have the professional enginer team which can design and develop the mold to arrive different customer requirement. We also have the sales team to offer good service from pre-sale to after-sale.

Q3: Are you trading company or manufacturer?
A: We are factory.
