|Place of Origin:||China|
|Minimum Order Quantity:||200 piece / pieces|
|Packaging Details:||EXPORT PACKING|
|Delivery Time:||15-30 days after payment|
|Supply Ability:||50000 pieces per month|
|Test Standards:||EN61643-11 / EN50539-11||Type:||2|
|Application:||DC Power System||Module:||2P|
|Max. Voltage:||600V||Nominal Discharge Current:||20kA|
|Max. Discharge Current:||40kA||Up:||≤2.6kV|
|Operating State/fault Indication:||Green/red||Port:||Ningbo/Shanghai|
SPD pv surge arrester,
600V pv surge arrester,
600V Surge Protection Device

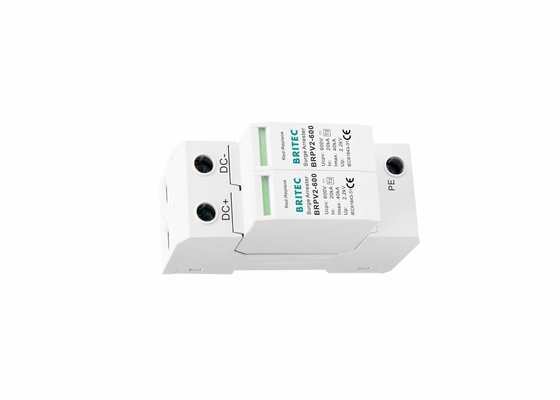

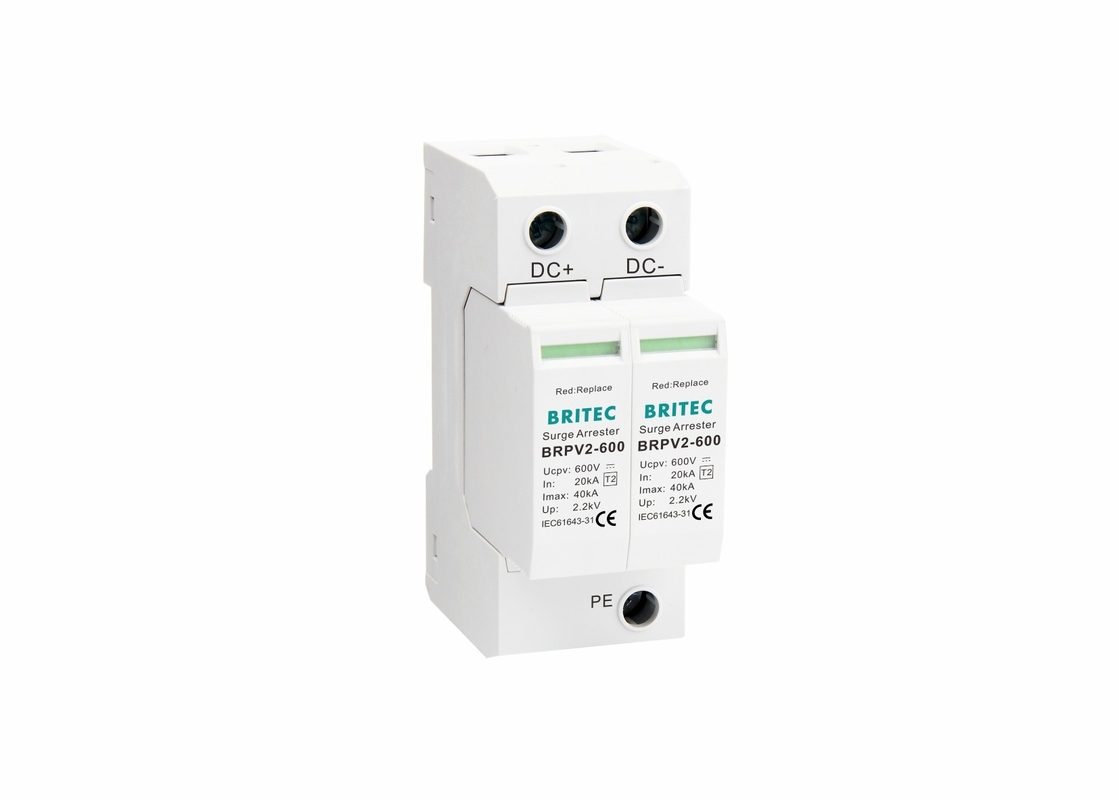

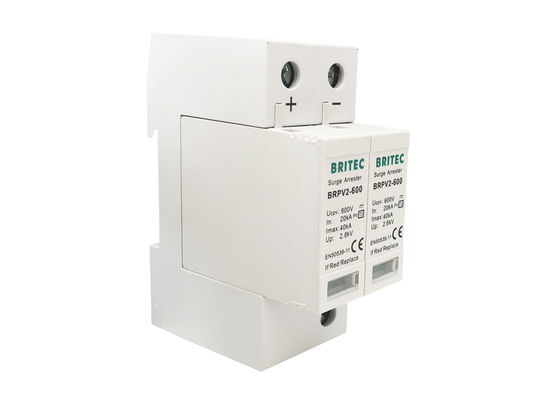

600V Surge Protection Device PV Surge Arrester SPD Surge Protective Device 2P
600V Surge Protection Device PV Surge Arrester Parameters:
|SPD classification according to EN61643-11||Type 2|
|SPD classification according to EN50539-11||Class II|
|Max. continuous operating dc voltage Ucpv||600V|
|Nominal discharge current (8/20us) In||20kA|
|Max. discharge current (8/20us) Imax||40kA|
|Voltage protection level Up||≤2.6kV|
|Response time tA||≤25ns|
|Operating temperature range Tu||-40℃-80℃|
|Operating state / fault indication||green / red|
|Cross-section area (Min.)||4mm2|
|Cross-section area (Max.)||35mm2|
|For mounting on||35mm Din rail|
|Enclosure material||Thermal plastic UL94-V0|
|Degree of protection||IP20|
|Order code(With remote signal)||B8015|
• 17 years global leading profession manufacture of electrical products surge arrester.
• All products will be well packed before shipping.
• Standard packaging, and you can also tell us your own requirements on packaging.
• Faster delivery.
• Individually Tested Prior to Shipment.
Why need pv surge arrester?
Most of the solar modules are very regularly exposed to lightnings and overvoltages, where lighting occurrences are frequent, unprotected PV systems can suffer repeated and significant damage to key components. And these systems represent a significant investment cost, system downtime and the loss of revenue. PV modules, DC cabling, inverters, AC cabling, as well as monitoring systems must all be protecting as part of a in all-inclusive effort to mitigate the damaging effects of lightning and surges. The use of adapted surge protections is then highly recommended.
Wenzhou Britec Electric Co., Ltd. is a professional SPD manufacturer, located in Yueqing, Zhejiang, China, Britec is the specialized manufacturer of low voltage surge protection device. With the advanced facility and technology, we make the first-grade products for our customs. At present, Britec has export and import rights, and our products has been sold to more than 50 countries in the world.
Q: Are you Trading Company or Manufacturing Factory?
A: we are a professional manufacture with 17 years production experience and 15 years export experience.
Q: I am interested in your products, could I get sample?
A: We are glad to offer samples.
Q: How about the Delivery time?
A: It is aboout 15-30 days.
Q: How can you guarantee the product quality?
A: We have the quality control system, and it's been followed strictly. All product will be inspected before packing for double checking, no matter where our product deliver to, we will be responsible for its quality, customer's satisfaction is very important for us, it matters whether we have next order.
Q: I'd like to know your Payment terms.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment. About other payment terms, let's make a specific negotiation according to our order situation.
