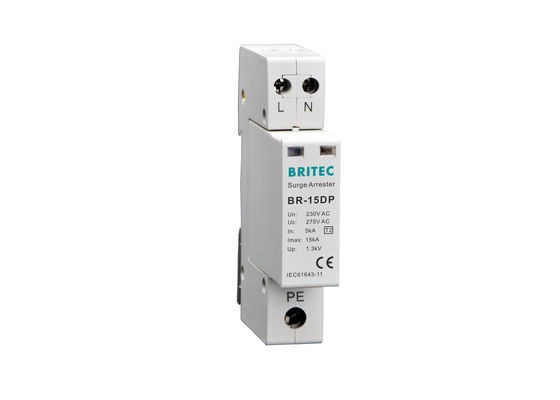

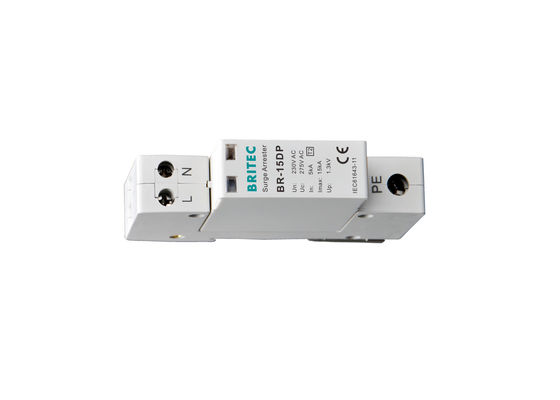

15kA Power Lightning Protection Type 2 Surge Protector Surge Arrester

15kA Power Lightning Protection Type 2 Surge Protector Surge Arrester

  • 15kA Power Lightning Protection Type 2 Surge Protector Surge Arrester
  • 15kA Power Lightning Protection Type 2 Surge Protector Surge Arrester
15kA Power Lightning Protection Type 2 Surge Protector Surge Arrester
Product Details:
Place of Origin: China
Brand Name: BRITEC
Model Number: BR-15DP 275 2P
Payment & Shipping Terms:
Minimum Order Quantity: 100 Piece/Pieces
Packaging Details: EXPORT PACKING
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 50000 Piece/Pieces Month
Contact Now
Detailed Product Description
Item Name: Lightning Surge Arrester Type: Type2
Pole Number: 2P Uc: 275 V AC
Max Discharge Current(Ka): 15kA Material: Thermalplastic UL94-VO
Protection Level: No More Than 1300V Tu: -40℃-80℃
Application: Surge Protective Device Is Suitable For Single-phase System Warranty: 2 Years
Highlight:

15kA surge outlet protector

,

Type 2 surge outlet protector

,

15kA power saving surge protector

15kA Secondary Power Surge Protector Surge Arrester Lightning Protector



15kA Secondary Power Surge Protector Feature:

Devices have indicators to advise end of life of the device
BR-15DP 2P is the Type 2/Class II devices protecting against induced voltage surges (8/20 μs).
The device meets the requirements of the IEC 61634-1 and EN 61643-11 standards


15kA Secondary Power Surge Protector Technology characteristic:



Specification BR-15DP 275 2P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 2
SPD dassification according to IEC61643-11 Class II
Max continuous 0perating a.c. voltage           Uc 275V
Max. discharge current (8/20µs)                  Imax 15kA
Norminal discharge current (8/20µs)                In 5kA
Voltage protection level                                   Up ≤1.3kV
Response time                                                 tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range                          Tu -40℃—80℃
Cross-section area (Min.) 2.5mm²
Cross-section area (Max.) 16mm²
Enclosure material Thermal plastic UL94-V0



Dimension:



15kA Power Lightning Protection Type 2 Surge Protector Surge Arrester 0



15kA Secondary Power Surge Protector Installation:

Installation as defined in the standard is simple enough, the device is connected with cables to and from the unit no longer than a meter in total, and a short path to earth will ensure the effective discharge of the surge to earth.
If a Type 2 SPD is installed and cable lengths are less than 10m, then there is no longer a requirement to fit Type 3 surge protected extension leads. If greater than 10m then type 3 surge protection should be fitted.
For the most part a simple two pole device for single phase TT or TNS will be enough. In TNCS systems a single pole unit may be sufficient as only the live conductor comes to the property that can bring a threat from outside influences affecting that supply.

Types of Surge Protection Devices (SPD):

Type 1 SPD:
The Type 1 SPD is recommended in the specific case of service-sector and industrial buildings, protected by a lightning protection system or a meshed cage. It protects electrical installations against direct lightning strokes. It can discharge the back-current from lightning spreading from the earth conductor to the network conductors. Type 1 SPD is characterized by a 10/350 µs current wave.

Type 2 SPD:
The Type 2 SPD is the main protection system for all low voltage electrical installations. Installed in each electrical switchboard, it prevents the spread of overvoltage in the electrical installations and protects the loads. Type 2 SPD is characterized by an 8/20 µs current wave.

Type 3 SPD:
These SPDs have a low discharge capacity. They must therefore mandatorily be installed as a supplement to Type 2 SPD and in the vicinity of sensitive loads. Type 3 SPD is characterized by a combination of voltage waves (1.2/50 μs) and current waves (8/20 μs).



Our service:



• Pre-sale Services:

  1. Provide free consulting, to resolve the confusion from customers.

  2. Mining and carefully study customer's needs, provide detail and suitable design solutions.



• In-sale Services:

  1. Try best to meet the reasonable demands by customers.

  2. Cooperate friendly with client and satisfy our clients with best quality SPD.



• After-sale Services:

  1. Provide 2-year guarantee for products.

  2. A complete after-sale service system to help customers resolve the problems during the using time.



Company profile:



Wenzhou Britec Electric Co., Ltd. is a professional engaged in SPD products research and development, design, production and service in the integration of modern professional surge protection production enterprises, production base is located in Yueqing, Zhejiang, China. With OEM/ODM high standard production workshop, has a new standard of high-end production equipment, perfect supporting factory layout is reasonable, the spacious production workshop, according to the international surge protector factory standard production design, is the domestic strong r & d manufacturers.



15kA Power Lightning Protection Type 2 Surge Protector Surge Arrester 1



Shipping:



15kA Power Lightning Protection Type 2 Surge Protector Surge Arrester 2

Our certifications:



15kA Power Lightning Protection Type 2 Surge Protector Surge Arrester 3



FAQ:



Q1: What is MOQ?

  A: 100pcs.



Q2: How to ship?

  A: By sea, by air or express.



Q3: How to place a order?

  A: Place order with saler; Make payment for deposit; Goods are finished, inform buyer to make payment for balance; Delivery.



Q4: What's your payment terms?

  A: For samples, T/T 100% as deposit. For bulk orders, T/T 30% as deposit and T/T 70% before delivery.
